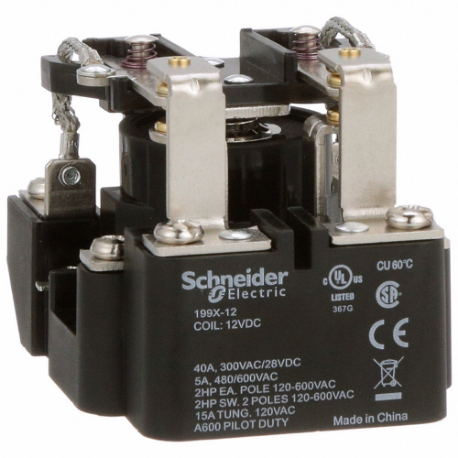

SCHNEIDER ELECTRIC 199X-12 Open Power Relay, Surface Mounted, 40 A Current Rating, 12V DC, 8 Pins/Terminals, DPDT
Item: CU2CJTModel: 199X-12Cross Ref: 6CUU7
7 In Stock
Ships within 2 days via
10.00% off
€73.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Open Power Relay |
| Ac Contact Rating | 5A @ 480/600V15A @ 120V40A @ 300V |
| Base Shape | Octal |
| Base Type | Panel |
| Body Depth | 1 2/5" , 3 3/25" |
| Body Height | 2.31" , 3.13" |
| Body Width | 2 1/2" |
| Coil Resistance | 70 ohms |
| Coil Voltage | 12V DC |
| Compatible Manufacturer Model Number | 50-1289-P |
| Contact Form | DPDT |
| Contact Rating (ac) | 5A @ 480/600V, 15A @ 120V, 40A @ 300V |
| Current Rating | 40A |
| Dc Contact Rating | 40A @ 28V |
| Dielectric Strength | 1500V AC Between Open Contacts, 2200V AC Between Coil And Contact, 2200V AC Between Poles |
| Electrical Connection | Screw |
| Electrical Connection - Power Relay | Screw |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Open |
| Features | Riveted Construction |
| Hp @ 120v | 2 hp |
| Hp @ 240v | 2 hp |
| Mfr. Series | 199 Power Series |
| Motor Rating | Yes |
| Mounting | Panel |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Number Of Pins/terminals | 8 |
| Number Of Poles | 2 |
| Overall Depth | 2.31" |
| Overall Height | 2.31" |
| Power Consumption - Relay | 10 W |
| Push-to-test Button | No Test Button |
| Relay Mounting | Surface |
| Relay Mounting Style | Surface |
| Response Time | 30 ms |
| Sealing | Open |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 7.95 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 6.35 |
| Country of Origin | CN |
Product Variants
| Product | Model | Number Of Pins/terminals | Contact Form | Current Rating | Coil Voltage | Hp @ 120v | Hp @ 240v | Electrical Operating Durability | Number Of Pins | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8501CDO22V51 | 8 | DPDT | 20A | 12V DC | - | - | - | 8 | - | RFQ
|
 |
8501CO7V08 | 6 | Dpst-No | 30A | 208V AC | 1 1/2 hp | 1 1/2 hp | - | 6 | €139.40 | |
 |
8501CDO16V64 | 8 | DPDT | 30A | 220V DC | 1 1/2 hp | 1 1/2 hp | - | - | - | RFQ
|
 |
8501CO8V29 | 4 | SPST-NC | 30A | 480V AC | 2 hp | 2 hp | - | - | - | RFQ
|
 |
199ADX-4 | 4 | SPST-NO | 40A | - | 2 hp | 2 hp | 50000 | - | €70.70 | |
 |
199AX-4 | 5 | SPDT | - | - | 2 hp | 2 hp | 50000 | 5 | €80.42 | |
 |
199AX-9 | 6 | Dpst-No | 40A | - | 2 hp | 2 hp | 50000 | - | €80.42 |
