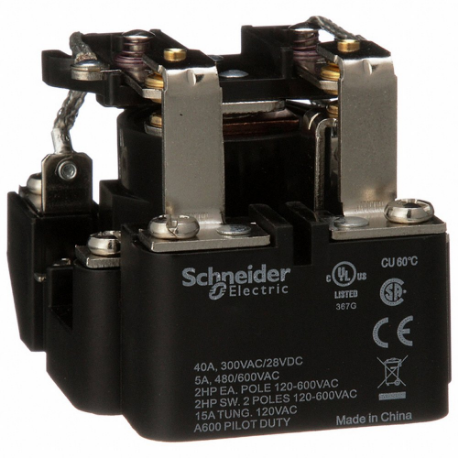

SCHNEIDER ELECTRIC 199AX-10 Open Power Relay, Surface Mounted, 40 A Current Rating, 240VAC, 6 Pins/Terminals, DPST-NO
Item: CU2CKHModel: 199AX-10Cross Ref: 6CUT2
7 In Stock
Ships within 2 days via
13.00% off
€58.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Open Power Relay |
| Ac Contact Rating | 5A @ 480/600V15A @ 120V40A @ 300V |
| Amps | 40A |
| Coil Voltage | 240V AC |
| Contact Form | DPST, NO |
| Contact Rating (ac) | 5A @ 480/600V, 15A @ 120V, 40A @ 300V |
| Dc Contact Rating | 40A @ 28V |
| Dielectric Strength | 1500V AC Between Open Contacts, 2200V AC Between Coil And Contact, 2200V AC Between Poles |
| Electrical Connection | Screw |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 50000 |
| Hp @ 120v | 2 hp |
| Hp @ 240v | 2 hp |
| Mfr. Series | 199 Power Series |
| Motor Rating | Yes |
| No. Of Pins/terminals | 6 |
| Product Datasheet | schneider-electric-199ax-10.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Surface |
| Sealing | Open |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 6.32 |
| Ship length (cm) | 6.32 |
| Ship width (cm) | 6.35 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
