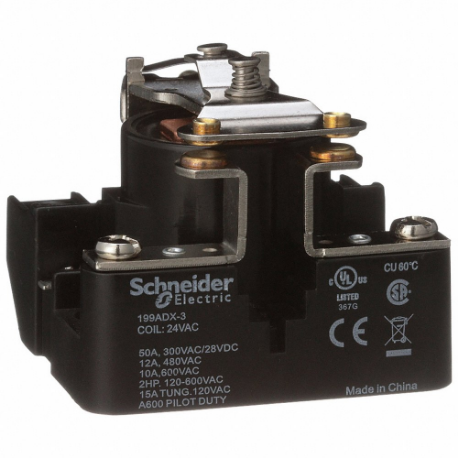

SCHNEIDER ELECTRIC 199ADX-3 Open Power Relay, Surface Mounted, 50 A Current Rating, 24VAC, 4 Pins/Terminals, SPST-NO
Get it by Monday, Aug 31
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Open Power Relay |
| Ac Contact Rating | 15A @ 120V50A @ 300V |
| Amps | 50A |
| Base Type | Panel |
| Body Depth | 2 1/4" , 2.43" |
| Body Height | 2.18" , 2.43" |
| Body Width | 2 1/2" |
| Coil Resistance | 12 ohms |
| Coil Voltage | 24V AC |
| Compatible Manufacturer Model Number | 50-1289-P |
| Contact Form | SPST, NO |
| Contact Rating (ac) | 15A @ 120V, 50A @ 300V |
| Contact Rating (dc) | 10A @ 600V, 12A @ 480V, 50A @ 28V |
| Dc Contact Rating | 10A @ 600V, 12A @ 480V, 50A @ 28V |
| Dielectric Strength | 1500V AC Between Open Contacts, 2200V AC Between Coil And Contact, 2200V AC Between Poles |
| Electrical Connection | Screw |
| Electrical Connection Type | Screw |
| Electrical Connection-power Relay | Screw |
| Electrical Operating Durability | 25000 |
| Environmental Protection | Open |
| Features | Riveted Construction |
| Hp @ 120v | 2 hp |
| Hp @ 240v | 2 hp |
| Mfr. Series | 199 Power Series |
| Motor Rating | Yes |
| Mounting | Panel |
| No. Of Pins | 4 |
| No. Of Pins-relay | 4 |
| No. Of Pins/terminals | 4 |
| No. Of Poles | 1 |
| Overall Depth | 2.18" |
| Overall Height | 2.18" |
| Power Consumption-relay | 10 VA |
| Product Datasheet | schneider-electric-199adx-3.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting | Surface |
| Relay Mounting Style | Surface |
| Response Time | 30 ms |
| Sealing | Open |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 6.17 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 6.35 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
