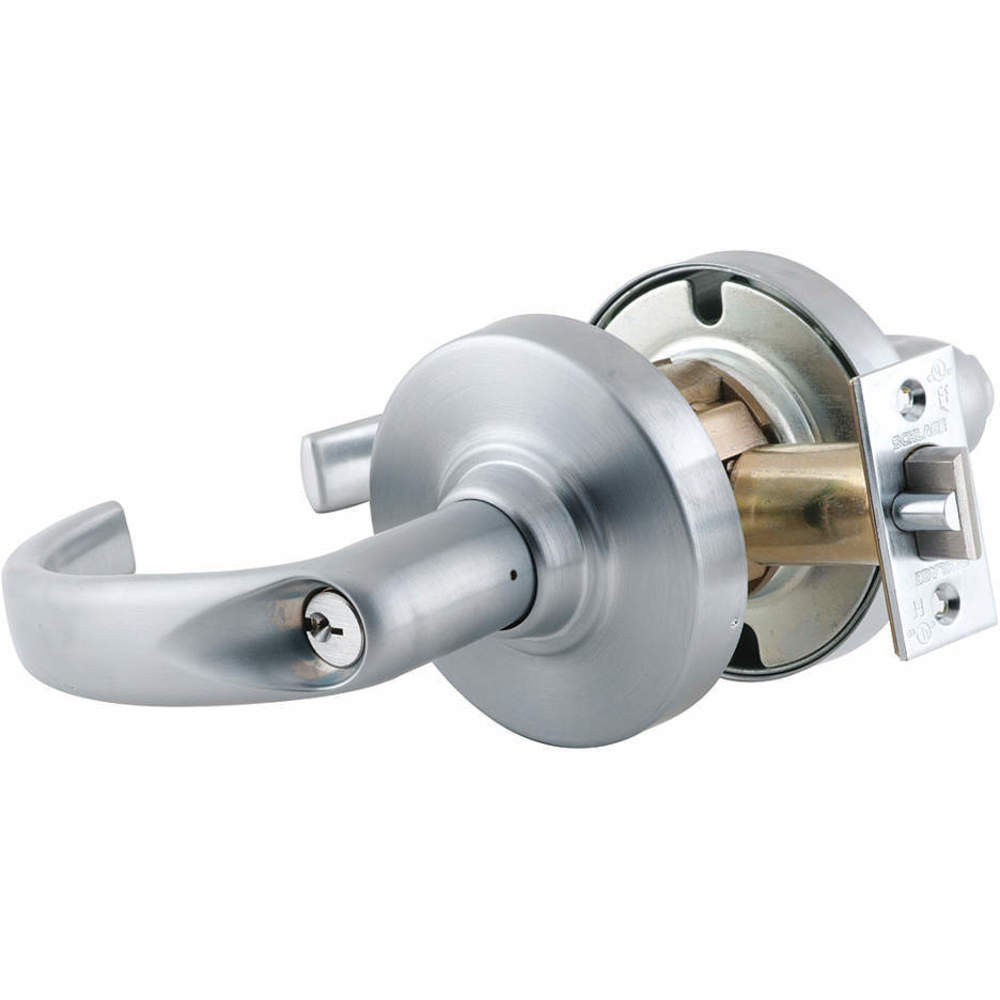

SCHLAGE ND80PD C123 SPARTA 626 Heavy Duty Lever Lockset Sparta Grade 1
Item: AC7BLKModel: ND80PD C123 SPARTA 626Cross Ref: 36Z350
7 In Stock
Ships within 2 days via
10.00% off
€919.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lever |
| Ada Compliant | Yes |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Storeroom |
| Backset | 2 3/4" |
| Bolt Type | Dead Latch |
| Cylinder Core Type | Conventional Core Cylinder |
| Door Thickness - Maximum | 2 1/8" |
| Door Thickness - Minimum | 1 5/8" |
| Features | Snap On Rose |
| Finish | Satin Chrome |
| Fire Rating | 3 hrs. |
| Function | Storeroom |
| General Lockset Function | Storeroom Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Brass, Steel, Zinc |
| Key Material | Nickel Silver |
| Key Type | Keyed Different |
| Keying | Keyed Different |
| Keyway Type | Everest C123 |
| Knob/handle Material | Cast Zinc |
| Ligature Resistance | Not Ligature Resistant |
| Location Type | Commercial |
| Lock Assembly Type | Cylindrical |
| Lockset Function | Storeroom |
| Lockset Function Ansi Code | F86 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Heavy Duty |
| Lockset Style | ND Sparta |
| Lockset Type | Mechanical |
| Mounting Style | Screw In |
| Number Of Keys | 2 |
| Number Of Pins | 6 |
| Performance Duty Rating | 1 |
| Pins | 6 |
| Required Door Thickness | 1 5/8" to 2 1/8" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 3/16" |
| Strike Plate Width | 1 1/4" |
| Strike Type | Curved Lip |
| Style | Sparta |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 2.21 |
| Ship height (cm) | 15.49 |
| Ship length (cm) | 36.32 |
| Ship width (cm) | 22.61 |
| HS code | 8301406030 |
| Country of Origin | US |
Product Variants
| Product | Model | Key Type | Keyway Type | Keying | Function | Strike Dim. | Backset | Style | Visual Indicator Message | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ND10S SPA 613 | Not Keyed | Not Available | Keyed Different | Passage | - | 2 3/4" | Sparta | No Message | €811.18 | |
 |
ND10S SPA 626 | Not Keyed | Not Available | Keyed Different | Passage | 1 1/8" x 2 3/4" | 2 3/4" | Sparta | No Message | €755.38 | |
|
ND10S SPA 626AM | Not Keyed | Not Available | Keyed Different | Passage | 1 1/4" x 4 7/8" | 2 3/4" | Sparta | No Message | €765.07 | |
 |
ND40S SPA 613 | Not Keyed | Not Available | Keyed Different | Privacy | 1 1/4" x 4 7/8" | 2 3/4" | Sparta | No Message | €884.58 | |
 |
ND40S SPA 626 | Not Keyed | Not Available | Keyed Different | Privacy | 1 1/4" x 4 7/8" | 2 3/4" | Sparta | No Message | €840.71 | |
|
ND40S SPA 626AM | Not Keyed | Not Available | Keyed Different | Privacy | - | 2 3/4" | Sparta | No Message | €843.40 | |
 |
ND53BD SPA 626 | Not Keyed | None | Master | - | 1 1/4" x 4 7/8" | 2 3/4" | Sparta | No Message | €916.89 |
