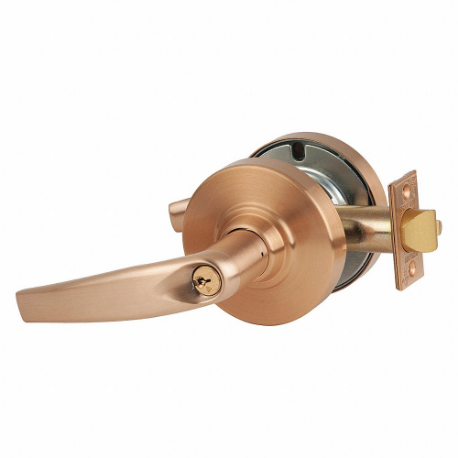

SCHLAGE ND53PD ATH 612 Lever, Grade 1, Nd Straight, Satin Bronze
Item: CT9YXUModel: ND53PD ATH 612Cross Ref: 28XZ43
7 In Stock
Ships within 2 days via
13.00% off
€679.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lever |
| Ada Compliant | Yes |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Entrance |
| Backset | 2 3/4" |
| Bolt Type | Dead Latch |
| Cylinder Core Type | Conventional Core Cylinder |
| Electrical/mechanical | Mechanical |
| Features | Snap-On Rose |
| Finish | Satin Bronze, Clear Coating |
| Fire Rating | 3 hrs. |
| For Use With | Wood, Steel Doors |
| Function | Entry |
| General Lockset Function | Office Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Zinc |
| Handle Type | Lever |
| Included | Hardware |
| Included Core | No |
| Key Material | Brass, Nickel Silver |
| Key Type | Keyed Different |
| Keying | Keyed Different |
| Keyway Type | Schlage SC4 |
| Knob/handle Material | Cast Zinc |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial |
| Lock Assembly Type | Cylindrical |
| Lockset Function Ansi Code | F109 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Heavy Duty |
| Lockset Style | ND Athens |
| Lockset Type | Mechanical |
| Max. Door Thickness | 2 1/8" |
| Min. Door Thickness | 1 5/8" |
| Mortise/cylindrical | Cylindrical |
| Mounting Style | Screw In |
| No. Of Keys | 2 |
| No. Of Pins | 6 |
| Outside Locking Access | Keyway |
| Performance Duty Rating | 1 |
| Pins | 6 |
| Required Door Thickness | 1 3/4" |
| Strike Dim. | 1 1/4" x 4 7/8" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 3/16" |
| Strike Plate Width | 1 1/4" |
| Strike Type | Curved Lip |
| Style | ND Straight |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Max. Door Thickness | Ansi Grade | Min. Door Thickness | Strike Plate Height | Required Door Thickness | Handle Material | Ada Compliant | Strike Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09-138 SL1 630 P | 1 3/4" | Grade 1 | 1 3/8" | 2 1/4" | 1 3/8" to 1 3/4" | Steel | Yes | ANSI | €2,291.11 | |
 |
09-138 SL1 630 BD | 1 3/4" | Grade 1 | 1 3/8" | 2 1/4" | 1 3/8" to 1 3/4" | - | Yes | ANSI | €2,121.66 | |
|
L9465P SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,489.05 | |
|
L9080J SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,287.89 | |
 |
L9010 SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,194.99 | |
|
L9070J SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,387.22 | |
|
L9465BD SL1 630 | 1 3/4" | Grade 1 | 1 3/8" | 4 7/8" | 1 3/8" to 1 3/4" | Steel | Yes | Curved Lip | €2,473.36 |
