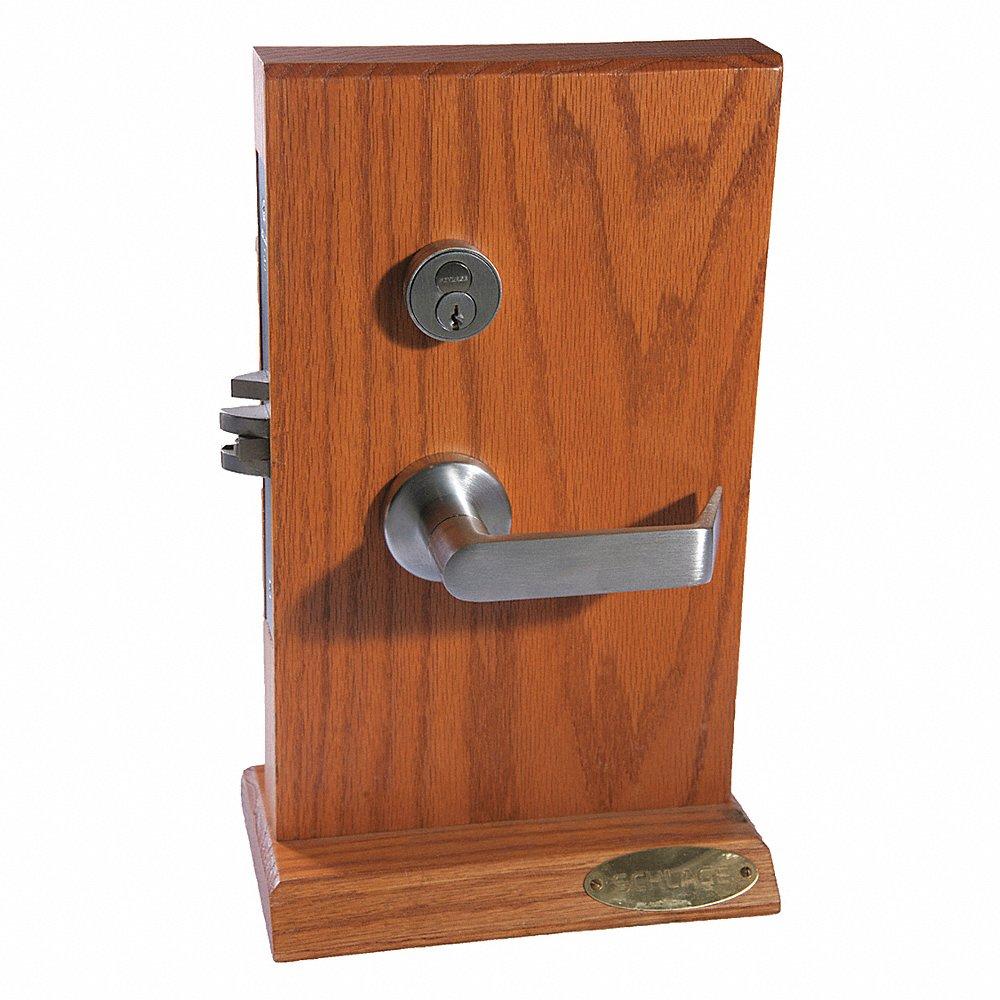

SCHLAGE L9080BD 06A 626 Storeroom Lockset
Item: CT9ZBQModel: L9080BD 06A 626Cross Ref: 28XY02
7 In Stock
Ships within 2 days via
10.00% off
€1,169.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Lever Lockset |
| Ada Compliant | No |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Storeroom |
| Backset | 2 3/4" |
| Bolt Type | Dead Latch |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Electrical/mechanical | Mechanical |
| Failure Mode | Fail Secure |
| Features | Anti-Saw Pin In Bolt, Breakaway Spindle, Security Blocking Hub, Two Piece Anti-Friction Tongue In Latch Bolt |
| Finish | Satin Chromium Plated |
| Fire Rating | 3 hrs. |
| Function | Storeroom |
| General Lockset Function | Storeroom Lever Locksets |
| Grade | Not Graded |
| Hand Orientation | Non Handed |
| Handle Type | Lever |
| Includes | Dust Box |
| Includes Core | Yes |
| Inside Locking Access | Not Lockable |
| Knob/handle Material | Cast Stainless Steel, Forged Brass |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Commercial |
| Lock Assembly Type | Mortise |
| Lockset Fire Rating | Not Rated |
| Lockset Function Ansi Code | F07 |
| Lockset Handle Type | Lever |
| Lockset Style | L Rhodes |
| Lockset Type | Mechanical |
| Mortise / Cylindrical | Mortise |
| Mortise/cylindrical | Mortise |
| Mounting Style | Screw In |
| Outside Locking Access | Keyway |
| Performance Duty Rating | 1 |
| Properties | Corrosion Resistant |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 3/16" |
| Strike Plate Width | 1 1/4" |
| Strike Type | Curved Lip |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | Locked, Unlocked |
Shipping Info:
| Ship weight (kg) | 2.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Fire Rating | Key Type | Style | Visual Indicator Message | Ligature Resistant | Backset | Strike Type | Location Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09-138 SL1 630 P | 3 hrs. | Not Keyed | Anti Ligature Lever | No Message | No | 2 3/4" | ANSI | Institutional | €2,724.76 | |
 |
09-138 SL1 630 BD | 3 hrs. | Not Keyed | Anti Ligature Lever | No Message | No | 2 3/4" | ANSI | Institutional | €2,490.84 | |
|
L9465P SL1 630 | 3 hrs. | Keyed Different | Anti Ligature Lever | Locked, Unlocked | - | 2 3/4" | Curved Lip | Commercial | €2,969.69 | |
|
L9080J SL1 630 | 3 hrs. | Not Keyed | Anti Ligature Lever | Locked, Unlocked | - | 2 3/4" | Curved Lip | Commercial | €2,785.06 | |
 |
L9010 SL1 630 | 3 hrs. | Not Keyed | Anti Ligature Lever | Locked, Unlocked | - | 2 3/4" | Curved Lip | Commercial | €2,600.92 | |
|
L9070J SL1 630 | 3 hrs. | Not Keyed | Anti Ligature Lever | Locked, Unlocked | - | 2 3/4" | Curved Lip | Commercial | €2,861.14 | |
|
L9465BD SL1 630 | 3 hrs. | Not Keyed | Anti Ligature Lever | Locked, Unlocked | Yes | 2 3/4" | Curved Lip | Commercial | €2,950.98 |
