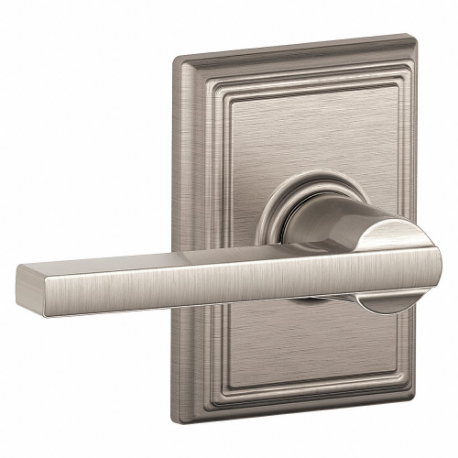

SCHLAGE F10 LAT 619 ADD Door Lever Lockset, Grade 2, Latitude/Addison, Satin Nickel, Not Keyed
Item: CT9YJYModel: F10 LAT 619 ADDCross Ref: 457H42
7 In Stock
Ships within 2 days via
10.00% off
€107.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Lever Lockset |
| Ada Compliant | No |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/8" |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Electrical/mechanical | Mechanical |
| Features | Lifetime Finish And Mechanical Guarantee (Oil-Rubbed Bronze Is Only A Mechanical Guarantee), Self-Aligning Screw Holes, Universal Latch |
| Finish | Satin Nickel Plated, Clear Coated |
| Fire Rating | 3 hrs. |
| For Use With | Residential/Light Commercial Applications |
| Function | Passage |
| General Lockset Function | Passage Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Brass |
| Handle Type | Lever |
| Includes | Hardware |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keyway Type | None |
| Knob/handle Material | Brass |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Multi-Family, Residential |
| Lock Assembly Type | Cylindrical |
| Lockset Fire Rating | Not Rated |
| Lockset Function Ansi Code | F75 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Standard Duty |
| Lockset Style | Addison, Latitude |
| Lockset Type | Mechanical |
| Mortise / Cylindrical | Cylindrical |
| Mounting Style | Screw In |
| Number Of Keys | 0 |
| Number Of Pins | 0 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 2 |
| Pins | 0 |
| Required Door Thickness | 1 3/8" to 1 3/4" |
| Strike Dim. | 1 1/4" x 4 7/8" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Width | 1 1/4" |
| Strike Type | Full Lip, Round Corner |
| Style | Latitude, Addison |
| Visual Indicator Message | No Message |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Fire Rating | Key Type | Style | Visual Indicator Message | Ligature Resistant | Backset | Strike Type | Location Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
09-138 SL1 630 P | 3 hrs. | Not Keyed | Anti Ligature Lever | No Message | No | 2 3/4" | ANSI | Institutional | €2,724.76 | |
 |
09-138 SL1 630 BD | 3 hrs. | Not Keyed | Anti Ligature Lever | No Message | No | 2 3/4" | ANSI | Institutional | €2,490.84 | |
|
L9465P SL1 630 | 3 hrs. | Keyed Different | Anti Ligature Lever | Locked, Unlocked | - | 2 3/4" | Curved Lip | Commercial | €2,969.69 | |
|
L9080J SL1 630 | 3 hrs. | Not Keyed | Anti Ligature Lever | Locked, Unlocked | - | 2 3/4" | Curved Lip | Commercial | €2,785.06 | |
 |
L9010 SL1 630 | 3 hrs. | Not Keyed | Anti Ligature Lever | Locked, Unlocked | - | 2 3/4" | Curved Lip | Commercial | €2,600.92 | |
|
L9070J SL1 630 | 3 hrs. | Not Keyed | Anti Ligature Lever | Locked, Unlocked | - | 2 3/4" | Curved Lip | Commercial | €2,861.14 | |
|
L9465BD SL1 630 | 3 hrs. | Not Keyed | Anti Ligature Lever | Locked, Unlocked | Yes | 2 3/4" | Curved Lip | Commercial | €2,950.98 |
