SCHATZ BEARING TW2 Unground Flanged Radial Ball Bearing, TW2, 1/2 Inch Bore, 1.25 Inch Flange Dia, Contact
Get it by Wednesday, Dec 17
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Radial Ball Bearing |
| Application | Baggage Systems, Conveyors, Food Processing Machinery, Material Handling, Medical Processing |
| Ball Material | Carbon Steel |
| Bearing Industry Number | TW2 |
| Bore Dia. | 1/2" |
| Closure | Double Sealed |
| Dynamic Load Capacity | 80 lbf. |
| Dynamic Radial Load Capacity | 80 lbf. |
| Flange Dia. | 1 1/4" |
| Flange Thickness | 0.06" |
| Flange Type | Flanged |
| Lubricant Material | Gadus-S2-V100-2 |
| Max. Speed | 500 RPM |
| Max. Temp. | 130°F |
| Min. Temp. | -25°F |
| Outer Ring Width | 0.437" |
| Outside Dia. | 1 1/8" |
| Ring Material | Alloy Steel |
| Seal Material | Synthetic Rubber |
| Seal Type | Contact |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.03 |
Product Variants
| Product | Model | Closure | Outer Ring Width | Bore Dia. | Outside Dia. | Flange Thickness | Dynamic Load Capacity | Max. Temp. | Min. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

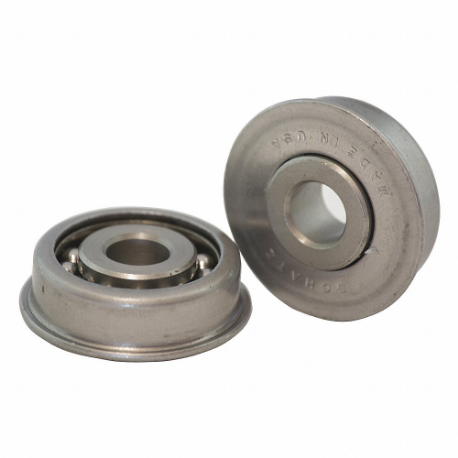

AF3236 | Open | 0.437" | - | - | 0.06" | - | - | - | - | RFQ
|
|
AF3244 | Open | 1/2" | 1/2" | 1 3/8" | 0.06" | 120 lbf. | 365°F | -65°F | €46.64 | |
|
AF3252 | Open | 0.562" | 1/2" | 1 5/8" | 0.07" | 185 lbf. | 365°F | -65°F | - | RFQ
|
 |

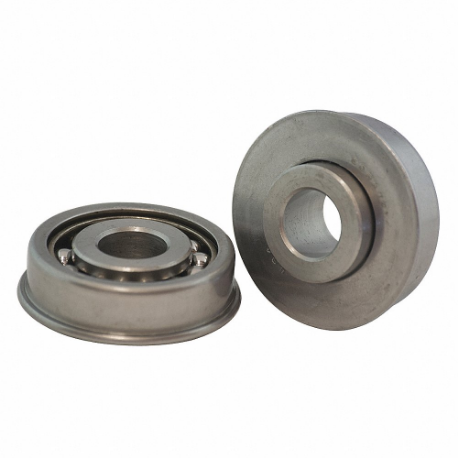

AF4856 | Open | 5/8" | 3/4" | 1 3/4" | 2/25" | 195 lbf. | 365°F | -65°F | - | RFQ
|
|
TW18 | Double Sealed | 5/8" | 3/4" | 1 3/4" | 2/25" | 210 lbf. | 130°F | -25°F | €63.50 | |
|
TW25 | Double Sealed | 0.562" | 1" | 2" | 0.09" | 240 lbf. | 130°F | -25°F | - | RFQ
|
|
TW7 | Double Sealed | 1/2" | 5/8" | 1 3/8" | 0.06" | 120 lbf. | 130°F | -25°F | - | RFQ
|
