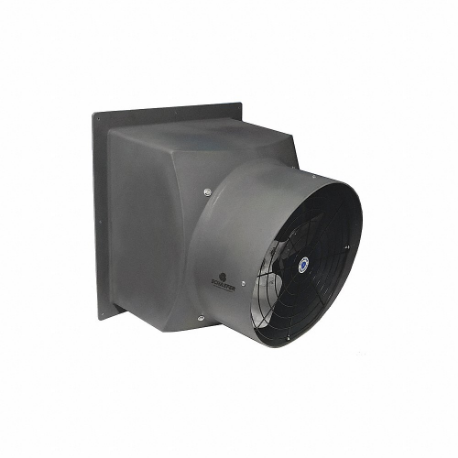

SCHAEFER PFM1600-1-HL Hazardous Location Exhaust Fan, Direct Drive, 16 Inch Blade, 1/3 hp
Get it by Tuesday, Dec 23
10.00% off
€1,734.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Exhaust Fan |
| Assembled | Fully Assembled |
| Blade Dia. | 16" |
| Blade Material | Aluminum |
| Cone Diameter | 16" |
| Drive Type | Direct Drive |
| Fan Style | Cylinder |
| For Cut-out Height | 20 1/2" |
| For Cut-out Width | 19 1/2" |
| Frame Finish | Polished |
| Frame Material | Polyethylene |
| Hazardous Location Class | Class I, Division 1, Group C And D, Class II, Division 1, Group F And G |
| Max. Exhaust Airflow @ 0.000 In Sp | 3220 CFM |
| Max. Exhaust Airflow @ 0.100 In Sp | 2950 CFM |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Hp | 1/3 hp |
| Motor Speed | 1725 RPM |
| Motor Type | Single Phase |
| Nameplate Voltage | 115/230V AC |
| Number Of Blades | 3 |
| Number Of Speeds | 1 |
| Phase | 1 |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Blades | Blade Material | Drive Type | Phase | Motor Hp | Blade Dia. | Motor Enclosure | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

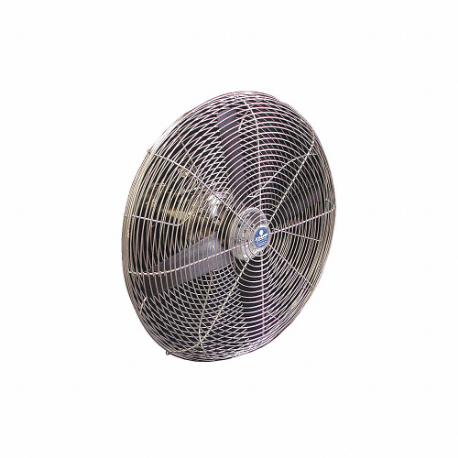

30CFO-SWDS-3-Q | - | - | - | - | - | - | - | - | €4,407.82 |
