SANDPIPER 476.199.360 Repair Kit, Wet, Bn,Uhmw
Item: CJ3UTBModel: 476.199.360Cross Ref: 33TC13
7 In Stock
Ships within 2 days via
5.00% off
€346.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Repair Kit |
| Check Ball Material | Buna N |
| Compatible Connection Media Type | Fluid |
| Compatible With Grainger Part No | 12W423 |
| Compatible With Mfr Part No. | S05B1ABWANS000 |
| Compatible With Pump Type | Air Operated Double Diaphragm Pump |
| Compatible With Series | SO5 Metallic Series |
| Diaphragm Material | Buna N |
| Fits Brand | Sandpiper |
| For Use With Grainger Part No. | 12W423 |
| Included | Check Balls, Check Valve Seats, Diaphragms, Grease Packet |
| Kit Components | Check Balls, Check Valve Seats, Diaphragms, Grease Packet |
| Max. Media Intake Pressure | 125 psi |
| Max. Media Temp. | 180°F |
| Media Type | Fluid |
| Min. Media Temp. | -10°F |
| No. Of Check Balls | 4 |
| No. Of Diaphragms | 2 |
| No. Of O-rings | 0 |
| No. Of Seals | 2 |
| Product Type | Fluid End Repair Kit |
| Pump Type | Air Operated Double Diaphragm Pump |
| Series | SO5 Metallic Series |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Compatible With Mfr Part No. | Diaphragm Material | Product Type | Compatible With Grainger Part No | Check Ball Material | Max. Media Temp. | Min. Media Temp. | No. Of Seals | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
476.194.354 | S1FB1A1WANS000 | Santoprene | Fluid End Repair Kit | 12W425 | Santoprene | 180°F | -35°F | 2 | €555.89 | |
|

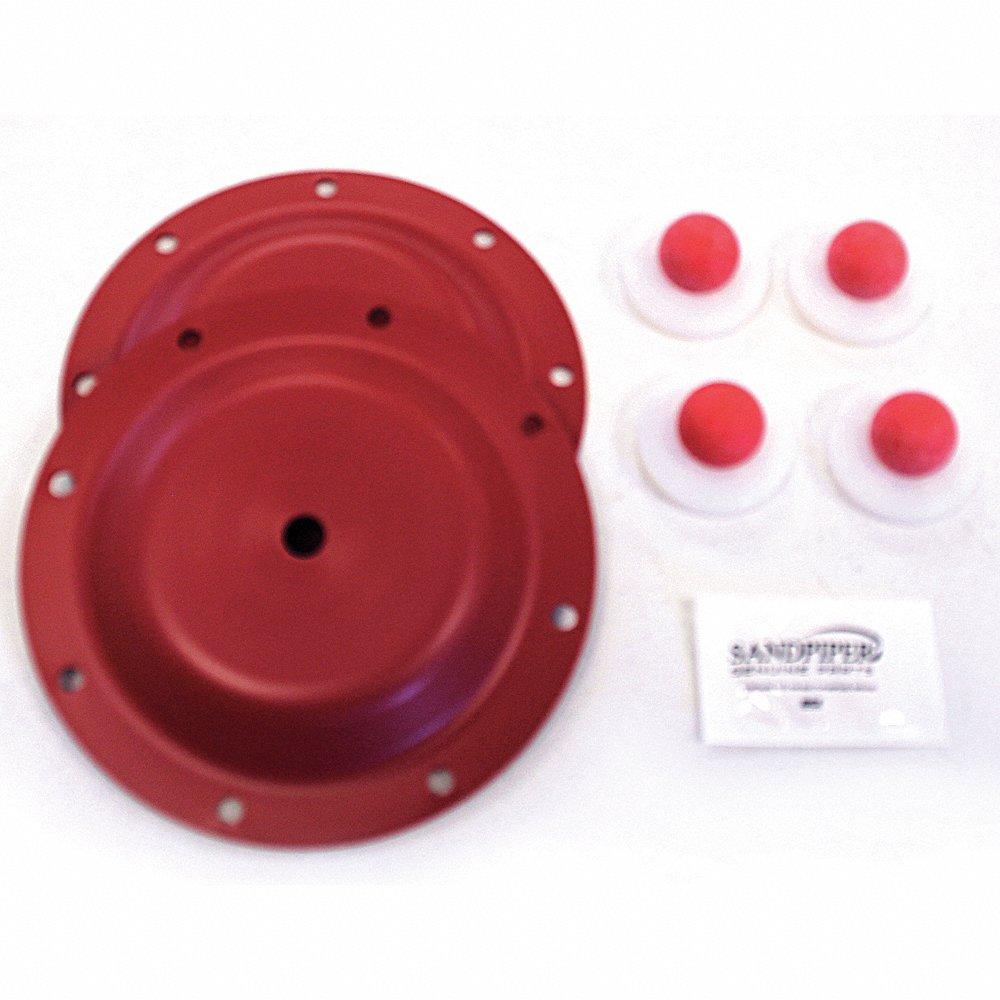

476.194.654 | S1FB1A2TANS000 | PTFE | Fluid End Repair Kit | 12W427 | PTFE | 220°F | -35°F | - | €1,694.21 | |
 |

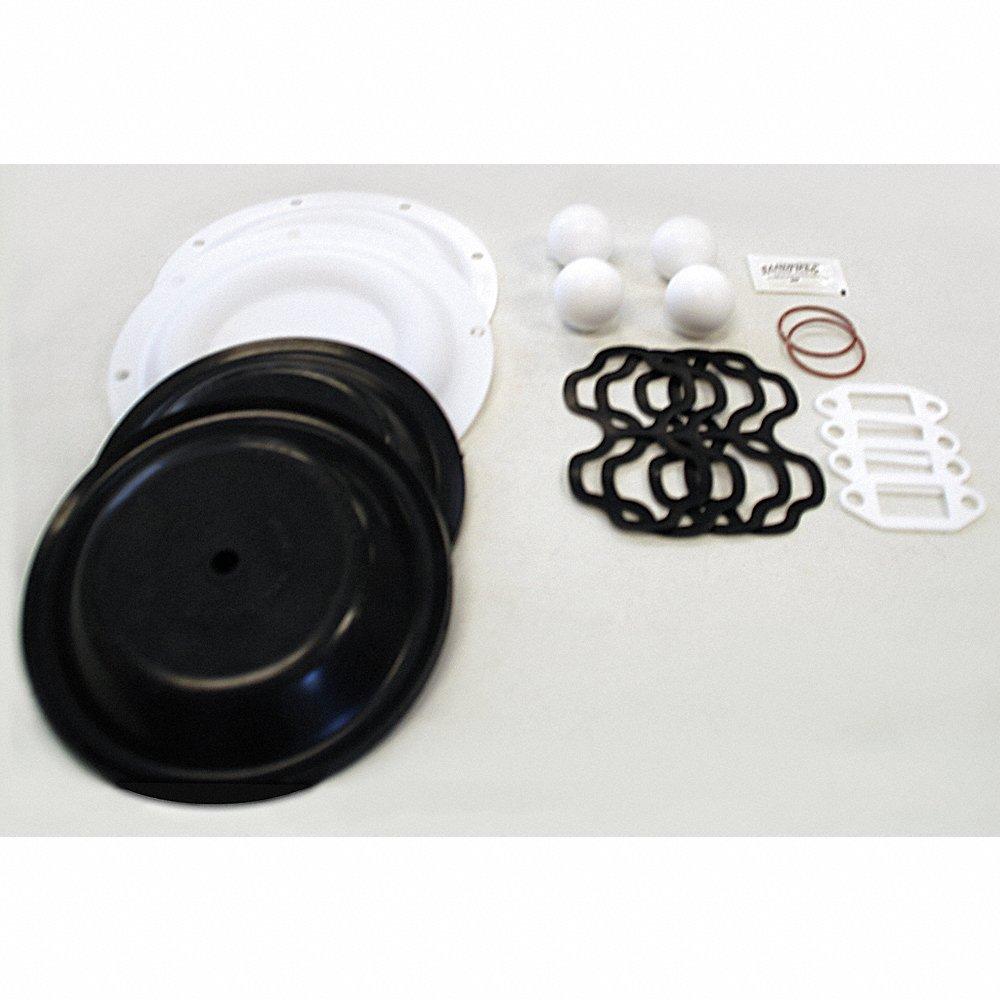

476.261.635 | HDB1-1/2, SGN7SS | PTFE | Fluid End Repair Kit | 3CCW6 | PTFE | 220°F | -35°F | - | €3,807.33 | |
 |

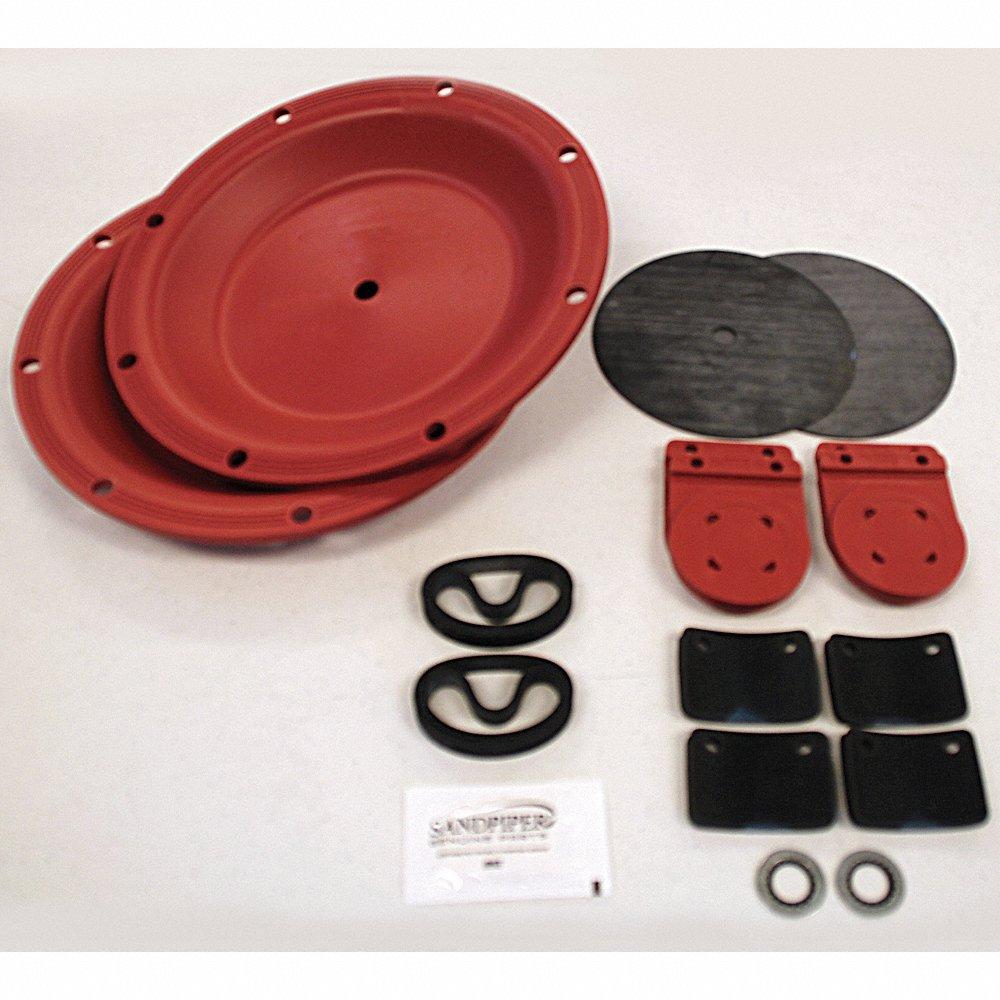

476.270.363 | DV65SI, HDF2 | - | - | - | - | 350°F | -40°F | 4 | €4,534.31 | |
|
476.286.360 | DB2A, HDF1 | Buna N | Fluid End Repair Kit | 4YPL8 | Buna N | 190°F | -10°F | 8 | €878.81 | |
 |
476.238.649 | G05B1STTXNSX00 | Buna N, PTFE | Wet End Repair Kit | 6WY66 | PTFE | - | - | - | €1,327.83 | |
|
476.270.360 | DB6I, HDF2 | Buna N | Fluid End Repair Kit | 6WY77 | Buna N | 190°F | -10°F | 4 | €1,048.93 |
