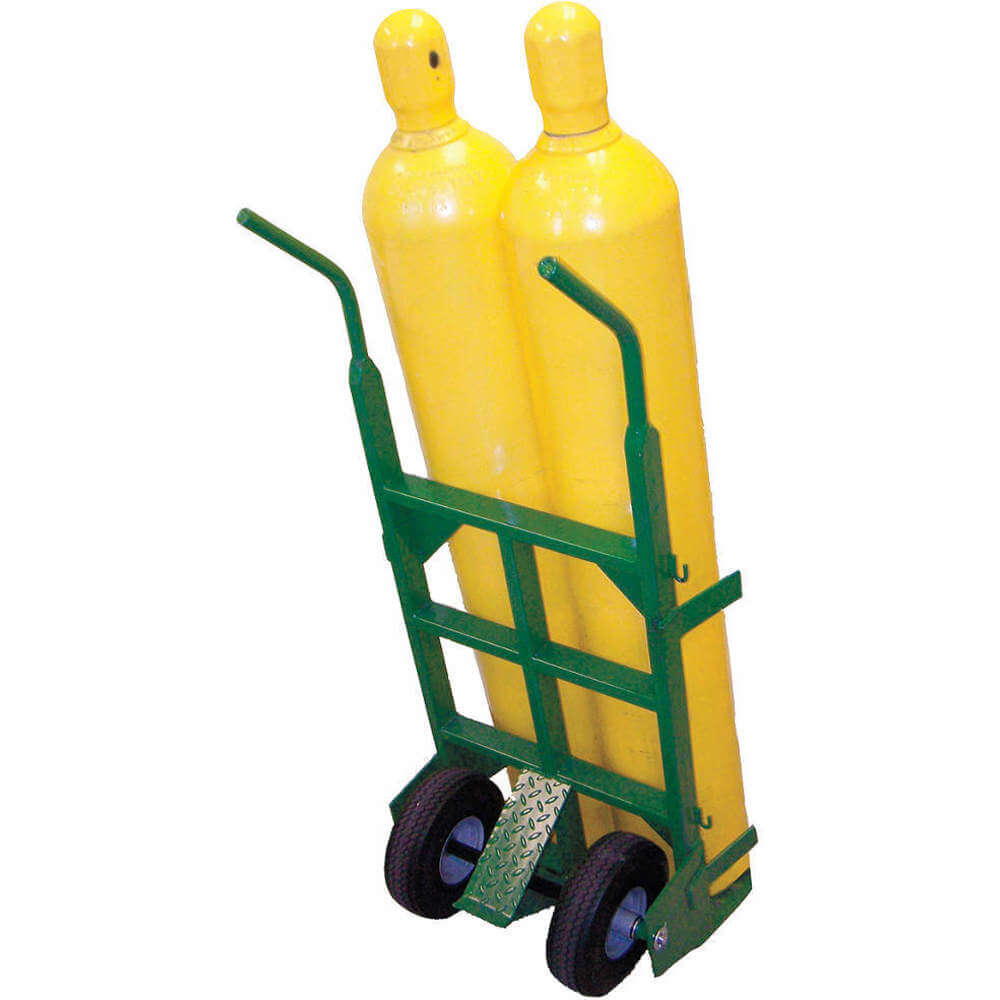

SAFTCART 780-10 Cylinder Truck 2 Cylinder 800 Lb.
Get it by Wednesday, Dec 24
10.00% off
€1,239.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder Truck |
| Assembled | Yes |
| Axle Dia. | 3/4" |
| Axle-mounted Wheel Bearings | Ball Bearing |
| Axle-mounted Wheel Dia. | 10" |
| Axle-mounted Wheel Type | Pneumatic |
| Axle-mounted Wheel Width | 4" |
| Axle-mounted Wheel/tread Material | Rubber |
| Base Plate Dimensions | 21 x 5" |
| Base Plate Dimensions | 21" x 5" |
| Brake Type | No Caster Brake |
| Caster/wheel Configuration | (2) Axle-Mounted |
| Caster/wheel Mounting Location | 2-Wheel |
| Color | Green |
| Compatible With Product Type | Welding Cylinders And Torches |
| Cylinder Capacity | 2 |
| Cylinder Height | 49" |
| Cylinder Orientation | Single |
| Deck Height | 1/2" |
| Depth | 5" |
| Features | Quick Loading |
| Finish | Powder Coated |
| For Maximum Cylinder Diameter | 12 1/2" |
| For Surface Type | Concrete, Grass, Wood |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Frame Type | Flat Back |
| Handle Height | 49" |
| Handle Type | Dual |
| Height | 49" |
| Hub Position | Offset |
| Includes Firewall | No |
| Includes Foot Assist | Without Foot Assist |
| Includes Lever Pushoff | Without Lever Pushoff |
| Includes Lift Ring | Without Lift Ring |
| Includes Stair Climber | Without Stair Climber |
| Load Capacity | 800 lbs. |
| Material | Steel |
| Max. Tank Dia. Oxygen | 9-1/2" |
| Max. Tank Dia. Oxygen | 9 1/2" |
| Non-marking Axle-mounted Wheels | No |
| Nose Plate Depth | 5" |
| Nose Plate Material | Steel |
| Nose Plate Profile | Standard |
| Nose Plate Thickness | 1/8" |
| Nose Plate Type | Solid Straight |
| Nose Plate Width | 21" |
| Nose Plate Wxd | 5" x 21" |
| Overall Depth | 5" |
| Overall Height | 49" |
| Overall Height - Cylinder Lowered | 49" |
| Overall Height - Cylinder Raised | 62" |
| Overall Hxwxd | 49" x 23" x 5" |
| Overall Width | 23" |
| Securing Mechanism | Chain |
| Weight | 64 lbs. |
| Wheel Bearings | Ball , Ball Bearing |
| Wheel Dia. | 10" |
| Wheel Type | Pneumatic |
| Wheel Width | 4" |
| Width | 23" |
Shipping Info:
| Ship weight (kg) | 28.8 |
| Ship height (cm) | 139.7 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 101.6 |
| HS code | 8716805090 |
| Country of Origin | US |
Product Variants
| Product | Model | Cylinder Capacity | Overall Height | Overall Width | Load Capacity | Handle Type | Frame Type | Overall Depth | Wheel Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
250-0 | 1 | 49" | 18" | 250 lbs. | Continuous Frame Flow Back | Rounded Back | 6" | Semi Pneumatic | €315.75 | |
 |
730-12 | 2 | 53" | 32" | 890 lbs. | Dual | Flat Back | 18 1/2" | Pneumatic | €1,414.95 | |
 |
750-10 | 1 | 49" | 19" | 400 lbs. | Continuous Frame Flow Back | Rounded Back | 6" | Semi Pneumatic | €457.82 | |
 |
750-20 | 2 | 49" | 20" | 400 lbs. | Dual | Rounded Back | 9 1/2" | Semi Pneumatic | €510.99 | |
 |
7-900-4P | 1 | 55" | 29" | 800 lbs. | Dual | Rounded Back | - | Pneumatic | €618.08 | |
 |
LCT-12-6 | 1 | 63" | 26" | 890 lbs. | Dual | Flat Back | - | Pneumatic | €2,010.94 | |
 |
EZ LOAD-4L | 1 | 41" | 28" | 1000 lbs. | Continuous Frame Flow Back | Flat Back | 33" | Aluminum | €2,231.90 |
