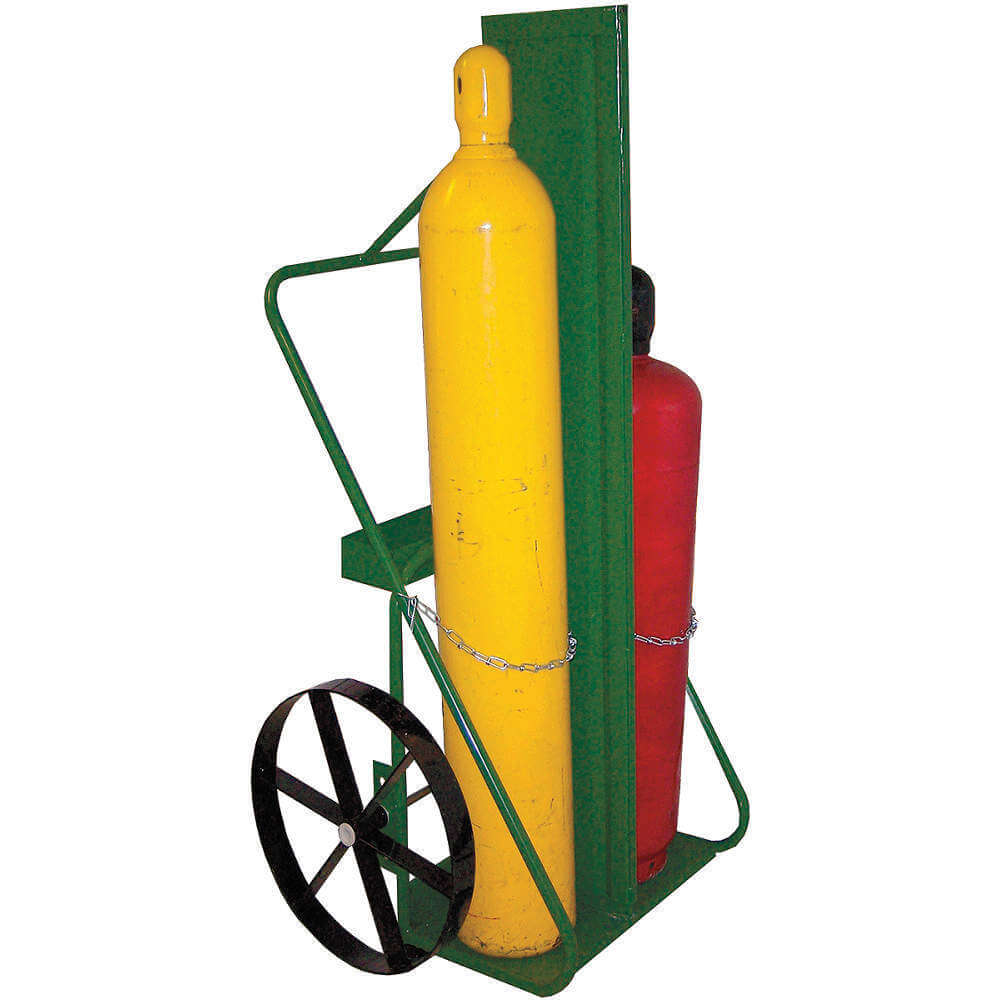

SAFTCART 403-20FW Cylinder Hand Truck, 400 lb, Side by Side, 2 Cylinder, 24 Inch Width x 13 Inch Depth Nose Plate
Get it by Tuesday, Jul 7
€1,245.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder Truck |
| Assembled | Yes |
| Axle Dia. | 3/4" |
| Axle Mounted Wheel Bearings | Plain |
| Axle Mounted Wheel Width | 2 1/2" |
| Axle-mounted Wheel Dia. | 20" |
| Axle-mounted Wheel Type | Flat Free |
| Axle-mounted Wheel/tread Material | Steel |
| Base Plate Dimensions | 13" x 24" |
| Base Plate Dimensions | 13 x 24" |
| Brake Type | No Caster Brake |
| Caster Wheel/configuration | (2) Axle-Mounted |
| Caster/wheel Mounting Location | 2-Wheel |
| Color | Green |
| Compatible With Product Type | Welding Cylinders And Torches |
| Cylinder Capacity | 2 |
| Cylinder Height | 62" |
| Cylinder Orientation | Side By Side |
| Deck Height | 1/2" |
| Finish | Powder Coating |
| Firewall Rating | 1 hr. |
| Firewall Thickness | 1" |
| For Max. Container Dia. | 12 1/2" |
| For Max. Cylinder Dia. | 12 1/2" |
| For Surface Type | Concrete, Grass, Wood |
| Frame Finish | Powder Coating |
| Frame Material | Steel |
| Frame Type | Rounded Back |
| Hand Truck Handle Type | Continuous Frame Flow-Back |
| Handle Height | 46" |
| Handle Type | Continuous Frame Flow Back |
| Height | 62" |
| Hub Position | Offset |
| Included | Chain To Secure Cylinder, Firewall, Toolbox |
| Included Firewall | Yes |
| Included Foot Assist | Without Foot Assist |
| Included Lever Pushoff | Without Lever Pushoff |
| Included Lift Ring | Without Lift Ring |
| Included Stair Climber | Without Stair Climber |
| Load Capacity | 400 lbs. |
| Material | Steel |
| Max. Tank Dia. Acetylene | 9 1/2" |
| Max. Tank Dia. Acetylene | 12-1/2" |
| Max. Tank Dia. Oxygen | 9-1/2" |
| Max. Tank Dia. Oxygen | 9 1/2" |
| Non-marking Axle-mounted Wheels | Yes |
| Nose Plate Depth | 13" |
| Nose Plate Material | Steel |
| Nose Plate Profile | Standard |
| Nose Plate Thickness | 3/32" |
| Nose Plate Type | Solid Straight |
| Nose Plate Width | 24" |
| Nose Plate Wxd | 13" x 24" |
| Overall Depth | 12 1/2" |
| Overall H X W X D | 62" x 34" x 12.5" |
| Overall Height | 62" |
| Overall Height-cylinder Lowered | 62" |
| Overall Height-cylinder Raised | 62" |
| Overall Width | 34" |
| Product Type | Firewall Welding Cylinder Hand Truck |
| Securing Mechanism | Chain |
| Securing Mechanism Height | 30" |
| Tool Tray Height | 3" |
| Tool Tray Height | 31" |
| Tool Tray Width | 24" |
| Tool Tray Width | 23 7/8" |
| Type | Standard |
| Wheel Bearings | Plain |
| Wheel Dia. | 20" |
| Wheel Material | Steel |
| Wheel Type | Steel |
| Wheel Width | 3" |
| Width | 33" |
Shipping Info:
| Ship weight (kg) | 58.5 |
| Ship height (cm) | 172.72 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 101.6 |
| HS code | 8716805090 |
| Country of Origin | US |
Product Variants
| Product | Model | Cylinder Capacity | Overall Height | Overall Width | Load Capacity | Handle Type | Frame Type | Overall Depth | Wheel Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
250-0 | 1 | 49" | 18" | 250 lbs. | Continuous Frame Flow Back | Rounded Back | 6" | Semi-Pneumatic | €282.20 | |
 |
730-12 | 2 | 53" | 32" | 890 lbs. | Dual | Flat Back | 18 1/2" | Pneumatic | €1,241.78 | |
 |
750-10 | 1 | 49" | 19" | 400 lbs. | Continuous Frame Flow Back | Rounded Back | 6" | Semi-Pneumatic | €417.50 | |
 |
750-20 | 2 | 49" | 20" | 400 lbs. | Dual | Rounded Back | 9 1/2" | Semi-Pneumatic | €446.65 | |
 |
7-900-4P | 1 | 55" | 29" | 800 lbs. | Dual | Rounded Back | - | Pneumatic | €495.07 | |
 |
LCT-12-6 | 1 | 63" | 26" | 890 lbs. | Dual | Flat Back | - | Pneumatic | €1,637.73 | |
 |
EZ LOAD-4L | 1 | 41" | 28" | 1000 lbs. | Continuous Frame Flow Back | Flat Back | 33" | Aluminum | €1,259.44 |
