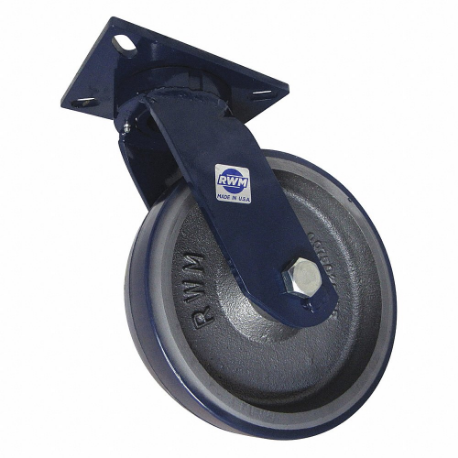

RWM 76-UIB-1030-S-Q Kingpinless Plate Caster, 10 Inch Dia, 12 1/2 Inch Height, Swivel, Firm
Get it by Tuesday, Dec 23
10.00% off
€833.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial And Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Brake Type | No Brake Included |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Core Material | Cast Iron |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Plate Hole Pattern | A |
| Caster Shape | Standard |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Core Color | Gray |
| Extended Lead | Yes |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Load Rating | 5000 lbs. |
| Load Rating Range | 3000 lbs. to 5999 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Plate Caster Bolt Hole Pattern | A |
| Replacement Wheel | Mfr. No. UIB-1030-12-INF |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 2" |
| Thread Guards | No |
| Tread Material, Wheel Material | Polyurethane |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Blue |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 10" |
| Wheel Width | 3" |
| Wheel/tread Color | Tan |
| Wheel/tread Hardness | 93 Shore A |
| Wheel/tread Hardness Rating | Firm |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Mounting Plate Bolt Hole Pattern | Mounting Plate Size | Wheel Width | Load Rating | Wheel Bearing Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
75-UIR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 3000 lbs. | Roller | 11 1/2" | €650.27 | |
 |
75-CIR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | - | - | Roller | 11 1/2" | €475.98 | |
 |
75-FSR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Roller | 11 1/2" | €714.44 | |
 |
75-NYB-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Precision Ball | 11 1/2" | €1,078.23 | |
 |
75-UIR-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 3000 lbs. | Roller | 11 1/2" | €781.36 | |
 |
75-NYB-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Precision Ball | 11 1/2" | €1,142.93 | |
 |
75-CIR-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 4000 lbs. | Roller | 11 1/2" | €540.19 |
