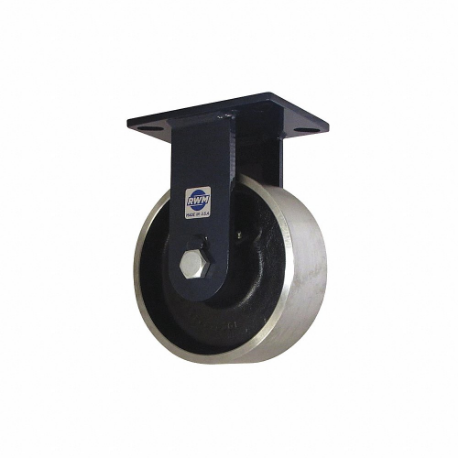

RWM 76-FSB-0630-R Kingpinless Plate Caster, 6 Inch Dia, 8 Inch Height, Rigid
Get it by Thursday, Feb 26
5.00% off
€585.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial And Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Brake Type | No Brake Included |
| Caster Brake Included | No |
| Caster Brake Type | No Brake |
| Caster Core Material | Forged Steel |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Plate Hole Pattern | A |
| Caster Shape | Standard |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Compatible Wheel Manufacturer Model Number | FSB-0630-12 |
| Core Color | Blue |
| Duty Rating | Extreme Duty |
| Extended Lead | Yes |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Load Capacity | 7000 lbs. |
| Load Rating | 7000 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 8" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 5 1/4" x 7 1/4" |
| Mounting Plate Slot Angle | Angled Inward |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 4 1/8" x 6 1/8" |
| Plate Caster Bolt Hole Pattern | A |
| Replacement Wheel | Mfr. No. FSB-0630-12 |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 2" |
| Thread Guards | No |
| Tread Material | Steel |
| Tread Material, Wheel Material | Steel |
| Tread Shape | Standard |
| Wheel Bearing Type | Ball |
| Wheel Color | Silver |
| Wheel Core Material | Steel |
| Wheel Diameter | 6" |
| Wheel Width | 3" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | Brinell 179 |
| Wheel/tread Hardness Rating | Extra Hard |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Mounting Plate Bolt Hole Pattern | Mounting Plate Size | Wheel Width | Load Rating | Wheel Bearing Type | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
75-UIR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 3000 lbs. | Roller | 11 1/2" | €650.27 | |
 |
75-CIR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | - | - | Roller | 11 1/2" | €475.98 | |
 |
75-FSR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Roller | 11 1/2" | €714.44 | |
 |
75-NYB-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Precision Ball | 11 1/2" | €1,078.23 | |
 |
75-UIR-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 3000 lbs. | Roller | 11 1/2" | €781.36 | |
 |
75-NYB-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Precision Ball | 11 1/2" | €1,142.93 | |
 |
75-CIR-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 4000 lbs. | Roller | 11 1/2" | €540.19 |
