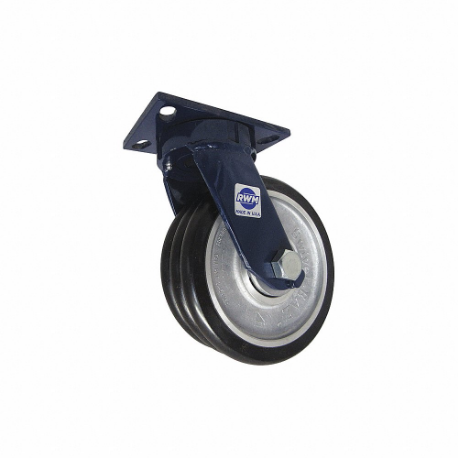

RWM 75-SWE-0830-S-CRN75D Kingpinless Plate Caster, 8 Inch Dia, 10 1/8 Inch Height, Swivel Caster
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€711.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial And Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Brake Type | No Brake Included |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Core Material | Aluminum |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Plate Hole Pattern | A |
| Caster Shape | Crown |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Core Color | Silver |
| Extended Lead | No |
| Frame Finish | Powder Coating |
| Frame Material | Steel |
| Included | Complete Caster |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 2 7/16" x 4 15/16" |
| Load Rating | 3000 lbs. to 5999 lbs. , 3850 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 10 1/8" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 4 1/2" x 6 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Outside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Plate Caster Bolt Hole Pattern | A |
| Replacement Wheel | Mfr. No. SWE-0830-12-CT75D |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Swivel Radius | 2" |
| Thread Guards | No |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Color | Black |
| Wheel Core Material | Aluminum |
| Wheel Dia. | 8" |
| Wheel Width | 3" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 75 Shore D , Hard |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Dia. | Load Rating | Mounting Plate Bolt Hole Pattern | Mounting Plate Size | Wheel Width | Wheel Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
75-UIR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 10" | 3000 lbs. | A | 4 1/2" x 6 1/2" | 3" | Roller | €543.86 | |
 |
75-CIR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 10" | 3000 lbs. to 5999 lbs. | A | 4 1/2" x 6 1/2" | - | Roller | €435.14 | |
 |
75-FSR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 10" | 6000 lbs. | A | 4 1/2" x 6 1/2" | 3" | Roller | €596.40 | |
 |
75-NYB-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 10" | 6000 lbs. | A | 4 1/2" x 6 1/2" | 3" | Precision Ball | €921.24 | |
 |
75-UIR-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 10" | 3000 lbs. | A | 4 1/2" x 6 1/2" | 3" | Roller | €623.80 | |
 |
75-NYB-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 10" | 6000 lbs. | A | 4 1/2" x 6 1/2" | 3" | Precision Ball | €987.24 | |
 |
75-CIR-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 10" | 4000 lbs. | A | 4 1/2" x 6 1/2" | 3" | Roller | €376.09 |
