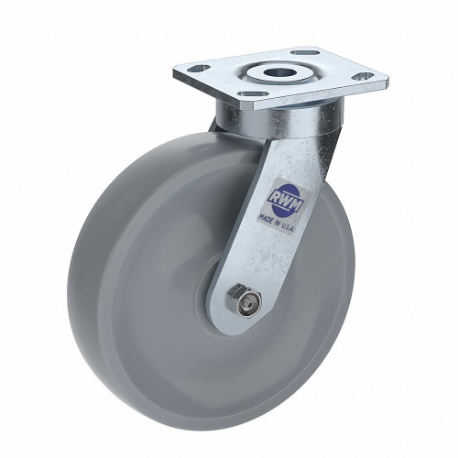

RWM 48-GTB-0820-S Plate Caster, 8 Inch Dia, 9 1/2 Inch Height, Swivel Caster
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€177.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Metalworking |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Mounting Type | Plate |
| Caster Sub-type | Swivel |
| Core Color | Gray |
| Features | MainteNaNce Free Caster |
| For Axle Dia. | 1/2" |
| Frame Color | Silver |
| Frame Finish | Zinc Plated |
| Includes | Wheel |
| Includes Fasteners | No |
| Includes Mounting Fasteners | No |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Leveling Caster | No |
| Load Rating | 1500 lbs. |
| Load Rating Range | 1000 lbs. to 2999 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4.5" |
| Mounting Plate Thickness | 1/4" |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3" |
| Replacement Wheel | GTB-0820-08 |
| Series | 48 Series |
| Swivel Bearing Seal Type | Sealed |
| Swivel Construction | Kingpin |
| Swivel Lead | 2" |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Precision Ball |
| Tire Style | Inner Tube |
| Tread | Elastomer Blend |
| Tread Material, Wheel Material | Nylon |
| Tread Shape | Standard |
| Wheel Bearing Material | Steel |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Nylon |
| Wheel Diameter | 8" |
| Wheel Type | Flat Free |
| Wheel Width | 2" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 75 Shore D |
| Wheel/tread Hardness Rating | Hard |
| With Toe Plate | No |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Caster Brake Type | Wheel Bearing Type | Load Rating | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
48-SWB-0520-R | Rigid | B | 2 5/8" x 3" | 3" x 3 5/8" | No Brake Included | Precision Ball | 500 lbs. | 6 1/2" | €52.97 | |
 |
48-RAB-0620-R-EHT | Rigid | B | 2 5/8" x 3" | 3" x 3 5/8" | No Brake Included | Precision Ball | 615 lbs. | 7 1/2" | €89.31 | |
 |
68-GTB-0820-R | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 1800 lbs. | 10 1/8" | €208.65 | |
 |
68-UIB-0820-R-INF | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 2000 lbs. | 10 1/8" | €298.39 | |
 |
68-UAB-0821-R-92A | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 1500 lbs. | 10 1/8" | €202.42 | |
 |
68-GTB-0820-S | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 1800 lbs. | 10 1/8" | €357.63 | |
 |
68-UAB-0821-S-92A | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 1500 lbs. | 10 1/8" | €370.07 |
