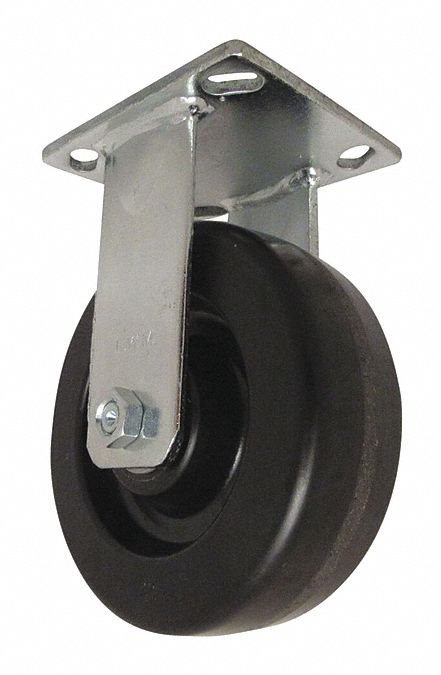

RWM 47-DUR-0820-R Kingpinless Plate Caster, Rigid, Phenolic, 1400 Lbs. Capacity, 8 Inch Wheel Dia.
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€37.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
| Bearing Type | Roller |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Core Material | Phenolic |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Plate Hole Pattern | B |
| Caster Shape | Standard |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Core Color | Black |
| Core Material | Phenolic |
| Extended Lead | No |
| Frame Finish | Zinc |
| Frame Material | Steel |
| Hardness | Shore D 90 |
| Hole Pattern | B |
| Included | Complete Caster |
| Included Thread Guards | No |
| Inside Bolt Hole Spacing | 2 5/8" x 3" |
| Load Rating | 1000 lbs. to 2999 lbs. , 1400 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Mounting Plate | 4" x 4 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4.5" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3 5/8" |
| Plate Caster Bolt Hole Pattern | B |
| Replacement Wheel | DUR-0820-08 |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 2" |
| Thread Guards | No |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Color | Black |
| Wheel Core Material | Phenolic |
| Wheel Dia. | 8" |
| Wheel Material | Phenolic |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | 90 Shore D , Hard |
| Wheel/tread Material | Phenolic |
Shipping Info:
| Ship weight (kg) | 3.47 |
| Country of Origin | USA |
Product Variants
| Product | Model | Outside Bolt Hole Spacing | Wheel Dia. | Inside Bolt Hole Spacing | Mounting Height | Wheel Width | Load Rating | Wheel Bearing Type | Wheel/tread Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CDP-G-23 | 3 3/8" x 5 1/4" | 6" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | 1 | €342.25 | |
 |
CDP-G-24 | 3 3/8" x 5 1/4" | 6" | 2 7/16" x 4 15/16" | 7 1/2" | 3" | 2000 lbs. | Precision Ball | Polyurethane | 1 | €250.93 | |
 |
CDP-G-31 | 3 3/8" x 5 1/4" | 8" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €252.72 | |
 |
CDP-G-32 | 3 3/8" x 5 1/4" | 8" | 2 7/16" x 4 15/16" | 10 1/8" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €182.15 | |
 |
S-526-D-BS-SS | 2 5/8" x 3 5/8" | 6" | 3" x 3" | - | 2" | - | Roller | Polyurethane | 1 | €246.95 | |
 |
CDP-G-33 | 3" x 3" | 8" | 2 5/8" x 3 5/8" | 9 1/2" | 2" | 1200 lbs. | Precision Ball | Polyurethane | 1 | €256.87 | |
 |
65-GTB-0620-R | 2 5/8" x 3 5/8" | 6" | 2 5/8" x 3" | 7 1/2" | 2" | 1500 lbs. | Precision Ball | Elastomer | 1 | €98.74 |
