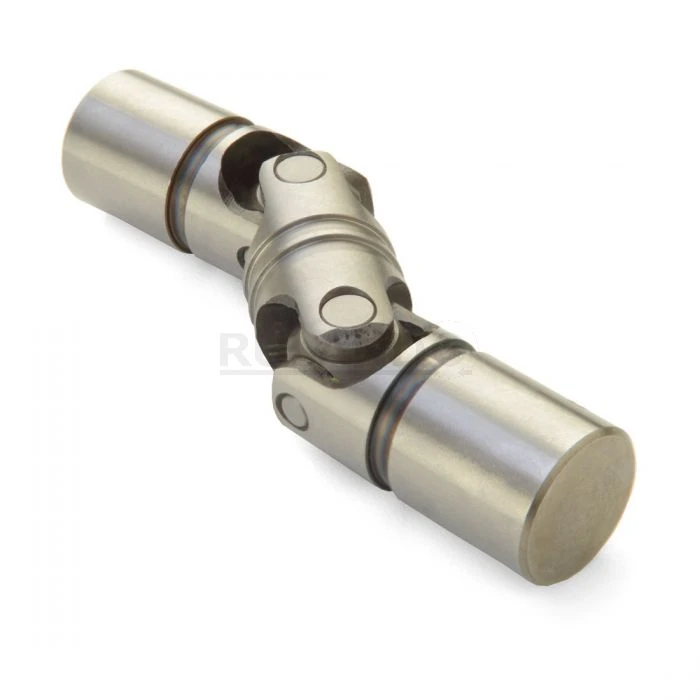

RULAND MANUFACTURING UD32-XX-XX-F Universal Joint, Friction Bearing, Double Universal Joint, Steel, 1.995 Inch O.D., 8.688 Inch Length
Item: DK6TNNModel: UD32-XX-XX-F
7 In Stock
Ships within 2 days via
€804.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Universal Joint |
| B1 Maximum Shaft Penetration | 1.7" |
| B2 Max Shaft Penetration | 1.7" |
| Bore (b1) | No Bore |
| Center Yoke Length (lc) | 3.188" |
| Hub Depth (lh) | 1.7" |
| Joint Outer Diameter (od) | 1.995" |
| Length (l) | 8.688" |
| Matching Boot Cover | Uboot32/51-Ni-Kit |
| Material Specification | Alloy Steel |
| Max Blind Bore (inch) | 1.5" |
| Max Blind Bore (metric) | 38 mm |
| Max Hex Or Square Bore (inch) | 1.125" |
| Max Hex Or Square Bore (metric) | 30 mm |
| Max Operating Angle | 90° |
| Max Round Bore | 1.1875" |
| Max Round Bore (metric) | 30 mm |
| Max Round Bore W/ Key (inch) | 1 3/16" Bore, 1/4" Keyway |
| Maximum Round Bore W/ Key (metric) | 30 mm Bore, 8 mm Keyway |
| Peak Torque | 19350 lbs.-in. |
| Rated Torque | 3870 lbs.-in. |
| Recommended Lubricant | Lubriplate No. 1200-2 |
| Small Bore (b2) | No Bore |
| Yoke Length (ly) | 2.75" |
Shipping Info:
| Ship weight (kg) | 2.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 22.07 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
