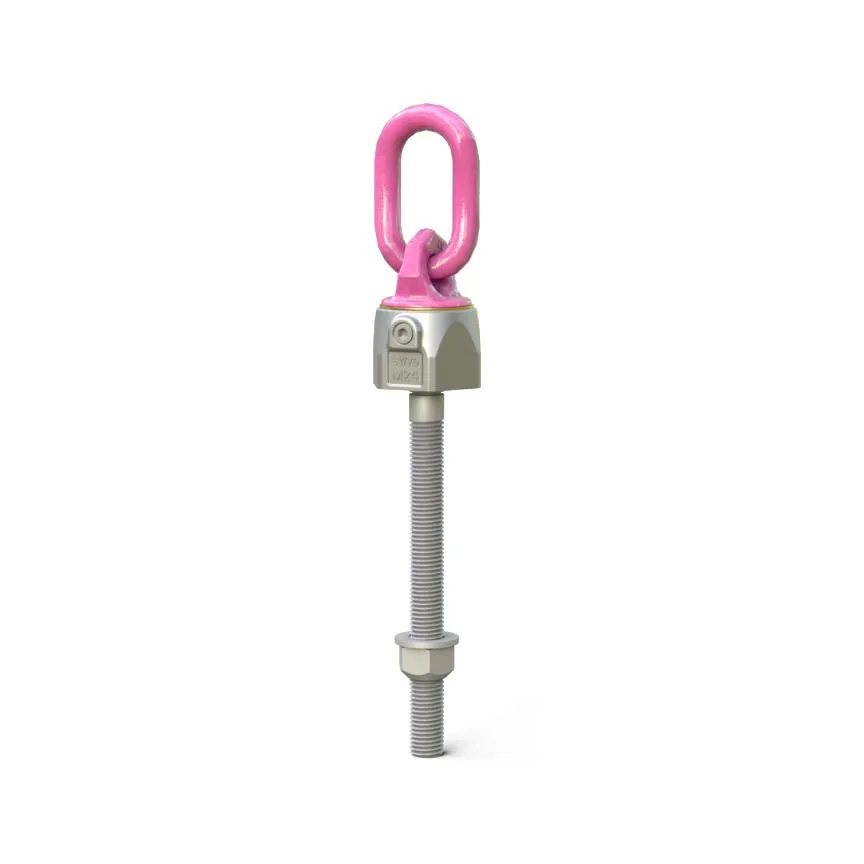

RUD CHAIN 7100800 VWBG-V 2t-M20 Load Ring, 180 Pivot, 4400 Lbs. Load Capacity, 360 Swivel Angle, Powder Coated, Metric
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€573.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Bail Dia. | 12.7 mm |
| Bail Dia. | 1/2" |
| Bail Inside Length | 2 1/8" |
| Bail Inside Width | 1 3/8" |
| Bail Thickness | 1/2" |
| Color | Pink |
| Dimension B | 53.98 mm |
| Dimension C | 34.93 mm |
| Dimension E | 136.53 mm |
| Dimension F | 33.34 mm |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot, Swivel |
| Installation Torque | 52 ft.-lb. |
| Installation Torque | 69.96 N-m |
| Load Capacity | 1995.8 Kg |
| Material | Steel |
| Max. Operating Temp. | 350°C |
| Maximum Operating Temperature | 662°F |
| Mfr. Series | VWBG-V Series |
| Min. Operating Temp. | -40°C |
| Minimum Installation Torque | 51.6 lbs.-ft. |
| Minimum Operating Temperature | -40°F |
| Mount Type | Screw On |
| Mounting Style | Screw On |
| Nominal Size | M20 |
| Nominal Wll (kg) | 2000 Kg |
| Operation | Lifting |
| Overall Length | 2 1/2" |
| Overall Width | 2 1/8" |
| Pitch | 137 mm |
| Pivot | 230° |
| Pivot | 180 Degrees |
| Pivot Angle | 230° |
| Product Datasheet | rud-chain-7100800.pdf |
| Rotate Angle | 360° |
| Standards | Dguv Test |
| Swivel Angle | 360° |
| System Of Measurement | Metric |
| Thread Projection | 34.93 mm |
| Thread Size | M20 x 2.5 |
| Usable Thread Length | 1 3/8" |
| Working Load Limit | 4400 lbs. |
Shipping Info:
| Ship weight (kg) | 1.41 |
| Ship height (cm) | 8.51 |
| Ship length (cm) | 27.51 |
| Ship width (cm) | 9.91 |
| HS code | 7326908588 |
| Country of Origin | DE |
Documentation:
Product Variants
| Model | Material | Thread Size | System Of Measurement | Pivot | Swivel Angle | Finish | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 7103720 | Steel | M8 x 1.25 | Metric | 230° | - | Powder Coated | 299.37 Kg | €334.72 | |
| 7103715 | Steel | M10 x 1.5 | Metric | 230° | 360° | Powder Coated | 449.06 Kg | €357.53 | |
| 7100180 | Steel | M12 x 1.75 | Metric | 230° | 360° | Powder Coated | 598.74 Kg | €373.48 | |
| 7100430 | Steel | M16 x 2 | Metric | 230° | 360° | Powder Coated | 1297.27 Kg | €399.55 | |
| 7100640 | Steel | M24 x 3 | Metric | 230° | 360° | Powder Coated | 3492.66 Kg | €854.58 | |
| 7100650 | Steel | M30 x 3.5 | Metric | 230° | 360° | Powder Coated | 4989.51 Kg | €1,122.63 | |
| 8600337 | - | - | - | - | - | - | - | €254.86 |
