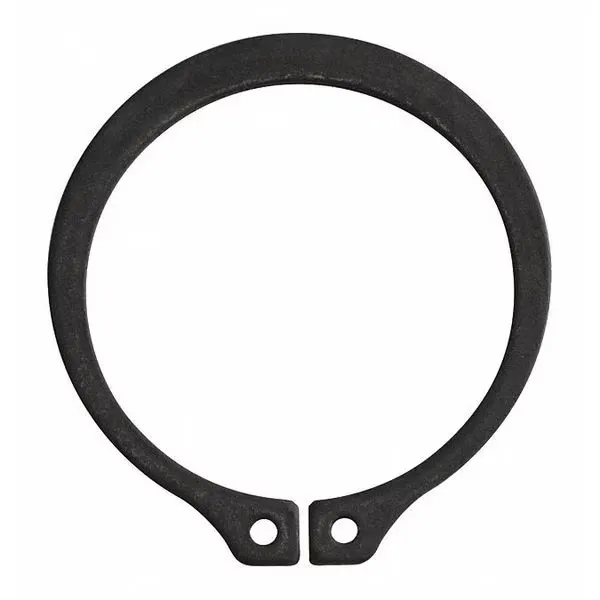

ROTOR CLIP SH-215 Retaining Ring, External, Circlip, 0.078 Inch Thk, 2.032 Inch Grv Dia., Steel
Item: CT9DZAModel: SH-215Cross Ref: 63VA19
7 In Stock
Ships within 2 days via
5.00% off
€2.62 /unit
This product can only be shipped in multiples of 25Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Retaining Ring |
| Assembly Type | Axially Assembled |
| Clearance Dia. | 2.688" |
| Clearance Dia. Expanded Over Shaft | 2.81" |
| Clearance Dia. Released In Groove | 2.69" |
| Clearance Dia. Type | Expanded, Released , Released |
| Finish | Black Phosphate |
| Fits Groove Depth | 0.062" |
| Fits Groove Dia. | 2.032" , 2.038" |
| Fits Groove Width | 0.086" |
| For Shaft Dia. | 2 5/32" |
| For Use With | Shaft |
| Free Inside Dia. | 1.99" , 1.993" |
| Free Inside Dia. Tolerance | -0.025" to +0.015" |
| Free Outside Dia. | 2.008" |
| Grade | Not Graded |
| Groove Dia. Tolerance | -0.006" to +0.006" |
| Groove Width Tolerance | 0" to +0.005" |
| Hole Dia. | 0.125" |
| Hole Dia. Tolerance | -0.002" to +0.015" |
| Installation Method | Snap-Ring Pliers |
| Load Capacity | 5000 lbs. |
| Lug Height | 0.28" |
| Lug Height Tolerance | -0.005" to +0.005" |
| Material | Spring Steel |
| Material Grade/class | Ungraded |
| Max. Allowable Corner Chamfer | 0.058" |
| Max. Allowable Corner Radius | 0.097" |
| Max. Gaging Dia. | 2.3" |
| Max. Section Size | 0.212" |
| Max. Section Size Tolerance | -0.007" to +0.007" |
| Min. Section Size | 0.113" |
| Min. Section Size Tolerance | -0.007" to +0.007" |
| Product Type | External |
| Retaining Ring Style | Circlip |
| Ring Sub-type | Standard |
| Ring Type | External Retaining Ring |
| System Of Measurement | Imperial |
| Thickness | 0.075" |
| Thickness Tolerance | -0.003" to +0.003" |
| Thrust Load Groove | 9450 lbs. |
| Thrust Load Ring | 20097 lbs. |
| Type | External |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 0.2 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | System Of Measurement | Type | Material | Thickness | Free Inside Dia. | Load Capacity | Finish | Retaining Ring Style | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SH-25SS | Imperial | External | Stainless Steel | 0.025" | 0.225" | 470 lbs. | Plain | Circlip | 10 | €12.04 | |
| SH-28SS | Imperial | External | Stainless Steel | 0.025" | 0.256" | 470 lbs. | Plain | Circlip | 10 | €12.71 | |
| SH-31SS | Imperial | External | Stainless Steel | 0.025" | 0.281" | 470 lbs. | Plain | Circlip | 10 | €10.53 | |
| SH-34SS | Imperial | External | Stainless Steel | 0.025" | 0.309" | 470 lbs. | Plain | Circlip | 10 | €12.29 | |
| SH-37SS | Imperial | External | Stainless Steel | 0.025" | 0.338" | 470 lbs. | Plain | Circlip | 10 | €10.99 | |
| SH-40SS | Imperial | External | Stainless Steel | 0.025" | 0.366" | 470 lbs. | Plain | Circlip | 10 | €15.61 | |
| SH-43SS | Imperial | External | Stainless Steel | 0.025" | 0.395" | 470 lbs. | Plain | Circlip | 10 | €13.21 |
