ROBERTSHAW RS8210 Digital Wall Thermostat, Non-Progra mmable, Heat Pump With Aux
Item: CT9CCWModel: RS8210Cross Ref: 361YG0
7 In Stock
Ships within 2 days via
10.00% off
€84.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pump |
| Application | Heat And Cool |
| Backlit Screen Color | Blue |
| Backlit Type | 5 sec. |
| Battery Type | (2) AAA Batteries |
| Changeover Type | Manual |
| Compatible System Type | Heat Pump With Aux |
| Contact Rating | 18/30V AC |
| Control Type | Calibration Setting |
| Dehumidification Control | No |
| Differential Temp. | +0.2°F to +2°F |
| Differential Type | Adjustable |
| Digit Size | Large, Easy Read |
| Display Type | Digital |
| Dual Transformer Compatible | No |
| Electrical Connection Type | Hardwired |
| Filter Change Reminder | Yes |
| Frequency | 50/60 Hz |
| Housing Color | White |
| Housing Material | Plastic |
| Humidification Control | No |
| Includes Positive Off | Yes |
| Key Pad Lockout | No |
| Lead Material | Copper |
| Max. Control Temp. | 90°F |
| Max. Operating Temp. | 95°F |
| Maximum Operating Humidity | 90% |
| Millivolt Compatible | Yes |
| Min. Control Temp. | 44°F |
| Min. Operating Temp. | 41°F |
| Mounting Direction | Horizontal |
| Mounting Location | Junction Box, Wall |
| Mounting Type | Surface Mount |
| Number Of Cooling Stages (conventional System) | 1 |
| Number Of Cooling Stages (heat Pump System) | 1 |
| Number Of Heating Stages (conventional System) | 2 |
| Number Of Heating Stages (heat Pump System) | 1 |
| Number Of Poles | 1 |
| Number Of Relay Control Output | 2 |
| Number Of Relay Inputs | 2 |
| Number Of Relay Outputs | 2 |
| Number Of Zones | 1 |
| Output Signal | Not Applicable |
| Overall Depth | 1" |
| Overall Height | 3 13/16" |
| Overall Width | 4 11/16" |
| Programming Capability | Non-Programmable |
| Shape | Square |
| Stages | 2 H/1 C Conventional |
| Stages Heat Pump | 1 H/1 C Heat Pump |
| Stages Heating/cooling | 2 H/1 C Conventional, 1 H/1 C Heat Pump |
| Standards | Iso 9001 |
| System Settings | Heat-Cool-Off |
| Temp. Differential | 0.2°F to 2°F |
| Temp. Sensitivity | -1°F to +1°F |
| Temperature Limiting | No |
| Temperature Scale | Celsius, Fahrenheit |
| Temporary Program Override | No |
| Temporary Temperature Hold | No |
| Terminal Designations | O/B |
| Thermostat Type | Low Voltage |
| Type | Low Voltage |
| Voltage | 24V AC |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 9.68 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 11.91 |
| Country of Origin | CN |
Product Variants
| Product | Model | Filter Change Reminder | Number Of Relay Inputs | Number Of Relay Control Output | Number Of Relay Outputs | Display Type | Compatible System Type | Application | Terminal Designations | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

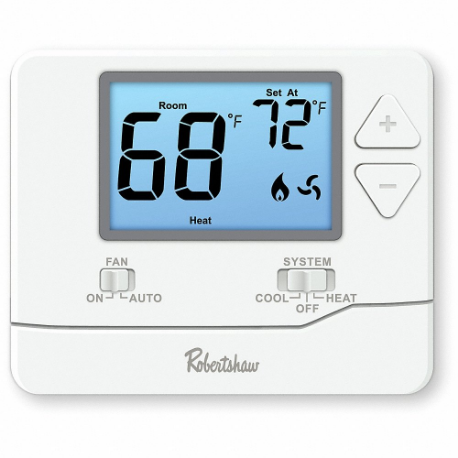

RS8110 | No | 1 | 1 | 1 | Digital | Heat Pump With Aux | Heat And Cool | O/B | €76.98 |
