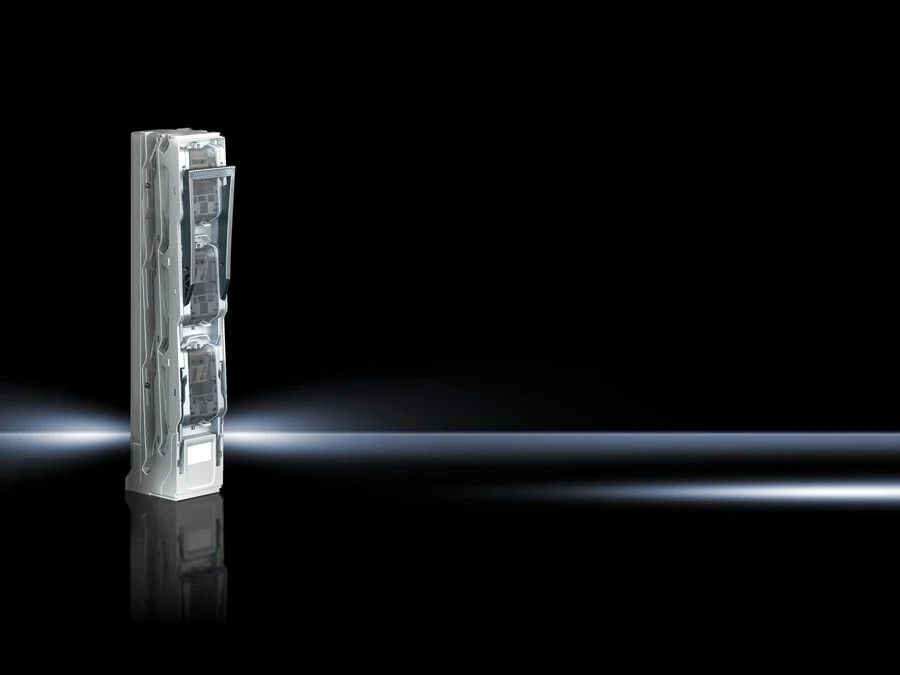

RITTAL SV 9677300 Fuse Switch Disconnector, Size 3, 630 A, 800 V, 3-Pole, M12 Bolt, 185 Mm, For Current Transformer Installation
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Bolt Size | Bolt M12 |
| Cable Outlet Type | Top, Bottom |
| Chasis Color | Ral 7035 |
| Connection For Round Conductor | 6 sq. mm x 240 sq. mm |
| Copper Weight (per Piece) | 2.47 Kg |
| Cover Color | Ral 7001 |
| For Bar Systems With Center To Center Spacing | 185 mm |
| For Converter Installation | Yes |
| For Nh Size | 3 |
| Handle Color | Ral 7016 |
| Height | 26 2/5" |
| Material | Polyamide Fire Protection Corresponding To UL 94-V0 Contact Tracks: Partially Silver-Plated Hard Copper |
| Max. Rated Operating Current | 630A |
| No. Of Poles | 3 |
| Rated Operating Voltage | 800V AC |
| Suitable For Busbars Height | 10 mm |
| Width | 3.94" |
Shipping Info:
| Ship weight (kg) | 5.8 |
| Ship height (cm) | 67.06 |
| Ship width (cm) | 10.01 |
