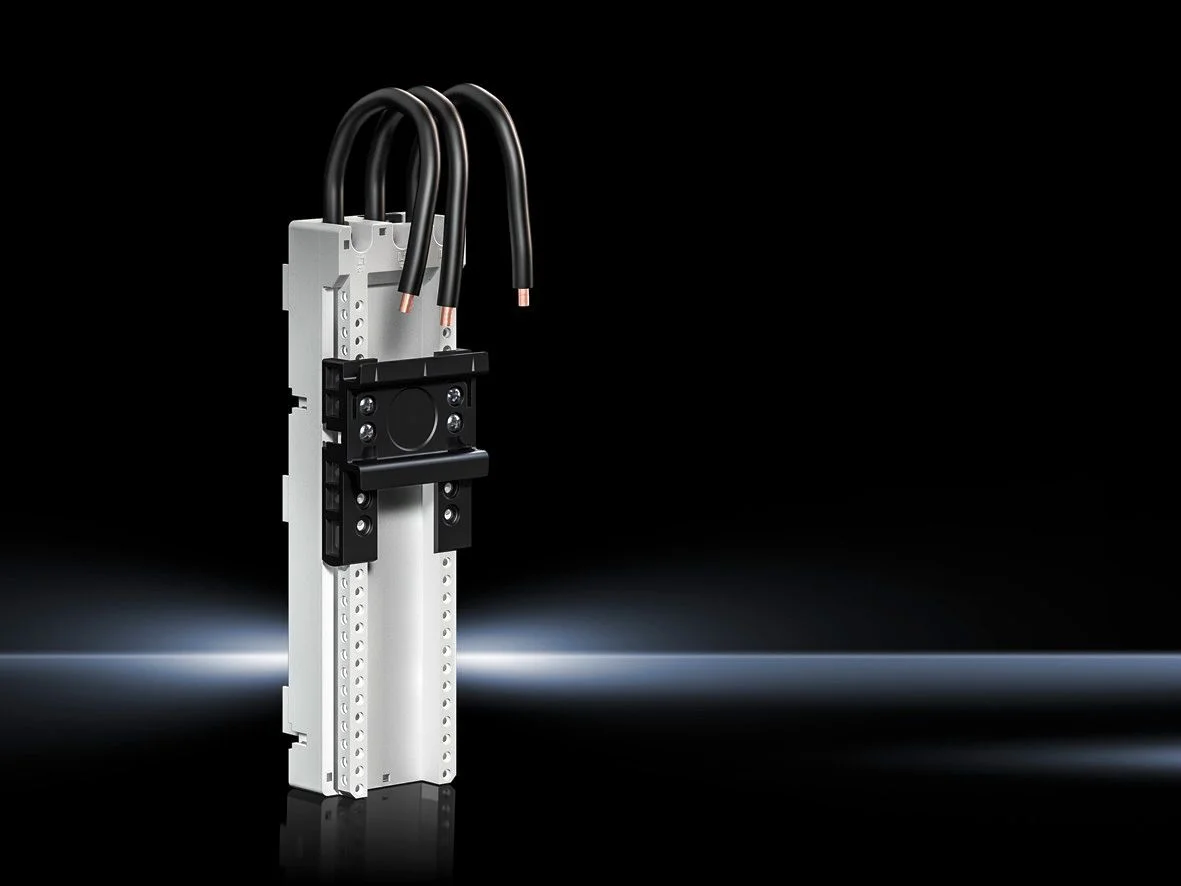

RITTAL SV 9635350 Component Adapter, 32 A, 690 V, 600 V, 3-Pole, Connection Cable Awg 10, 45 X 160 Mm
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Color | RAL 7035 |
| Connection Cables | 10 AWG |
| Copper Weight (per Piece) | 0.055 Kg |
| Depth | 1 9/25" |
| Function Principle | For Mechanical Attachment And Direct Contacting Of Electrical Equipment On The Board |
| Height | 10 mm |
| Length Of Connection Cable | 160 mm |
| Material | Polyamide |
| Max. Rated Amps | 32A |
| Max. Rated Operating Voltage | 600V AC |
| No. Of Poles | 3 |
| No. Of Support Rails | 1 |
| Rated Operating Voltage | 600/690V |
| Support Rail Type | Adjustable |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.58 |
| Ship height (cm) | 16 |
| Ship length (cm) | 3.45 |
| Ship width (cm) | 4.5 |
