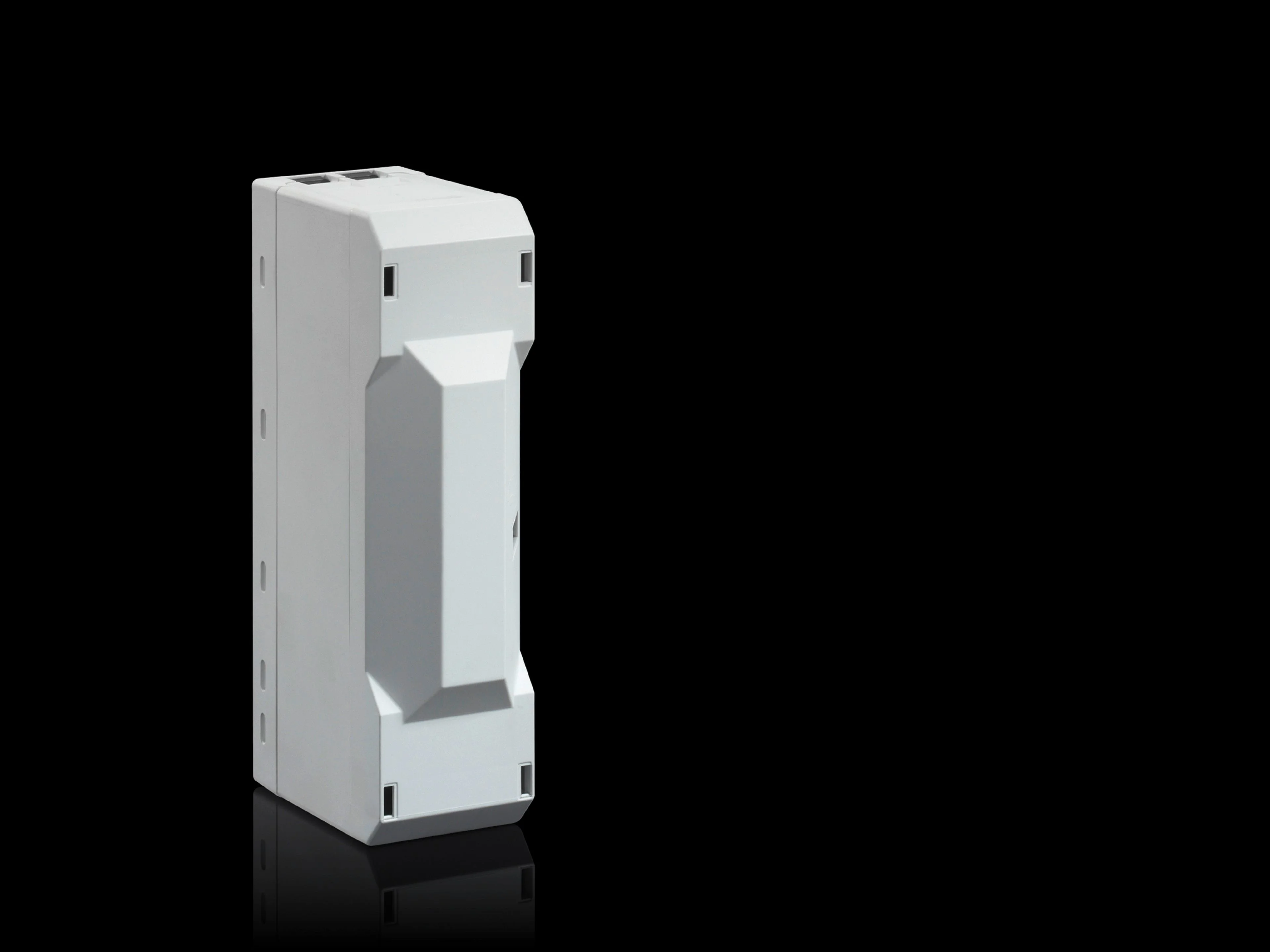

RITTAL SV 9635210 Connection Adapter, 125 A, 690 V, 600 V, 3-Pole, Cable Outlet Top/Bottom, Round Conductor Connection 6-50 Mm²
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 7035 |
| Connection For Round Conductor | 1 AWG to 10 AWG |
| Connection Of Round Conductors, Fine Wire With Wire End Ferrule | 6 sq. mm to 50 sq. mm |
| Connection Of Round Conductors, Fine Wire Without Wire End Ferrule | 6 sq. mm to 50 sq. mm |
| Connection Of Round Conductors, Multi Wire | 6 sq. mm to 50 sq. mm |
| Connection Of Round Conductors, Single Wire | 6 sq. mm to 50 sq. mm |
| Copper Weight (per Piece) | 0.04 Kg |
| Depth | 3 16/25" |
| Function Principle | To Supply Power To The Board |
| Height | 6.3" |
| Material | Polyamide |
| Max. Rated Amps | 125A |
| Max. Rated Operating Voltage | 480/600V AC |
| No. Of Poles | 3 |
| Rated Operating Voltage | 600/690V |
| Type Of Connection (electrical) | Box Terminal |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 16 |
| Ship length (cm) | 9.25 |
| Ship width (cm) | 4.5 |
