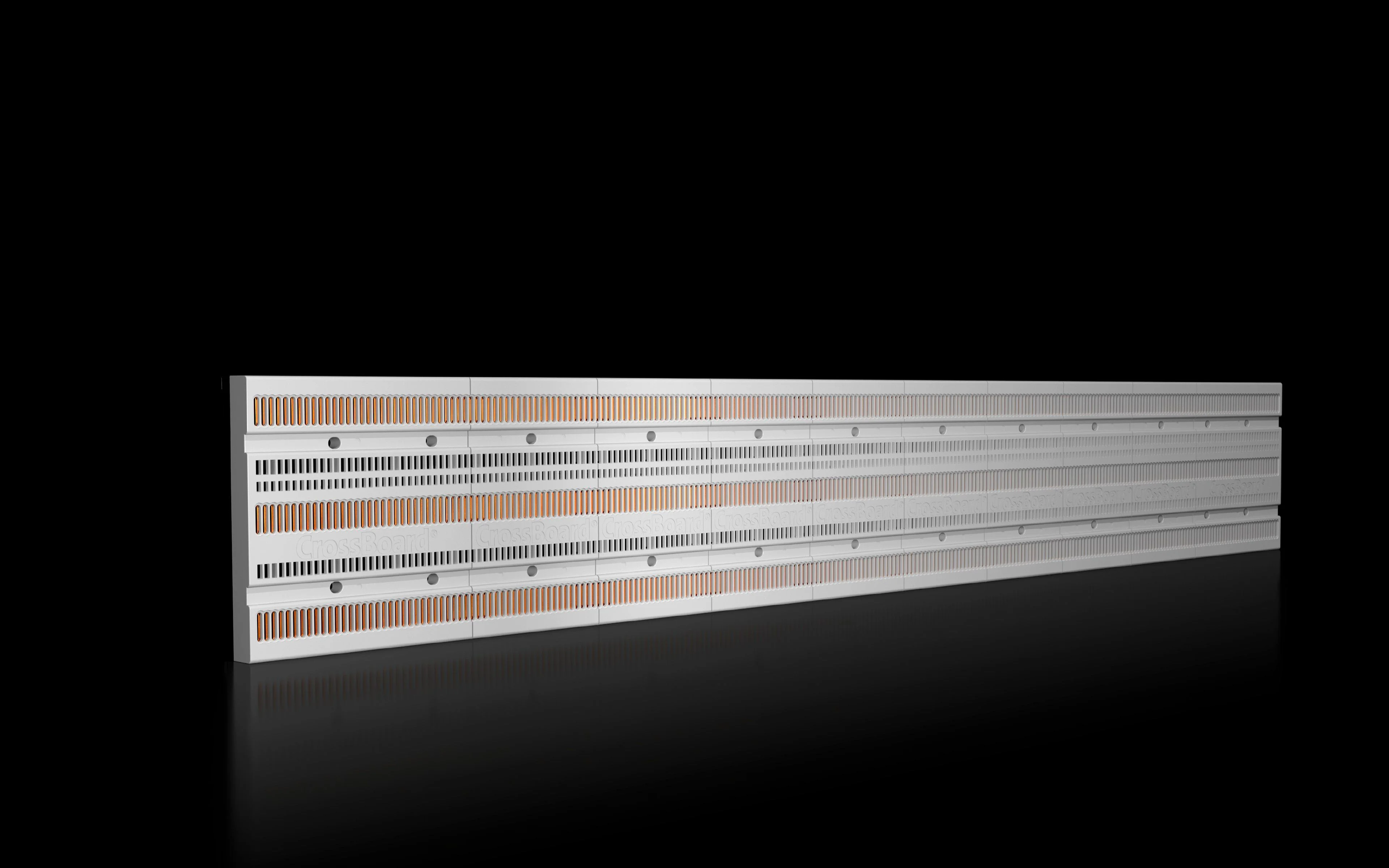

RITTAL SV 9635050 Board, 160 A, 690 V Ac, 600 V Dc, 3-Pole, 1100 X 160 X 45.1 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Board |
| Color | Ral 7035 |
| Copper Weight (per Piece) | 2.47 Kg |
| Depth | 1.78" |
| For Mounting Plate Assembly | Yes |
| Function Principle | Contact-Protected Busbar Board For The Safe Accommodation And Contacting Of Components, Due To Simple Plug-In Mounting, Pre-Punched Pitch Units In The Board Allow Secure, Fast Positioning Of Components, Reduction Of Wiring Effort Due To Direct Contact On The Board |
| Height | 6.3" |
| Material | Polyamide Polycarbonate E-Cu Fire Behavior Corresponding To UL 94 |
| Max. Rated Amps | 160A |
| No. Of Poles | 3 |
| Rated Operating Voltage | 690V |
| Width | 43.3" |
Shipping Info:
| Ship weight (kg) | 4.42 |
| Ship height (cm) | 16 |
| Ship length (cm) | 4.52 |
| Ship width (cm) | 109.98 |
