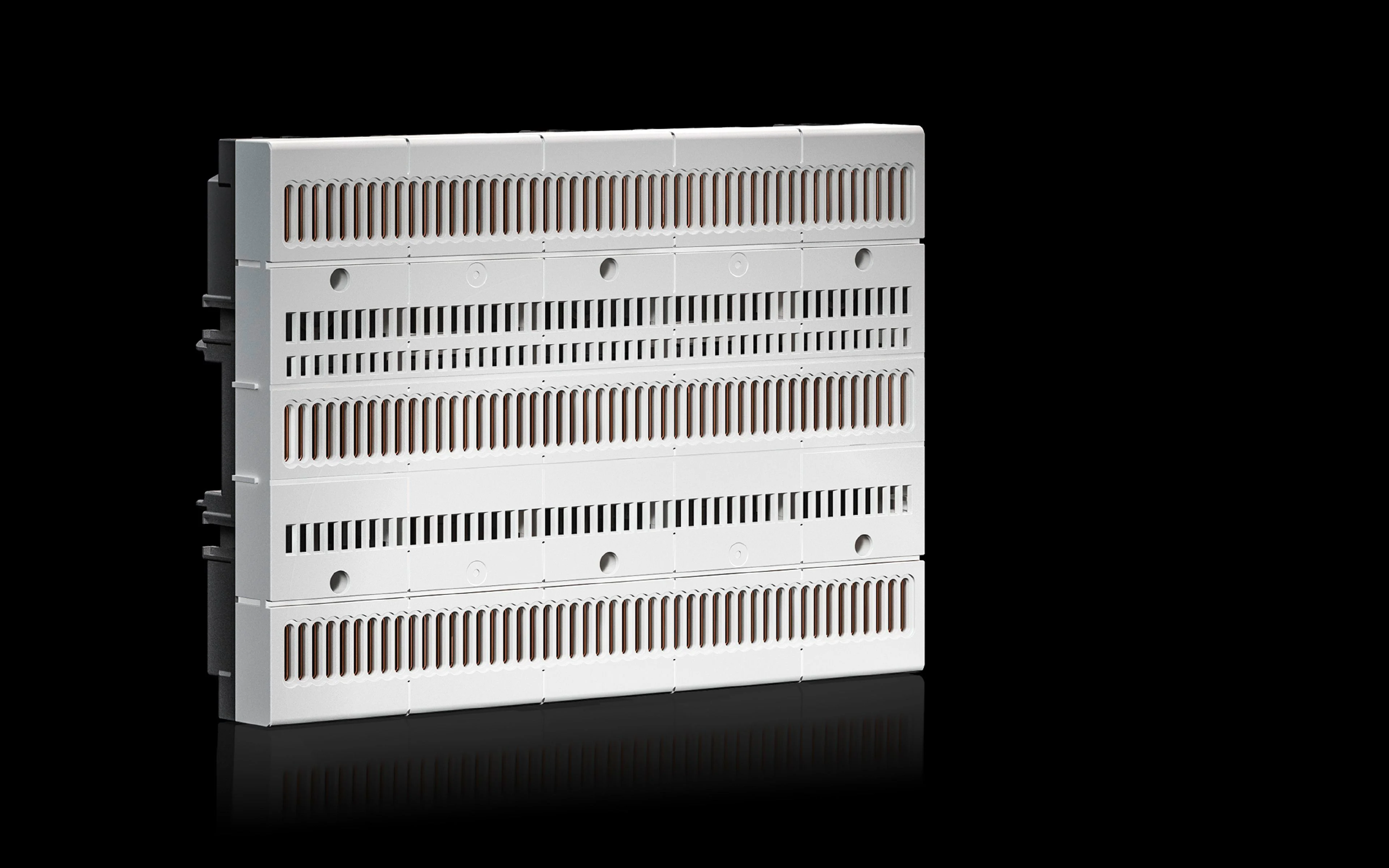

RITTAL SV 9635000 Board, 125 A, 690 V Ac, 600 V Dc, 3-Pole, 225 X 160 X 45.1 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Board |
| Amps | 100A |
| Color | Ral 7035 |
| Copper Weight (per Piece) | 0.302 Kg |
| Depth | 1.78" |
| For Mounting Plate Assembly | Yes |
| For Support Rail Assembly | Yes |
| Function Principle | Contact-Protected Busbar Board For The Safe Accommodation And Contacting Of Components, Due To Simple Plug-In Mounting, Pre-Punched Pitch Units In The Board Allow Secure, Fast Positioning Of Components, Reduction Of Wiring Effort Due To Direct Contact On The Board |
| Height | 6.3" |
| Material | Polyamide Polycarbonate E-Cu Fire Behavior Corresponding To UL 94 |
| Max. Pitch Units @ 45 Mm | 5 |
| Max. Rated Amps | 125A |
| Max. Rated Operating Voltage | 600V |
| No. Of Poles | 3 |
| Rated Operating Voltage | 690V |
| Width | 8.86" |
Shipping Info:
| Ship weight (kg) | 0.8 |
| Ship height (cm) | 16 |
| Ship length (cm) | 4.52 |
| Ship width (cm) | 22.5 |
