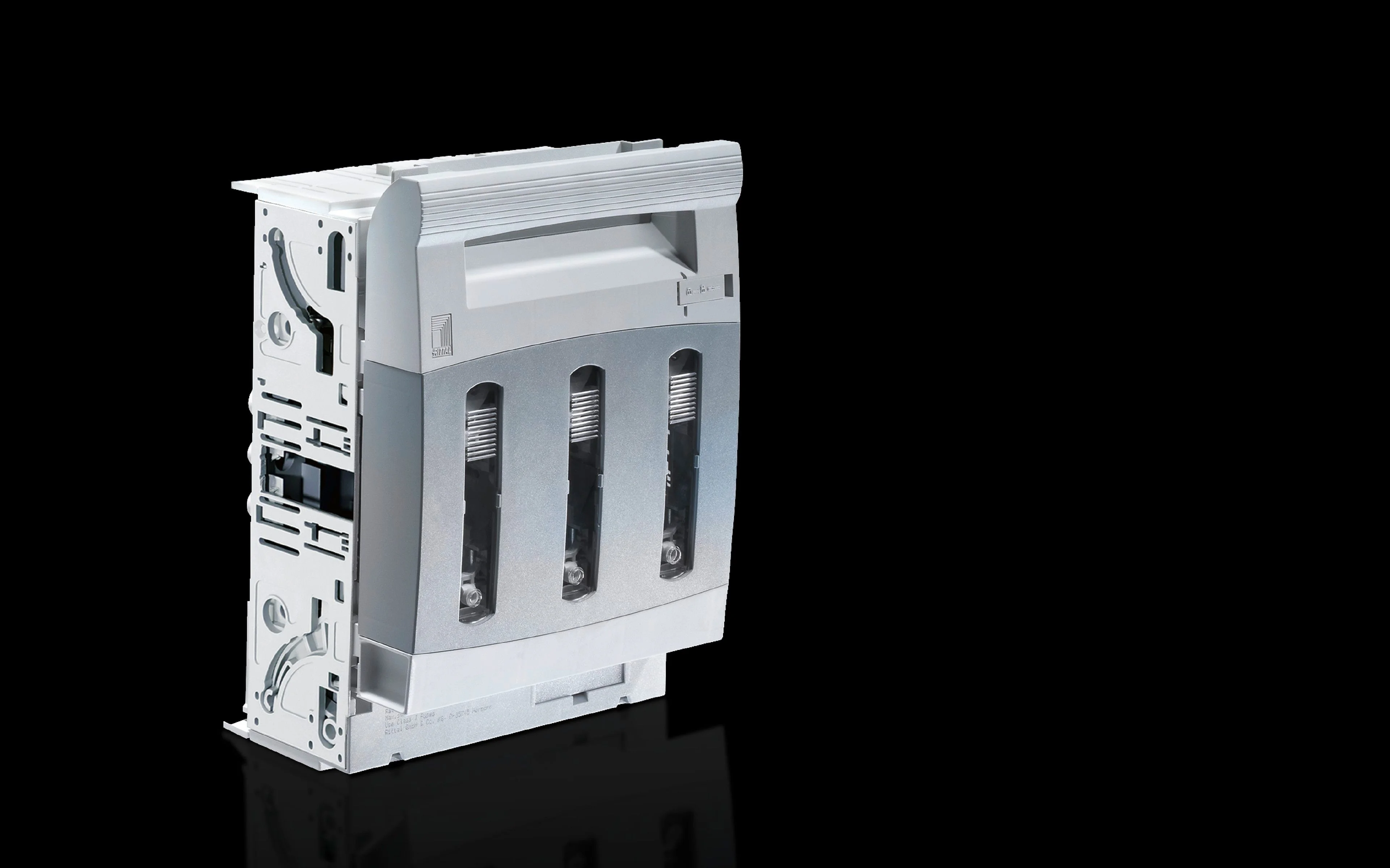

RITTAL SV 9345200 Fuse Holder, Class J, 101-200 A, 600 V, 3-Pole, 60 Mm
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Holder |
| Cable Outlet Type | Top, Bottom |
| Chasis Color | Ral 7035 |
| Connection For Round Conductor | 4/0 AWG to 600 MCM |
| Copper Weight (per Piece) | 1.389 Kg |
| Cover Color | Ral 7035/7001 |
| Electrical Ul Ratings (sccr) | 100 KA-600V, Fuse Class J Max. 200 A, Jddz/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| For Fuse Type (class) | Class J |
| Height | 11.3" |
| Material | Polyamide Fire Protection Corresponding To UL 94-V0 Contact Tracks: Electrolytic Copper, Silver-Plated |
| Max. Rated Operating Current | 200A |
| Min. Rated Operating Amps | 101A |
| No. Of Poles | 3 |
| Rated Operating Voltage | 600V |
| Suitable For Busbars Height | 5 mm, 10 mm |
| Suitable For Fuses Dia. | 41 mm |
| Suitable For Fuses Length | 146 mm |
| Type Of Connection (electrical) | Box Terminal |
| Width | 8.27" |
Shipping Info:
| Ship weight (kg) | 3.9 |
| Ship height (cm) | 28.7 |
| Ship length (cm) | 14.61 |
| Ship width (cm) | 21.01 |
