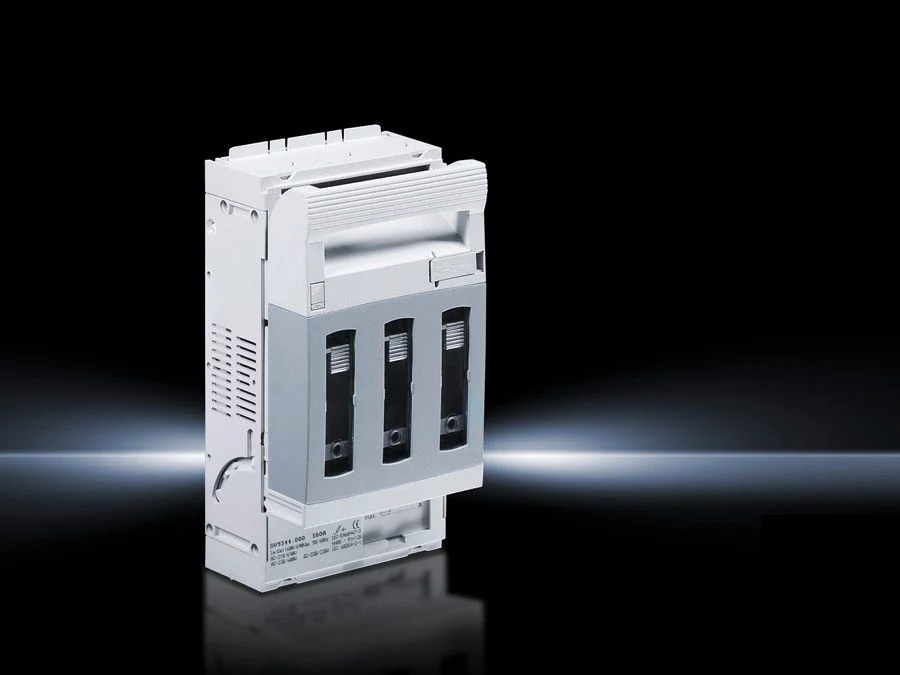

RITTAL SV 9344010 Nh Fuse-Switch Disconnector, Size 00, 160 A, 690 V, 3-Pole, Screw M8, For Mounting Plate Assembly
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Cable Outlet Type | Top, Bottom |
| Chasis Color | Ral 7035 |
| Clamping Aread Height For Laminated Copper Bars | 5 mm |
| Clamping Aread Width For Laminated Copper Bars | 20 mm |
| Connection For Round Conductor | 10 sq. mm x 95 sq. mm |
| Copper Weight (per Piece) | 0.15 Kg |
| Cover Color | Ral 7035/7001 |
| For Mounting Plate Assembly | Yes |
| For Nh Size | 0 |
| Height | 7 16/25" |
| Material | Polyamide Fire Behavior Corresponding To UL 94 Contact Tracks: Electrolytic Copper, Silver-Plated |
| Max. Rated Operating Current | 160A |
| No. Of Poles | 3 |
| Rated Operating Voltage | 690V |
| Round Conductor Cross Section | 10 sq. mm to 95 sq. mm |
| Screw Size | Screw M8 |
| Width | 4.17" |
Shipping Info:
| Ship weight (kg) | 0.75 |
| Ship height (cm) | 19.41 |
| Ship width (cm) | 10.59 |
