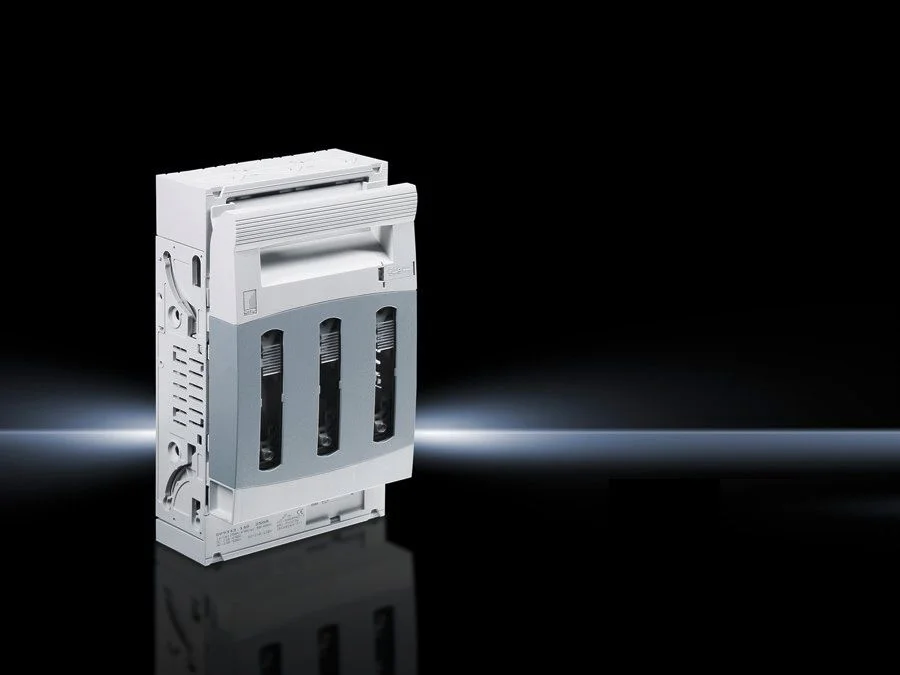

RITTAL SV 9343110 Nh Fuse-Switch Disconnector, Size 1, 250 A, 690 V, 3-Pole, Screw M10
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Cable Outlet Type | Top, Bottom |
| Chasis Color | Ral 7035 |
| Clamping Aread Height For Laminated Copper Bars | 10 mm |
| Clamping Aread Width For Laminated Copper Bars | 32 mm |
| Connection For Round Conductor | 10 sq. mm x 150 sq. mm |
| Copper Weight (per Piece) | 0.44 Kg |
| Cover Color | Ral 7035/7001 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| For Nh Size | 1 |
| Height | 11.7" |
| Material | Polyamide Fire Behavior Corresponding To UL 94 Contact Tracks: Electrolytic Copper, Silver-Plated |
| Max. Rated Operating Current | 250A |
| No. Of Poles | 3 |
| Rated Operating Voltage | 690V |
| Round Conductor Cross Section | 10 sq. mm to 150 sq. mm |
| Screw Size | M10 |
| Suitable For Busbars Height | 5 mm, 10 mm |
| Width | 7 6/25" |
Shipping Info:
| Ship weight (kg) | 2.3 |
| Ship height (cm) | 29.72 |
| Ship width (cm) | 18.39 |
