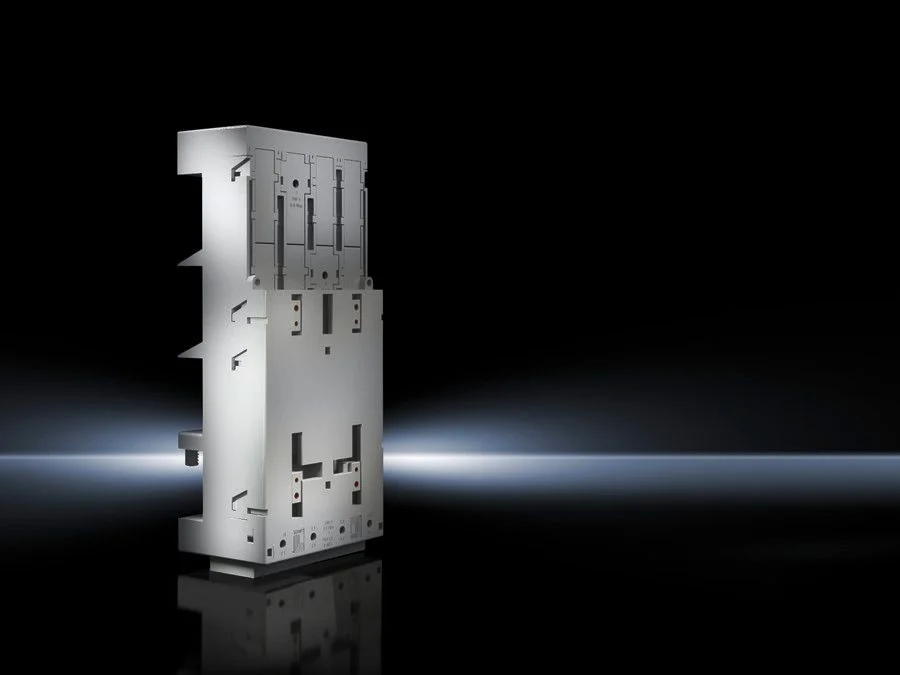

RITTAL SV 9342504 Adapter, 160 A, 690 V, 4-Pole, Cable Outlet Top, Round Conductor Connection 35-120 Mm², Clamping Area 18, 5 X 15, 5 Mm
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Cable Outlet | Top |
| Color | RAL 7035 |
| Connection For Round Conductor | 35 sq. mm x 120 sq. mm |
| Copper Weight (per Piece) | 0.258 Kg |
| Electrical Ul Ratings (sccr) | 65 KA-480V, Circuit Breaker Max. 125 A, Divq/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| Height | 10.9" |
| Material | Polyamide |
| Max. Rated Amps | 160A |
| No. Of Poles | 4 |
| Rated Operating Voltage | 690V |
| Suitable For Busbars Height | 5 mm, 10 mm |
| Type Of Connection (electrical) | Box Terminal |
| Width | 4 18/25" |
Shipping Info:
| Ship weight (kg) | 1.41 |
| Ship height (cm) | 27.69 |
| Ship width (cm) | 11.99 |
