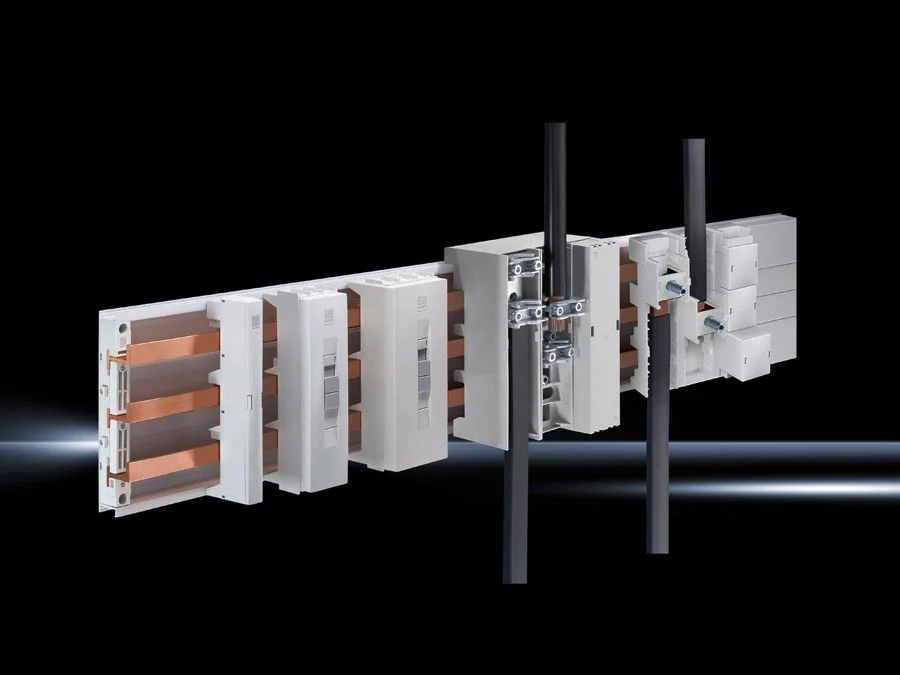

RITTAL SV 9342320 Connection Adapter, 1600 A, 690 V, 3-Pole, Cable Outet Top/Bottom, Clamping Area 65X22/27 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 7035 |
| Copper Weight (per Piece) | 0.408 Kg |
| Electrical Ul Ratings (sccr) | 65 KA-480V, Circuit Breaker Max. 1200 A, Divq/7, 65 KA-600V, Fuse Class L Max. 1600 A, Jddz/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| Height | 8.27" |
| Material | Cover: ABS Punched Section: Polyamide Fire Protection Corresponding To UL 94-V0 |
| Max. Rated Amps | 1600A |
| No. Of Poles | 3 |
| Rated Operating Voltage | 690V |
| Rated Operating Voltage (l1 + L2) | 1000V DC |
| Rated Operating Voltage (l1 + L3) | 1500V DC |
| Suitable For Busbars Height | 5 mm, 10 mm |
| Width | 10" |
Shipping Info:
| Ship weight (kg) | 2.69 |
| Ship height (cm) | 21.01 |
| Ship width (cm) | 25.4 |
