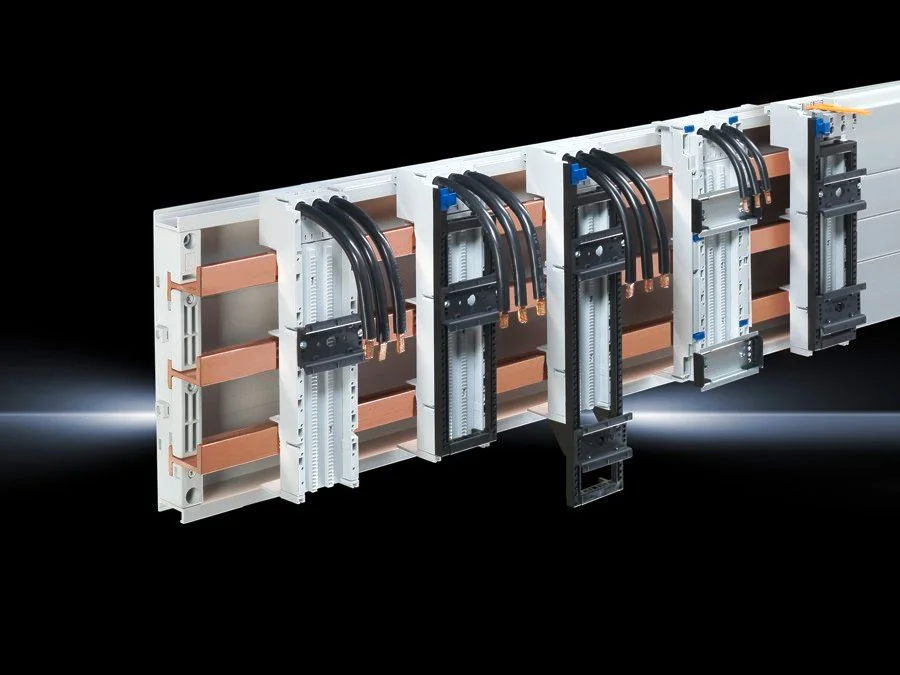

RITTAL SV 9340310 Adapter, 25 A, 690 V, 3-Pole, Connection Cable Awg 12, 45X208 Mm, Support Rail 45C
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Chassis Color | RAL 7035 |
| Connection Cables | 12 AWG |
| Copper Weight (per Piece) | 0.036 Kg |
| Electrical Ul Ratings (sccr) | 30 KA-600V, Fuse Class K5 Max. 60 A, Jddz/7, 50 KA-600V, Fuse Class K5 Max. 35 A, Jddz/7, 65 KA-600V, Fuse Class J Max. 30 A, Jddz/7, 65 KA-600V, Fuse Class K5 Max. 30 A, Jddz/7, 50 KA-480V, Combination Motor Controller Max. 27 A, Nkjh/7, 65 KA-480V, Combination Motor Controller Max. 32 A, Nkjh/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| Height | 8.19" |
| Length Of Connection Cable | 130 mm |
| Material | Polyamide |
| Max. Rated Amps | 25A |
| No. Of Poles | 3 |
| No. Of Support Rails | 1 |
| Rated Operating Voltage | 690V |
| Suitable For Busbars Height | 5 mm, 10 mm |
| Support Rail Type | Without Support Frame, 1 X TS 45C |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 20.8 |
| Ship width (cm) | 4.5 |
