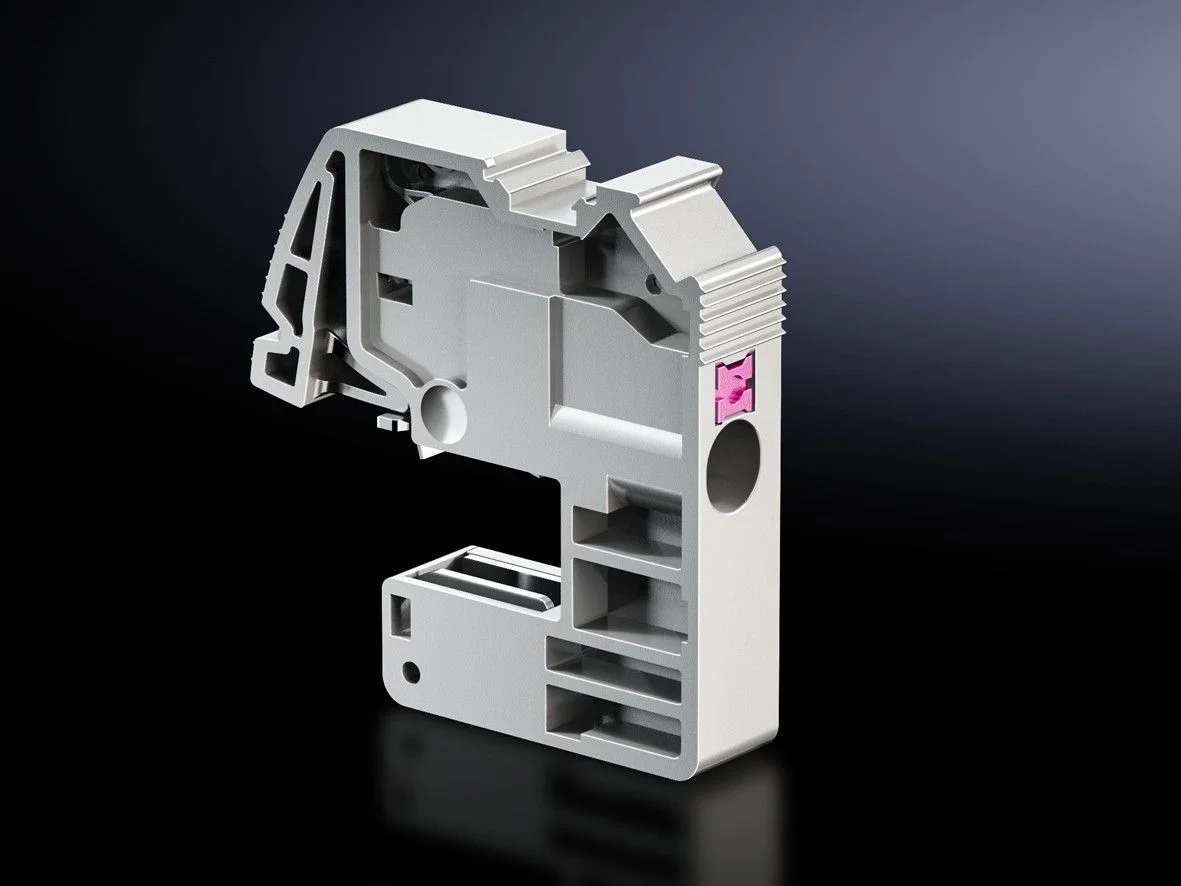

RITTAL SV 3455505 Conductor Connection Clamp, 0, 5-6 Mm ² Push-In, For Bar Thickness 10 Mm
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Connection Clamp |
| Applications | For Use As A Busbar Pick-Off Terminals For L, N, Or Pe Conductors In Switchgear Or Control Systems As Well As Conductor Connection Terminal In Meter Enclosures., For Mounting On E-Cu Or Cuponal Busbars |
| Color | RAL 7042 |
| Connection Of Round Conductors, Fine Wire With Wire End Ferrule | 0.5 sq. mm to 4 sq. mm |
| Connection Of Round Conductors, Fine Wire Without Wire End Ferrule | 0.5 sq. mm to 4 sq. mm |
| Connection Of Round Conductors, Multi Wire | 0.5 sq. mm to 4 sq. mm |
| Connection Of Round Conductors, Single Wire | 0.5 sq. mm to 6 sq. mm |
| For Busbar Thickness | 10 mm |
| Function Principle | Fully Insulated Terminal For Tool-Free Connection Of Conductors, Conductor Is Released By The Integral Release Pin |
| Material | Polyamide |
| Pcf/ve (cradle To Gate) | 0.5 Kg CO2 Eq (Cat B) |
Shipping Info:
| Ship weight (kg) | 0.13 |
