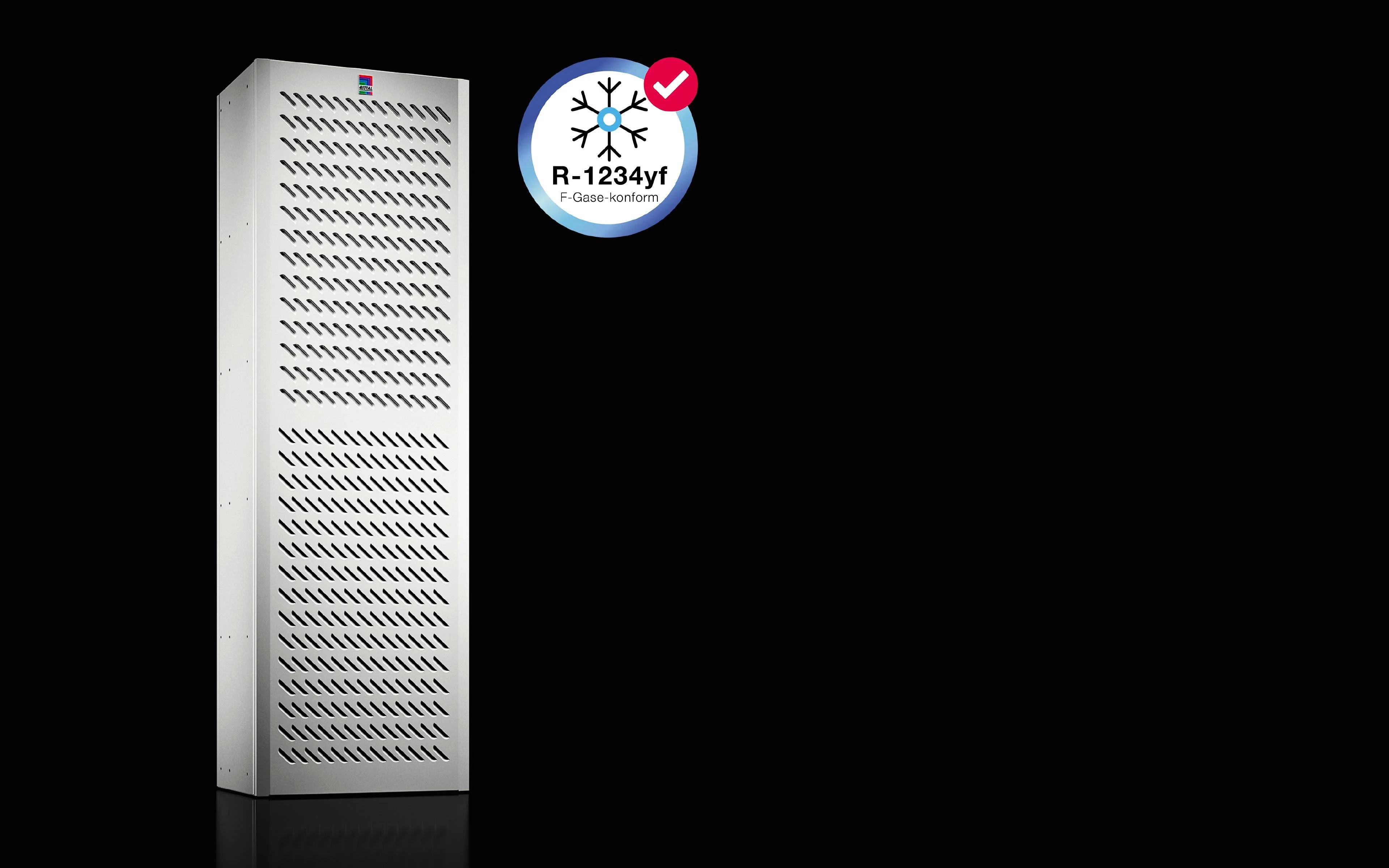

RITTAL SK 3489340 Cooling Unit, Wall-Mounted Outdoor, 4.55 Kw, 380-480 V, 3, 50-60 Hz, Aluminum, 465 X 1640 X 360 Mm
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Unit |
| Air Throughput External Circuit(unimpeded Air Flow) | 1353.7 CFM |
| Color | Ral 7035 |
| Cooling Output L35 L35/50 Hz | 4.55 kW |
| Cooling Output L35 L35/60 Hz | 4.55 kW |
| Cooling Output L35 L50/50 Hz | 2.85 kW |
| Cooling Output L35 L50/60 Hz | 2.85 kW |
| Depth | 14 1/5" |
| Height | 64 3/5" |
| Installation Type | Universal Installation (Surface-Mounting, Partial Internal Installation And Full Internal Installation) |
| Material | Aluminum, AlMg3 |
| Noise Pressure Level | 71 dBA |
| Operating Temp. Range | -30°C to +60°C |
| Operating Temp. Range Of Heat Pipe | -30°C to +45°C |
| Operating Temp. Range Of Refrigerant Circuit (active) | 3°C to 60°C |
| Options | For Remote Monitoring And Networking Of Cooling Units And Chillers, Use The Blue EPlus Generation Iot Interface, Item Number 3124.300. Increase Machine Availability And Process Safety By Remote Monitoring Of Device Data, Condition, And System Messages. |
| Pcf/ve (cradle To Gate) | 435.2 Kg CO2 Eq (Cat B) |
| Permissible Operating Pressure (p. Max.) | 2.4 |
| Rated Operating Voltage | 380-480V |
| Rated Output | 2.35 kW |
| Rated Power L35 L35/50 Hz | 2.35 kW |
| Rated Power L35 L35/60 Hz | 2.35 kW |
| Rated Power L35 L50/50 Hz | 1.7 kW |
| Rated Power L35 L50/60 Hz | 1.7 kW |
| Refrigeration Factor L35 L35 (eer) 50 Hz | 1.94 Hz |
| Refrigeration Factor L35 L35 (eer) 60 Hz | 1.94 Hz |
| Setting Range | 20°C to 50°C |
| Storage Temp. | -40°C to +70°C |
| Suitable For Model No. | 9782.828, 9783.888 |
| Surface Finish | Powder Coated Uv Resistant Pure Polyester |
| Temp. Control | E+ Controller (Factory Setting +35°C) |
| Width | 18.3" |
Shipping Info:
| Ship weight (kg) | 88.11 |
| Ship height (cm) | 180.09 |
| Ship length (cm) | 36.07 |
| Ship width (cm) | 46.48 |
