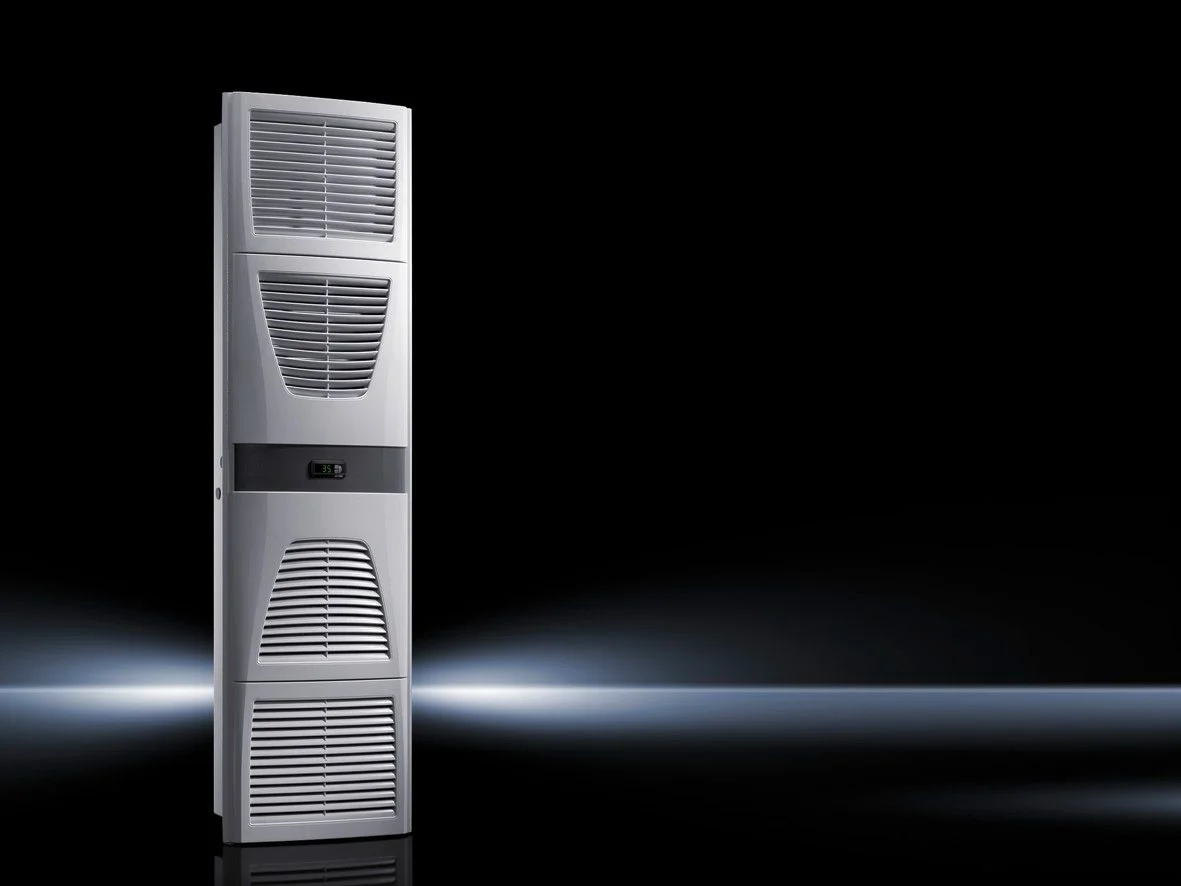

RITTAL SK 3366505 Cooling Unit, Wall-Mounted, 4265 Btu/H, 230 V, 1, 50-60 Hz, Carbon Steel, 435 X 1590 X 205 Mm
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Unit |
| Air Throughput External Circuit(unimpeded Air Flow) | 535.6 CFM |
| Color | Ral 7035 |
| Cooling Output L35 L35/50 Hz | 1.25 kW |
| Cooling Output L35 L35/60 Hz | 1.25 kW |
| Cooling Output L35 L50/50 Hz | 0.85 kW |
| Cooling Output L35 L50/60 Hz | 0.92 kW |
| Depth | 8.07" |
| Height | 62 3/5" |
| Material | Carbon Steel |
| Max. Rated Amps | 6.5A @ 50 Hz, 6.9A @ 60 Hz |
| Max. Start Up Amps | 21A @ 50 Hz, 23A @ 60 Hz |
| Miniature Circuit Breaker/fuse Amps | 10A |
| Operating Temp. Range | 10°C to 55°C |
| Permissible Operating Pressure (p. Max.) | 28 Bar |
| Rated Operating Voltage | 230V |
| Rated Power L35 L35/50 Hz | 0.74 kW |
| Rated Power L35 L35/60 Hz | 0.8 kW |
| Rated Power L35 L50/50 Hz | 0.8 kW |
| Rated Power L35 L50/60 Hz | 0.9 kW |
| Refrigeration Factor L35 L35 (eer) 50 Hz | 1.69 Hz |
| Refrigeration Factor L35 L35 (eer) 60 Hz | 1.79 Hz |
| Setting Range | 20°C to 50°C |
| Special Design | Flat |
| Storage Temp. | -40°C to +70°C |
| Temp. Control | E-Comfort Controller (Factory Setting +35°C) |
| Width | 17.1" |
Shipping Info:
| Ship weight (kg) | 58.41 |
| Ship height (cm) | 159 |
| Ship length (cm) | 20.5 |
| Ship width (cm) | 43.43 |
