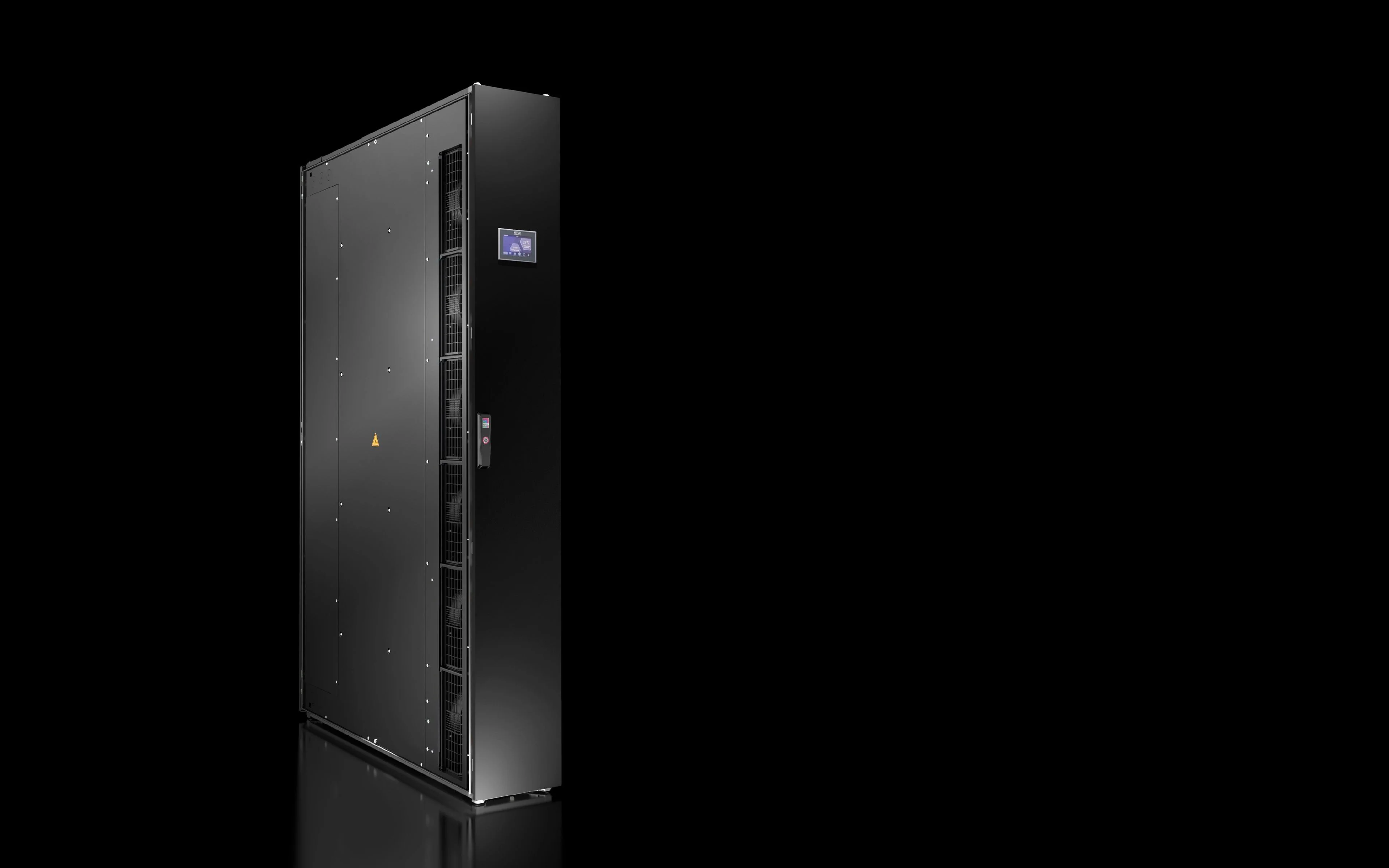

RITTAL SK 3314568 Cooling Package, 53 Kw, Ul, 300 X 2000 X 1200 Mm, Ral 9005, Fine Structure Matt, Carbon Steel
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Package |
| Air Throughput (unimpeded Air Flow) | 4708.6 CFM @ 60 Hz |
| Color | Housing- Ral 7035 Front Door- Vertical Sections, Silver Colored And Horizontal Sections, Ral 9005 Ral 9005 |
| Cooling Medium | Water |
| Cooling Output | 53 kW |
| Depth | 47 1/5" |
| Duty Cycle | 100% |
| Ec Fan | Yes |
| Function Principle | The Hot Air Is Drawn In From The Room Or Hot Aisle At The Rear Of The Device And Expelled At The Front Into The Cold Aisle After Cooling. With This Product, A Raised Floor Is Not Necessary |
| Height | 78.7" |
| Installation In Bayed Enclosure Suite | Protruded |
| Material | Housing: Carbon Steel Front Door: Aluminum, Anodized/Spray-Finished Carbon Steel, Spray Finished |
| Max. Cooling Output | 53 kW |
| No. Of Fan Modules | 6 |
| Options | Automatic Server Enclosure Door Opening Direct Connection Of An Additional 16 CMC III Sensors Is Possible Racks In Height 2200 mm, Special Color Condensate Management Kit Including Baffle Plate Separator And Temperature And Humidity Sensor Display |
| Permissible Operating Pressure (p. Max.) | 10 Bar |
| Rated Operating Voltage | 200-240V |
| Suitable For Enclosure Type | VX IT, TS IT |
| Surface Finish | Ral 9005, Fine Structure Matt |
| Temp. Control | Infinitely Variable Fan Control, 2 Way Control Ball Valve |
| Type Of Connection (electrical) | Fixed Connection With Cover |
| Water External Thread | G1 1/2" |
| Water Inlet Temperature | 15°C |
| Width | 11 4/5" |
Shipping Info:
| Ship weight (kg) | 237.6 |
| Ship height (cm) | 199.9 |
| Ship length (cm) | 119.89 |
| Ship width (cm) | 29.97 |
