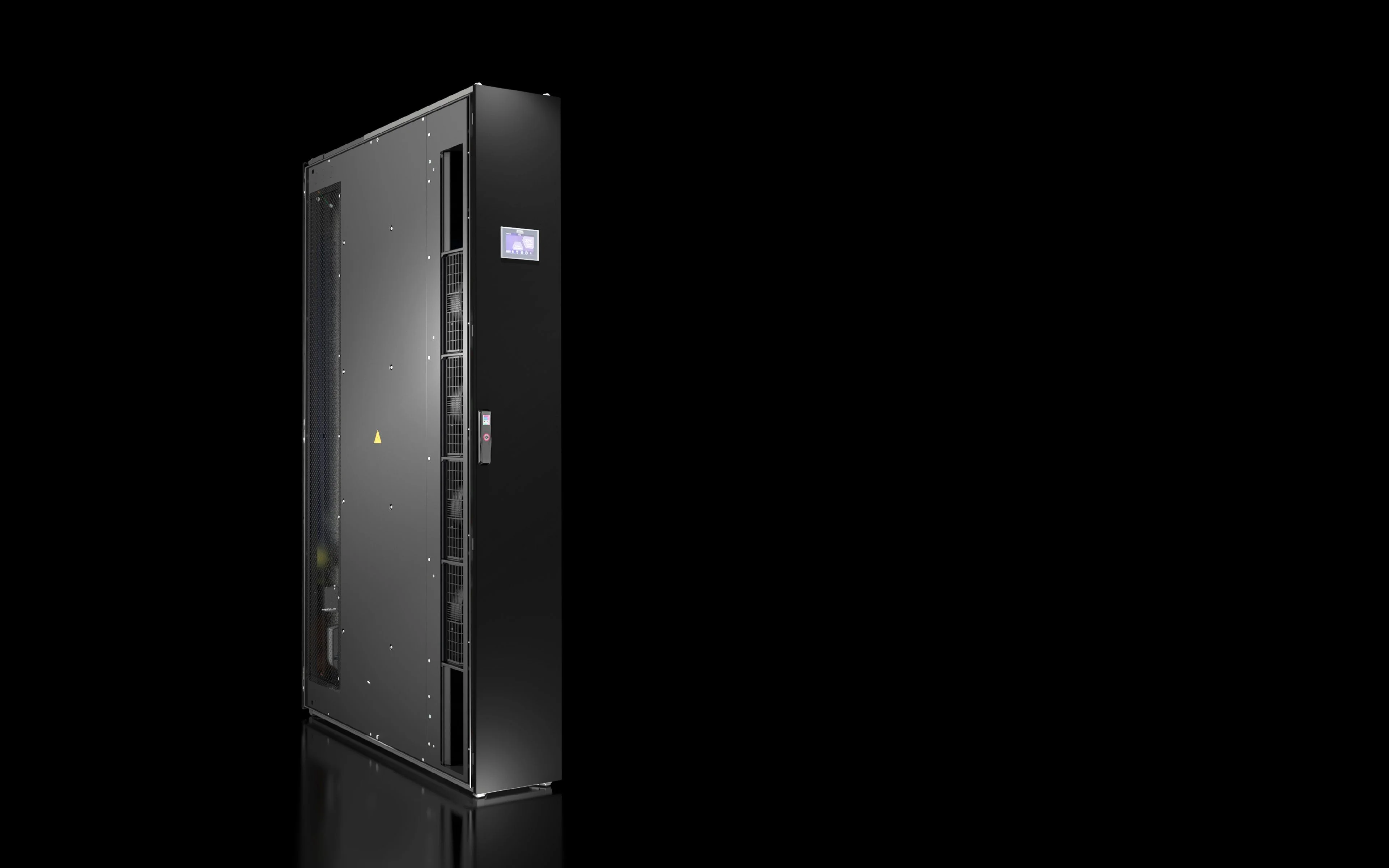

RITTAL SK 3313268 Rack, Base It, Air/Water Heat Exchanger For Rack Cooling, Side Mounting On Rack, Flush, Ral 9005, Carbon Steel
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rack |
| Air Throughput (unimpeded Air Flow) | 4708.6 CFM @ 60 Hz |
| Color | RAL 9005 |
| Cooling Medium | Water |
| Cooling Output | 48/51/53 kW |
| Depth | 47 1/5" |
| Duty Cycle | 100% |
| Finish | Spray Finished |
| Function Principle | The Lcp Draws In The Air At The Sides At The Rear Of The Server Enclosures, Cools It Using High-Performance Compact Impellers, And Blows The Cooled Air Back Into The Front Part Of The Server Enclosure At The Sides |
| Height | 78.7" |
| Installation In Bayed Enclosure Suite | Flush |
| Material | Carbon Steel |
| Max. Cooling Output | 53 kW |
| Monitoring | Monitoring Of All System Relevant Parameters Such As Server Air Intake Temperature, Server Waste Air Temperature, Water Inlet/Return Temperature, Water Flow, Cooling Output, Fan Speed, Leakage., Direct Connection Of The Unit Via Snmp Over Ethernet, Integration Into Rizone |
| No. Of Fan Modules | 4, 5, 6 |
| Options | Fully Integrated Fire Detection And Extinguisher System Automatic Server Enclosure Door Opening Direct Connection Of Additional CMC III Sensors Is Also Possible Racks 2200 mm High |
| Permissible Operating Pressure (p. Max.) | 10 Bar |
| Rated Operating Voltage | 200-240/200-240V |
| Suitable For Enclosure Type | VX IT, TS IT PRO |
| Surface Finish | Ral 9005, Fine Structure Matt |
| Temp. Control | Infinitely Variable Fan Control, 2 Way Control Ball Valve |
| Type Of Connection (electrical) | Connector |
| Version | CW |
| Water External Thread | G1 1/2" |
| Water Inlet Temperature | 15°C |
| Width | 11 4/5" |
Shipping Info:
| Ship weight (kg) | 235.13 |
| Ship height (cm) | 199.9 |
| Ship length (cm) | 119.89 |
| Ship width (cm) | 29.97 |
