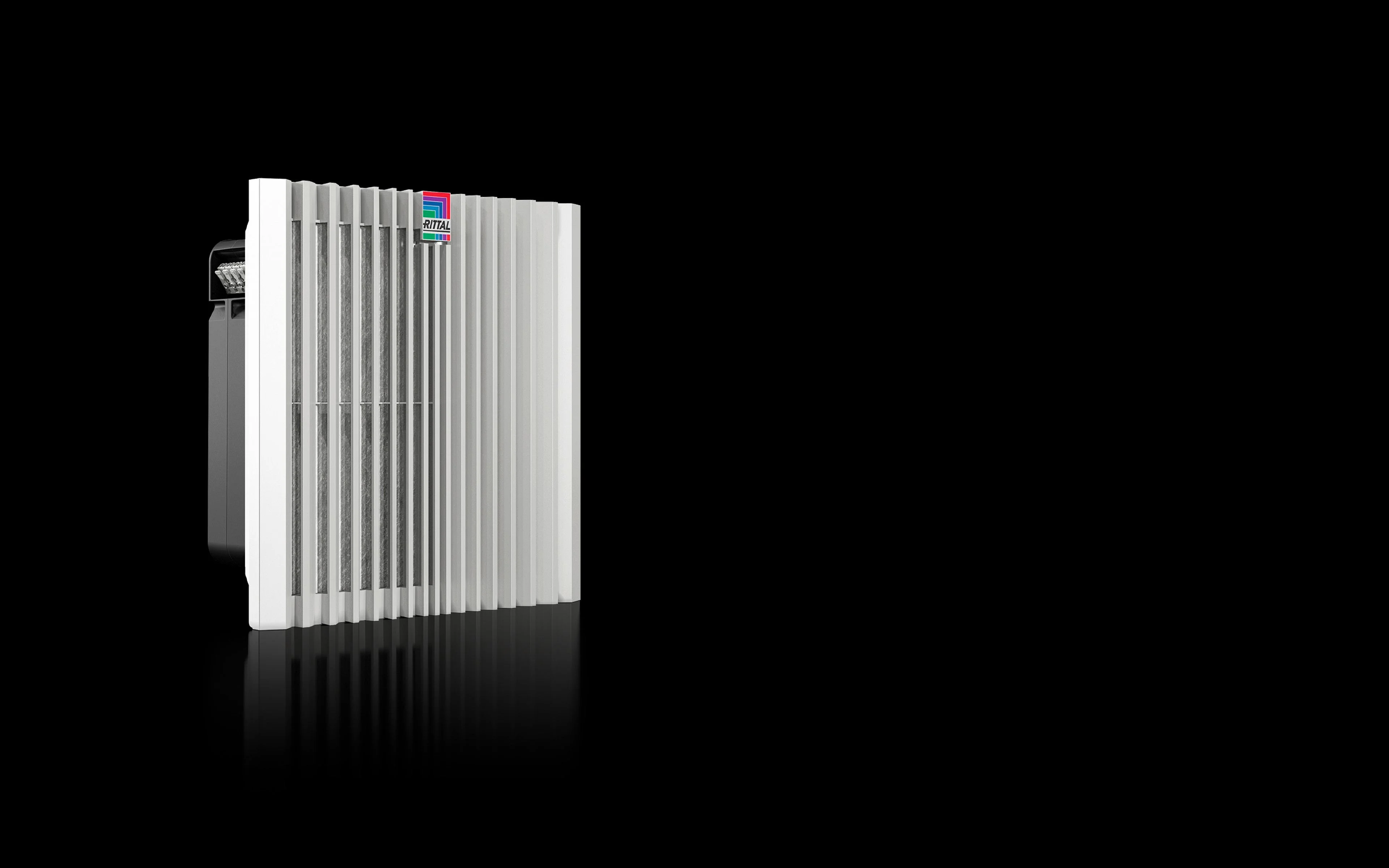

RITTAL SK 3244900 Filter Fan, 867 M³/H, 100 V - 240 V, 1, 50 Hz/60 Hz, 323 X 323 X 161 Mm, Ral 7035
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Filter Fan |
| Airflow With Corresponding Outlet Filter Including Chopped Fiber Filter | 314.89 CFM @ 50 Hz |
| Color | Ral 7035 |
| Depth | 6.34" |
| Fan | Diagonal, EC Motor |
| Height | 12.7" |
| Installation Depth | 141 mm |
| Interfaces | 0-10 V/Pwm Input, Speed Output, Potential-Free Fault Indication Contact, RS485 (Modbus) |
| Material | Plastic |
| Max. Rated Amps | 1.97A @ 50 Hz |
| Miniature Circuit Breaker/fuse Amps | 6A |
| Mounting Cut Out Height | 292 mm |
| Mounting Cut Out Width Of Opening | 292 mm |
| Noise Pressure Level | 66 dBA @ 50 Hz |
| Operating Temp. Range | -25°C to +55°C |
| Rated Operating Voltage | 100-240V |
| Rated Power Pel | 116.4 W @ 50 Hz |
| Storage Temp. | -25°C to +70°C |
| Unimpeded Air Flow (with Chopped Fiber Filter) | 412 CFM @ 50 Hz |
| Unimpeded Air Flow (with Pleated Filter) | 510.3 CFM @ 50 Hz, 510.3 CFM @ 60 Hz |
| Width | 12.7" |
Shipping Info:
| Ship weight (kg) | 4.21 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 16.1 |
| Ship width (cm) | 32.26 |
