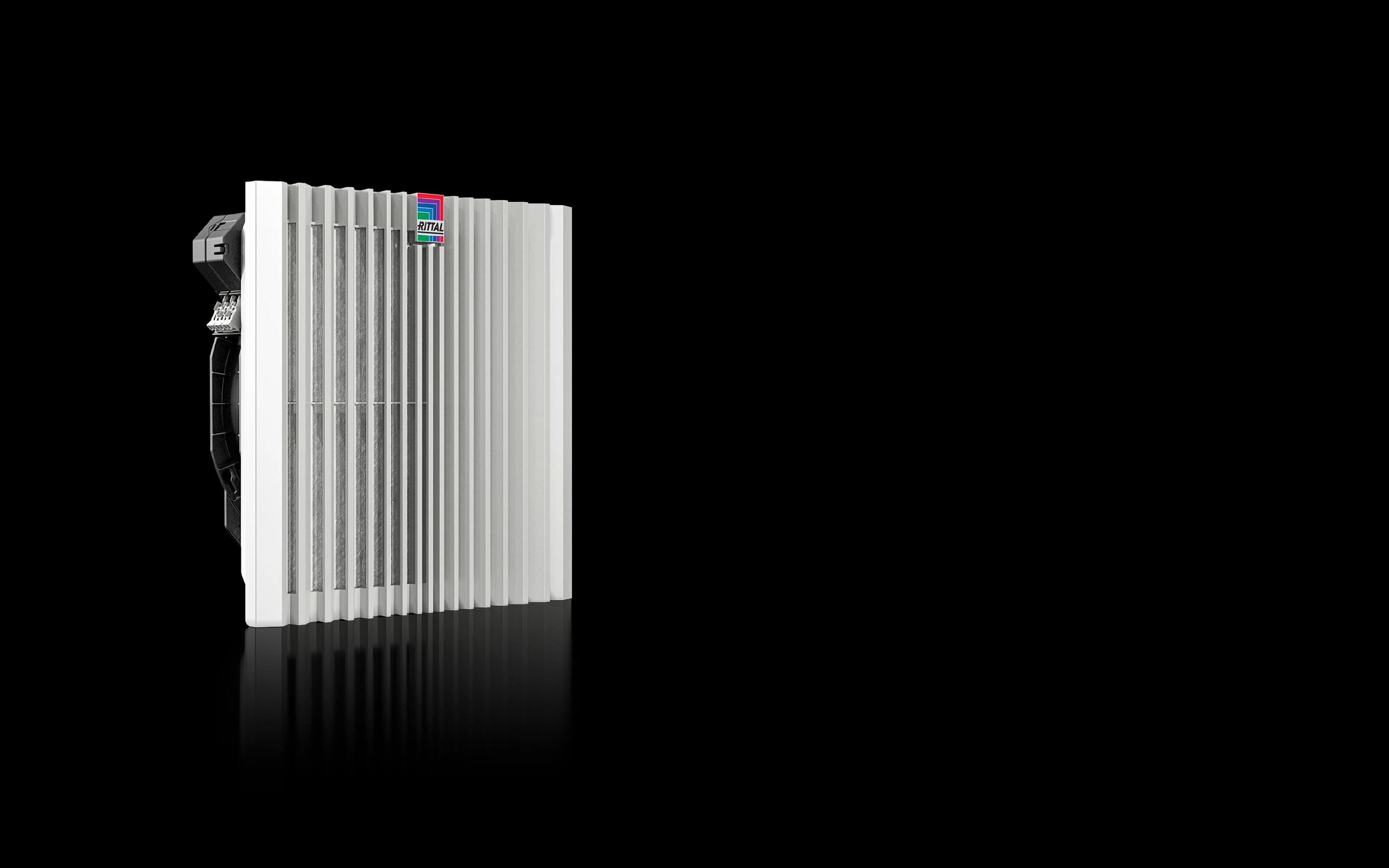

RITTAL SK 3243710 Filter Fan, 625/716 M³/H, 115 V, 1, 50 Hz/60 Hz, 323 X 323 X 144.5 Mm, Ral 7035
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Filter Fan |
| Airflow With Corresponding Outlet Filter Including Chopped Fiber Filter | 261.33 CFM @ 50 Hz, 293.11 CFM @60 Hz |
| Airflow With Corresponding Outlet Filter Including Pleated Filter | 332.55 CFM @ 50 Hz, 379.63 CFM @ 60 Hz |
| Color | Ral 7035 |
| Depth | 5.69" |
| Fan | Diagonal, 1 Capacitor Motor |
| Height | 12.7" |
| Installation Depth | 124 mm |
| Material | Plastic |
| Max. Rated Amps | 0.81A @ 50 Hz, 0.9A @ 60 Hz |
| Miniature Circuit Breaker/fuse Amps | 6A |
| Mounting Cut Out Height | 292 mm |
| Mounting Cut Out Width Of Opening | 292 mm |
| Noise Pressure Level | 62 dBA @ 50 Hz, 65 dBA @ 60 Hz |
| Operating Temp. Range | -30°C to +55°C |
| Rated Operating Voltage | 115V |
| Rated Power Pel | 78.7 W @ 50 Hz, 102.8 W @ 60 Hz |
| Storage Temp. | -30°C to +70°C |
| Unimpeded Air Flow (with Chopped Fiber Filter) | 317.8 CFM @ 50 Hz, 347.3 CFM @ 60 Hz |
| Unimpeded Air Flow (with Pleated Filter) | 367.86 CFM @ 50 Hz, 421.42 CFM @ 60 Hz |
| Width | 12.7" |
Shipping Info:
| Ship weight (kg) | 4.25 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 14.45 |
| Ship width (cm) | 32.26 |
