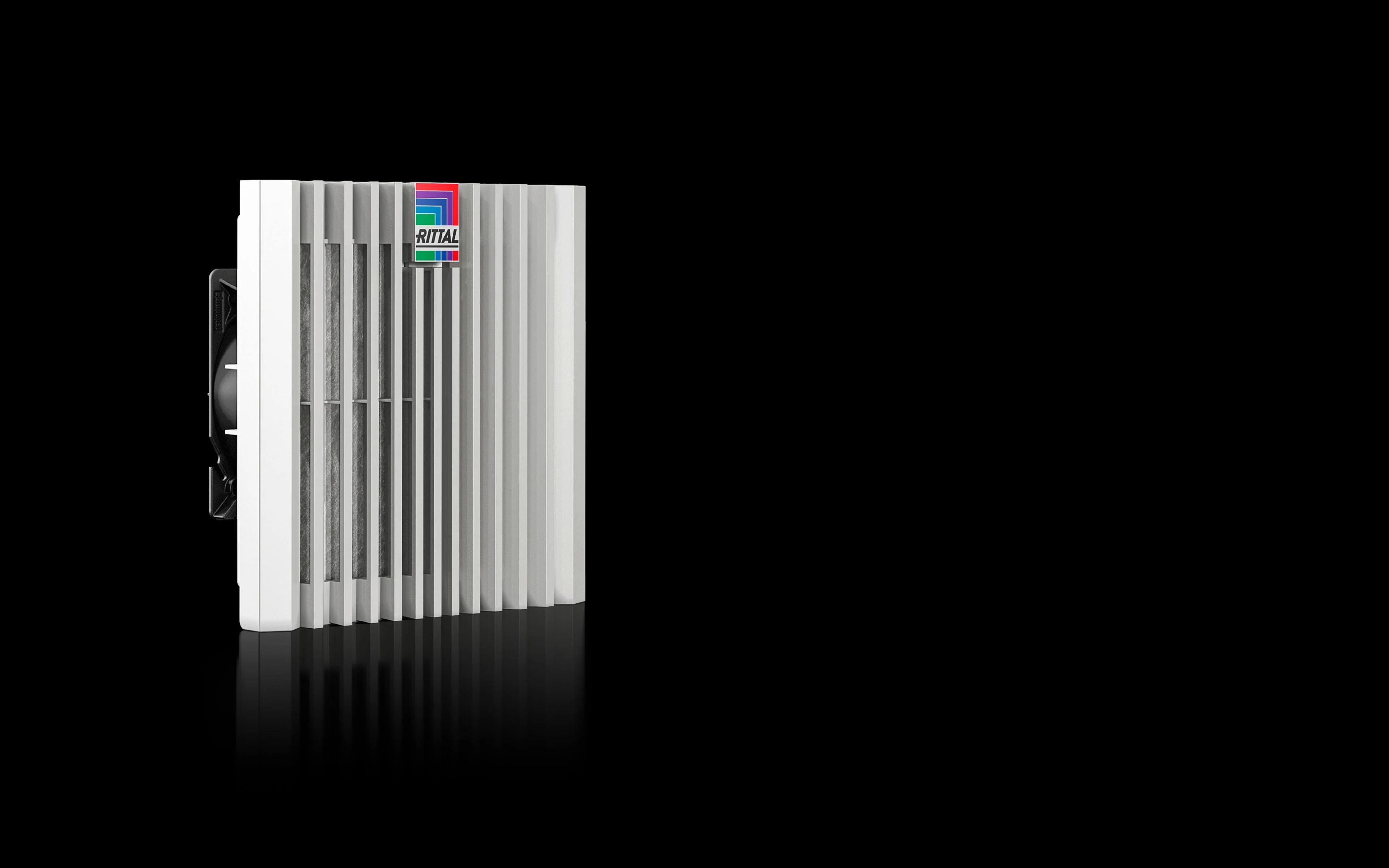

RITTAL SK 3239710 Filter Fan, 110/125 M³/H, 115 V, 1, 50 Hz/60 Hz, 204 X 204 X 105 Mm, Ral 7035
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Filter Fan |
| Airflow With Corresponding Outlet Filter Including Chopped Fiber Filter | 44.14 CFM @ 50 Hz, 50.62 CFM @60 Hz |
| Airflow With Corresponding Outlet Filter Including Pleated Filter | 54.15 CFM @ 50 Hz, 61.21 CFM @ 60 Hz |
| Color | Ral 7035 |
| Depth | 4.13" |
| Fan | Axial, Shaded Pole Motor |
| Height | 8.03" |
| Installation Depth | 84 mm |
| Material | Plastic |
| Max. Rated Amps | 0.2A @ 50 Hz, 0.21A @ 60 Hz |
| Miniature Circuit Breaker/fuse Amps | 2A |
| Mounting Cut Out Height | 177 mm |
| Mounting Cut Out Width Of Opening | 177 mm |
| Noise Pressure Level | 51 dBA @ 50 Hz, 54 dBA @ 60 Hz |
| Operating Temp. Range | -15°C to +55°C |
| Rated Operating Voltage | 115V |
| Rated Power Pel | 15.4 W @ 50 Hz, 15.8 W @ 60 Hz |
| Storage Temp. | -30°C to +70°C |
| Unimpeded Air Flow (with Chopped Fiber Filter) | 58.9 CFM @ 50 Hz, 67.7 CFM @ 60 Hz |
| Unimpeded Air Flow (with Pleated Filter) | 64.74 CFM @ 50 Hz, 73.57 CFM @ 60 Hz |
| Width | 8.03" |
Shipping Info:
| Ship weight (kg) | 1.23 |
| Ship height (cm) | 20.4 |
| Ship length (cm) | 10.49 |
| Ship width (cm) | 20.4 |
