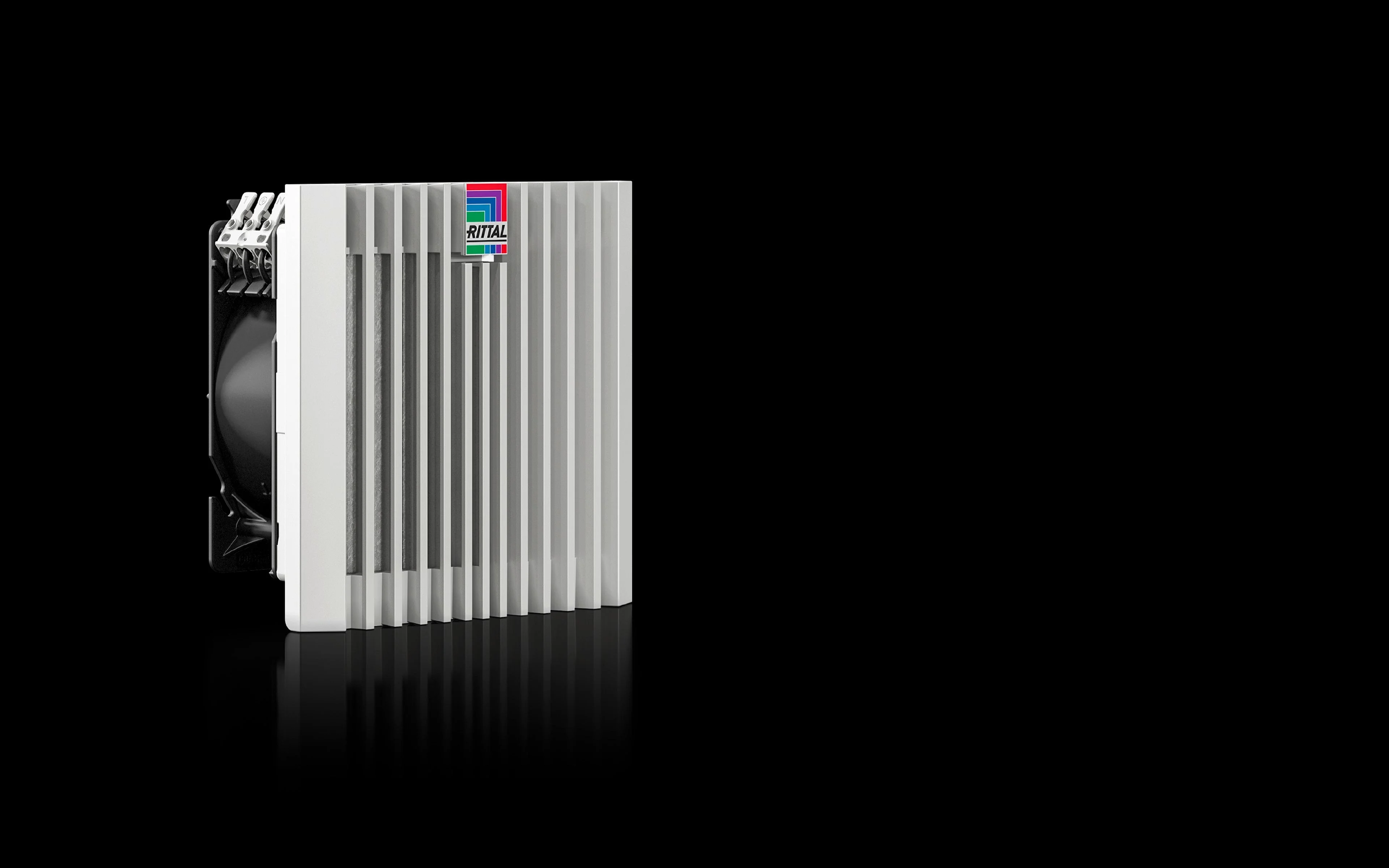

RITTAL SK 3238700 Filter Fan, 63/72 M³/H, 230 V, 1, 50 Hz/60 Hz, 148.5 X 148.5 X 82.5 Mm, Ral 7035
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Filter Fan |
| Airflow With Corresponding Outlet Filter Including Chopped Fiber Filter | 23.54 CFM @ 50 Hz, 27.07 CFM @60 Hz |
| Airflow With Corresponding Outlet Filter Including Pleated Filter | 22.84 CFM @ 50 Hz, 32.37 CFM @ 60 Hz |
| Color | Ral 7035 |
| Depth | 3 1/4" |
| Fan | Axial, Shaded Pole Motor |
| Height | 5.85" |
| Installation Depth | 64 mm |
| Material | Plastic |
| Max. Rated Amps | 0.1A @ 50 Hz, 0.12A @ 60 Hz |
| Miniature Circuit Breaker/fuse Amps | 2A |
| Mounting Cut Out Height | 124 mm |
| Mounting Cut Out Width Of Opening | 124 mm |
| Noise Pressure Level | 52 dBA @ 50 Hz, 54 dBA @ 60 Hz |
| Operating Temp. Range | -15°C to +55°C |
| Rated Operating Voltage | 230V |
| Rated Power Pel | 14.7 W @ 50 Hz, 16.5 W @ 60 Hz |
| Storage Temp. | -30°C to +70°C |
| Unimpeded Air Flow (with Chopped Fiber Filter) | 31.2 CFM @ 50 Hz, 37.7 CFM @ 60 Hz |
| Unimpeded Air Flow (with Pleated Filter) | 37.08 CFM @ 50 Hz, 42.38 CFM @ 60 Hz |
| Width | 5.85" |
Shipping Info:
| Ship weight (kg) | 0.85 |
| Ship height (cm) | 14.86 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 14.86 |
