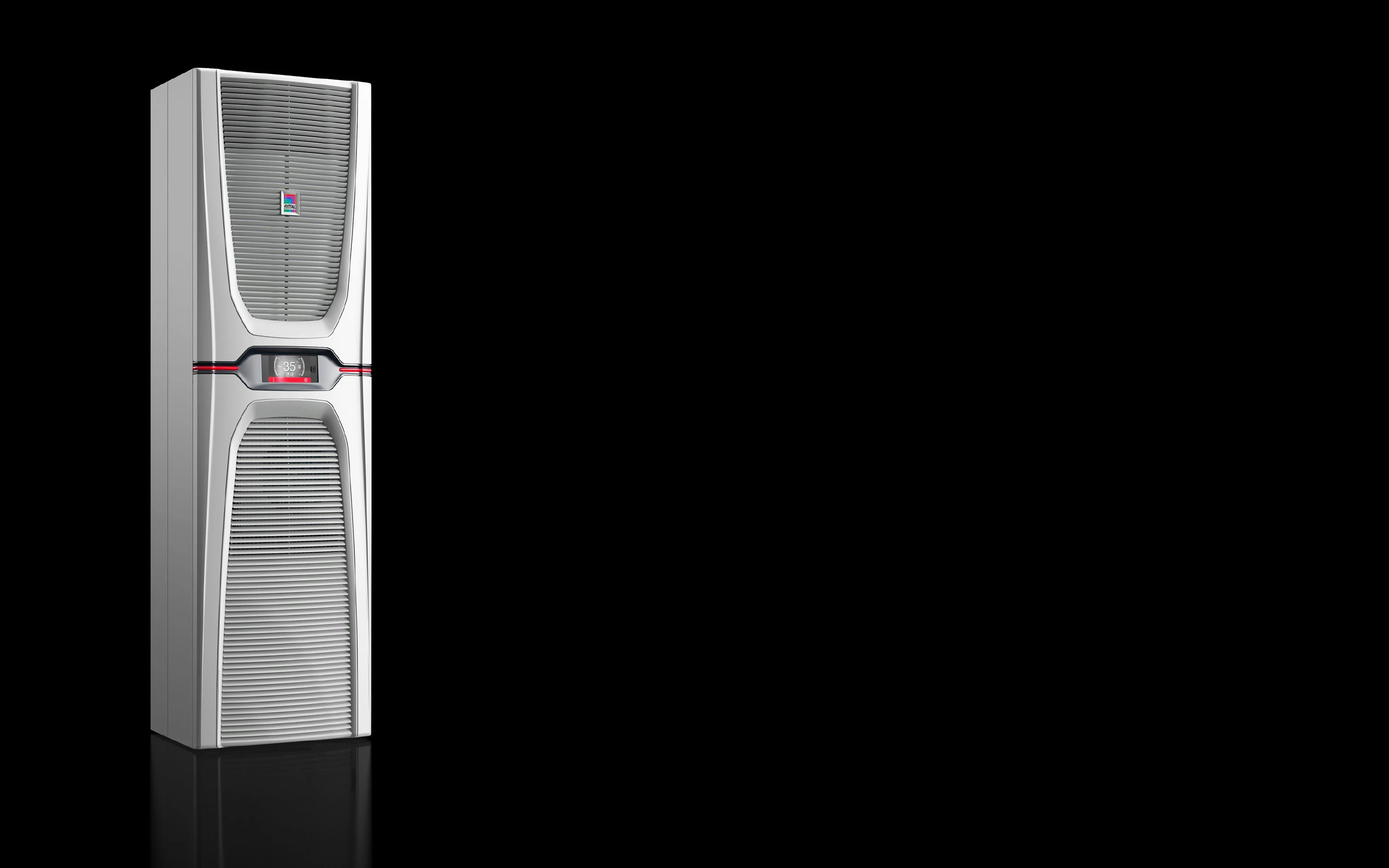

RITTAL SK 3186937 Cooling Unit, Wall-Mounted, 2.0 Kw, 110–240 V, 1, 380–480 V, 3, 50–60 Hz, Sheet Steel, 450 X 1600 X 294 Mm
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Unit |
| Air Throughput External Circuit(unimpeded Air Flow) | 735.7 CFM |
| Applications | For Maritime And Dynamic Applications |
| Color | Ral 7035 |
| Cooling Output L35 L35/50 Hz | 2 kW |
| Cooling Output L35 L35/60 Hz | 2 kW |
| Cooling Output L35 L50/50 Hz | 1.29 kW |
| Cooling Output L35 L50/60 Hz | 1.29 kW |
| Depth | 11 3/5" |
| Height | 63" |
| Hint Construction | Partial Installation Not Possible |
| Material | Carbon Steel |
| Operating Temp. Range | -20°C to +60°C |
| Operating Temp. Range Of Heat Pipe | -20°C to +45°C |
| Operating Temp. Range Of Refrigerant Circuit (active) | 3°C to 60°C |
| Options | For Remote Monitoring And Networking Of Cooling Units And Chillers, Use The Blue EPlus Generation Iot Interface, Item Number 3124.300. Increase Machine Availability And Process Safety By Remote Monitoring Of Device Data, Condition, And System Messages. |
| Permissible Operating Pressure (p. Max.) | 24 Bar |
| Rated Operating Voltage | 110-240/380-480V |
| Rated Output | 0.73 kW |
| Rated Power L35 L35/50 Hz | 0.62 kW |
| Rated Power L35 L35/60 Hz | 0.62 kW |
| Rated Power L35 L50/50 Hz | 0.6 kW |
| Rated Power L35 L50/60 Hz | 0.6 kW |
| Refrigeration Factor L35 L35 (eer) 50 Hz | 3.23 Hz |
| Refrigeration Factor L35 L35 (eer) 60 Hz | 3.23 Hz |
| Required Mounting Cut Out Height | 1579 mm |
| Required Mounting Width Of Opening | 433 mm |
| Seasonal Energy Efficiency Ratio (seer) 50/60 Hz | 7.6 Hz |
| Setting Range | 20°C to 50°C |
| Storage Temp. | -40°C to +70°C |
| Temp. Control | E+ Controller (Factory Setting +35°C) |
| Width | 17.7" |
Shipping Info:
| Ship weight (kg) | 71.78 |
| Ship height (cm) | 160.02 |
| Ship length (cm) | 29.46 |
| Ship width (cm) | 44.96 |
