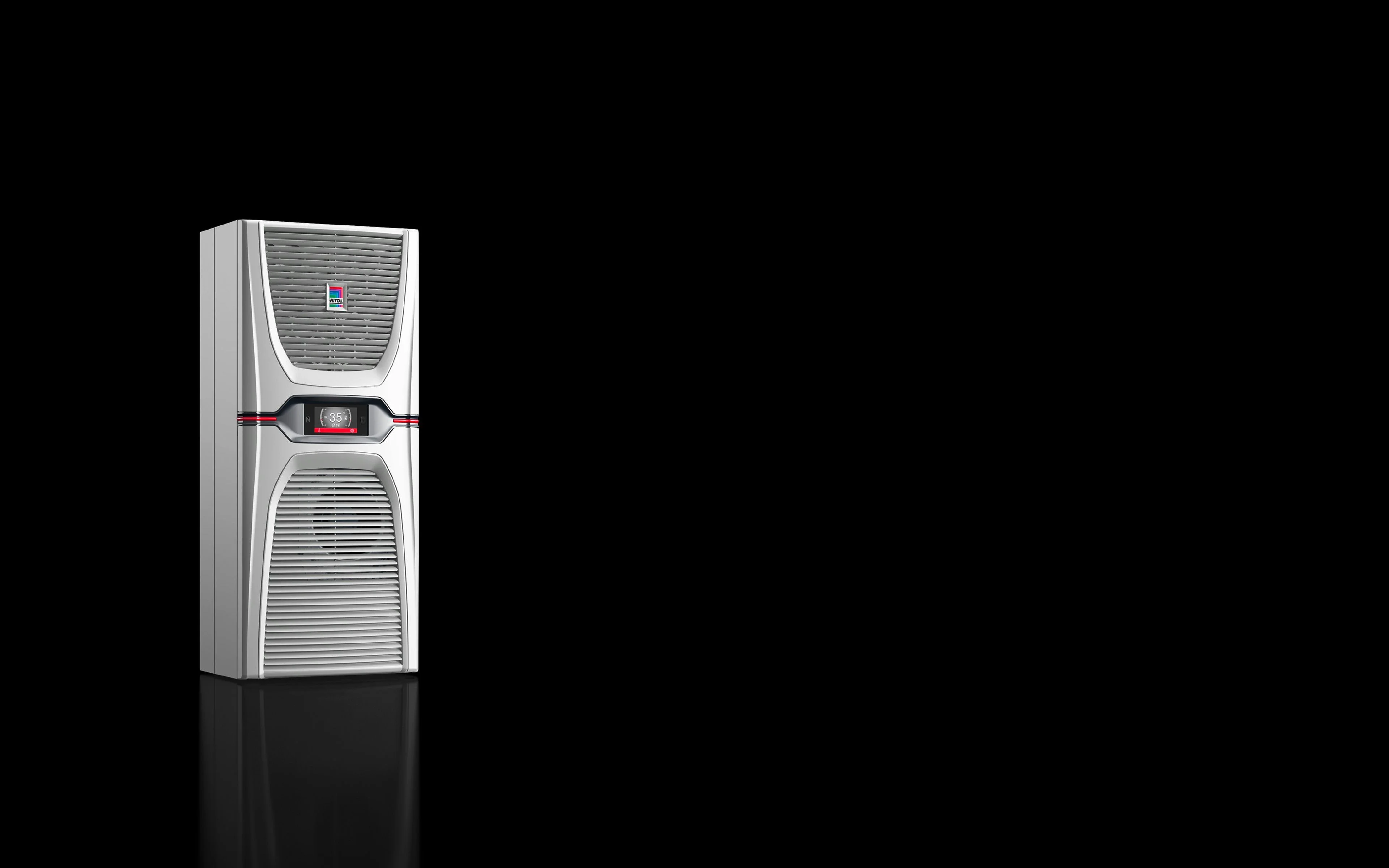

RITTAL SK 3185835 Cooling Unit Chemical, Wall-Mounted, 5459 Btu/H 110-240 V, 1, 380-480 V, 3, 50-60 Hz, Carbon Steel, 400 X 950 X 310 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Unit |
| Air Throughput External Circuit(unimpeded Air Flow) | 526.8 CFM |
| Applications | Applications Where Sulfuric Acid Can Be Present As An Aerosol In The Air (E.G. Paper Industry, Food Industry, Chemical Industry, Electroplating, Offshore Sector) |
| Color | Ral 7035 |
| Cooling Output L35 L35/50 Hz | 1.6 kW |
| Cooling Output L35 L35/60 Hz | 1.6 kW |
| Cooling Output L35 L50/50 Hz | 1.2 kW |
| Cooling Output L35 L50/60 Hz | 1.2 kW |
| Depth | 12 1/5" |
| Height | 37 2/5" |
| Material | Carbon Steel |
| Operating Temp. Range | -20°C to +60°C |
| Operating Temp. Range Of Heat Pipe | -20°C to +45°C |
| Operating Temp. Range Of Refrigerant Circuit (active) | 3°C to 60°C |
| Options | For Remote Monitoring And Networking Of Cooling Units And Chillers, Use The Blue EPlus Generation Iot Interface, Item Number 3124.300. Increase Machine Availability And Process Safety By Remote Monitoring Of Device Data, Condition, And System Messages. |
| Permissible Operating Pressure (p. Max.) | 24 Bar |
| Rated Operating Voltage | 110-240/380-480V |
| Rated Output | 0.7 kW |
| Rated Power L35 L35/50 Hz | 0.54 kW |
| Rated Power L35 L35/60 Hz | 0.54 kW |
| Rated Power L35 L50/50 Hz | 0.61 kW |
| Rated Power L35 L50/60 Hz | 0.61 kW |
| Refrigeration Factor L35 L35 (eer) 50 Hz | 2.96 Hz |
| Refrigeration Factor L35 L35 (eer) 60 Hz | 2.96 Hz |
| Required Mounting Cut Out Height | 929 mm |
| Required Mounting Width Of Opening | 383 mm |
| Seasonal Energy Efficiency Ratio (seer) 50/60 Hz | 5.5 Hz |
| Setting Range | 20°C to 50°C |
| Storage Temp. | -40°C to +70°C |
| Surface Finish | Carbon Steel Parts And Electronics Spray Finished With Clear Lacquer Cooling Circuit Painted With 2 K Pur Paint |
| Temp. Control | E+ Controller (Factory Setting +35°C) |
| Width | 15.7" |
Shipping Info:
| Ship weight (kg) | 46.04 |
| Ship height (cm) | 95 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 39.88 |
