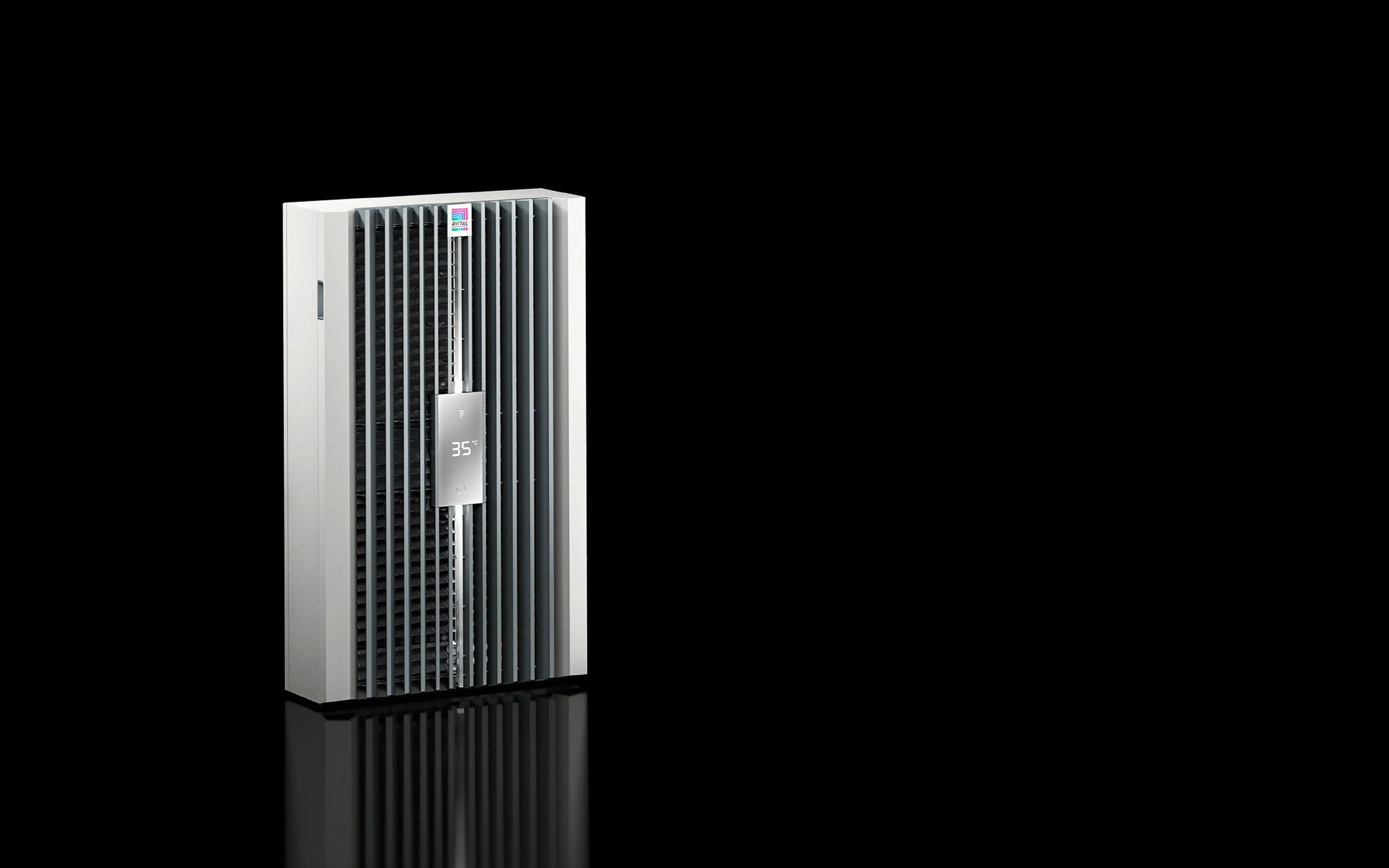

RITTAL SK 3178801 Cooling Unit, Wall-Mounted, 1024 Btu/H 110-240 V, 1, 50-60 Hz, Carbon Steel, 300 X 570 X 159 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cooling Unit |
| Air Throughput External Circuit(unimpeded Air Flow) | 215.8 CFM |
| Cooling Output L35 L35/50 Hz | 0.3 kW |
| Cooling Output L35 L35/60 Hz | 0.3 kW |
| Cooling Output L35 L50/50 Hz | 0.22 kW |
| Cooling Output L35 L50/60 Hz | 0.22 kW |
| Depth | 6.26" |
| General Color | RAL 7035 |
| Height | 22 2/5" |
| Housing Color | Ral 7035 |
| Louvered Grille Color | Ral 7012 |
| Material | Carbon Steel |
| Operating Temp. Range | -20°C to +60°C |
| Operating Temp. Range Of Heat Pipe | -20°C to +45°C |
| Operating Temp. Range Of Refrigerant Circuit (active) | 3°C to 60°C |
| Options | For Remote Monitoring And Networking Of Cooling Units And Chillers, Use The Blue EPlus Generation Iot Interface, Item Number 3124.300. Increase Machine Availability And Process Safety By Remote Monitoring Of Device Data, Condition, And System Messages. |
| Permissible Operating Pressure (p. Max.) | 32 Bar |
| Rated Operating Voltage | 110-240V |
| Rated Output | 0.22 kW |
| Rated Power L35 L35/50 Hz | 0.15 kW |
| Rated Power L35 L35/60 Hz | 0.15 kW |
| Rated Power L35 L50/50 Hz | 0.18 kW |
| Rated Power L35 L50/60 Hz | 0.18 kW |
| Refrigeration Factor L35 L35 (eer) 50 Hz | 2.01 Hz |
| Refrigeration Factor L35 L35 (eer) 60 Hz | 2.01 Hz |
| Required Mounting Cut Out Height | 550 mm |
| Required Mounting Width Of Opening | 280 mm |
| Setting Range | 20°C to 50°C |
| Storage Temp. | -40°C to +70°C |
| Temp. Control | E+ Controller (Factory Setting +35°C) |
| Width | 11 4/5" |
Shipping Info:
| Ship weight (kg) | 13.07 |
| Ship height (cm) | 56.9 |
| Ship length (cm) | 15.9 |
| Ship width (cm) | 29.97 |
