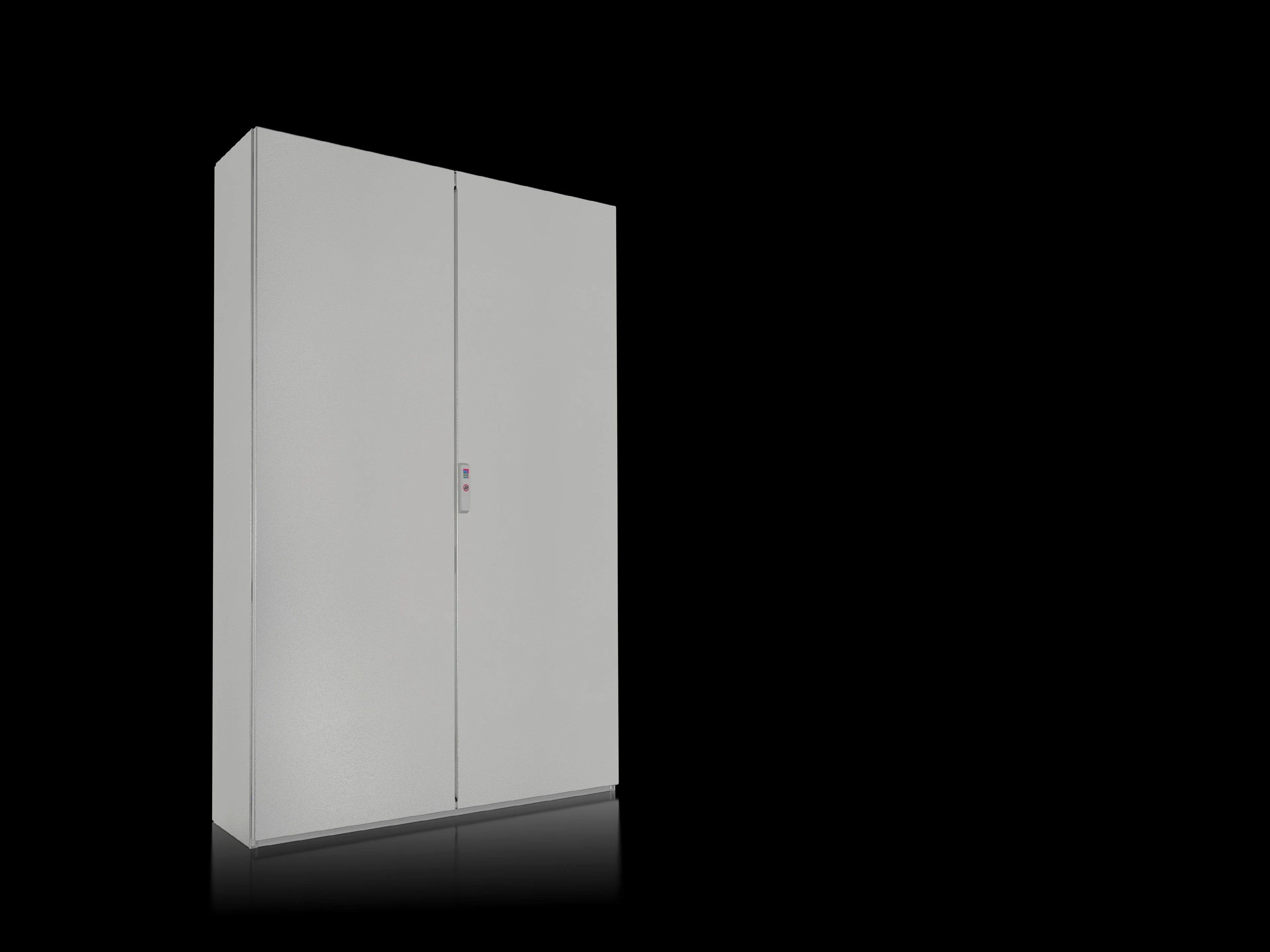

RITTAL SE 5824600 System Single Enclosure, 1800X1200X300 Mm, Carbon Steel, With Mounting Plate, Two Doors On Front Side
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Material | Carbon Steel |
| Color | Ral 7035 |
| Depth | 11 4/5" |
| Height | 70.9" |
| Material | Housing: Carbon Steel, 1.5 Mm Door: Carbon Steel, 2.0 Mm Rear Wall: Carbon Steel, 1.5 Mm Base Plates: Carbon Steel, 1.5 Mm Mounting Panel: Carbon Steel, 3.0 Mm |
| Mounting Plate Height | 1696 mm |
| Mounting Plate Width | 1099 mm |
| No. Of Doors | 2 |
| No. Of Locks | 2 |
| Pcf/ve (cradle To Gate) | 643.9 Kg CO2 Eq (Cat B) |
| Surface Finish | Housing, Door And Rear Panel: Dipcoat Primed, Powder Coated On The Outside, Textured Paint Mounting Plate And Base Plates: Zinc Plated |
| Type Rating According To Ul 50e | Type 1, Type 2, Type 3, Type 3R, Type 12 |
| Width | 47 1/5" |
Shipping Info:
| Ship weight (kg) | 166.91 |
| Ship height (cm) | 180.09 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 119.89 |
