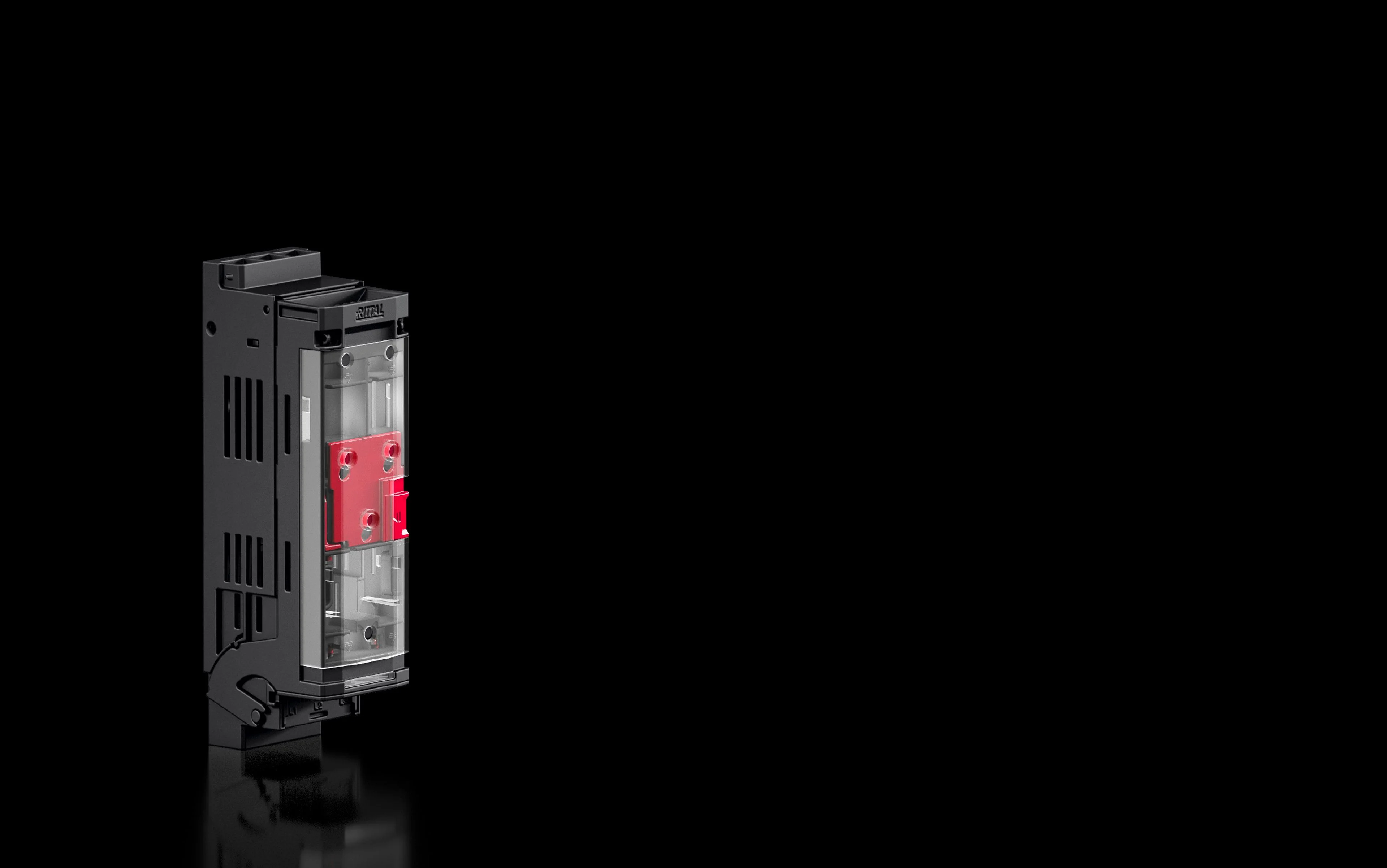

RITTAL RX 9363420 Fuse-Switch-Disconnector, Size 000, 3-Pole, Box Terminal
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005, RAL 35745 |
| Connection For Round Conductor | 1.5 sq. mm x 16 sq. mm |
| Connection Of Round Conductors, Fine Wire With Wire End Ferrule | 1.5 sq. mm to 50 sq. mm |
| Connection Of Round Conductors, Fine Wire Without Wire End Ferrule | 1.5 sq. mm to 16 sq. mm |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 0.26 Kg |
| Depth | 3.15" |
| Fire Load | 7.29 MJ/sq. m |
| For Mounting Plate Assembly | Yes |
| For Nh Size | 0 |
| Height | 8 1/2" |
| Material | Polyamide (Pa 6) Fire Behavior Corresponding To UL 94 Contact Tracks: Electrolytic Copper, Silver-Plated |
| Max. Heat Loss Per Fuse Insert | 9 W |
| Max. Power Loss | 26 W |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +35°C |
| Rated Insulation Voltage | 1000 kV |
| Rated Operating Voltage | 690V AC |
| Round Conductor Cross Section | 1.5 sq. mm to 16 sq. mm |
| Storage Temp. | -25°C to +70°C |
| Type Of Connection (electrical) | Box Terminal |
| Width | 2.09" |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 8 |
| Ship width (cm) | 5.31 |
