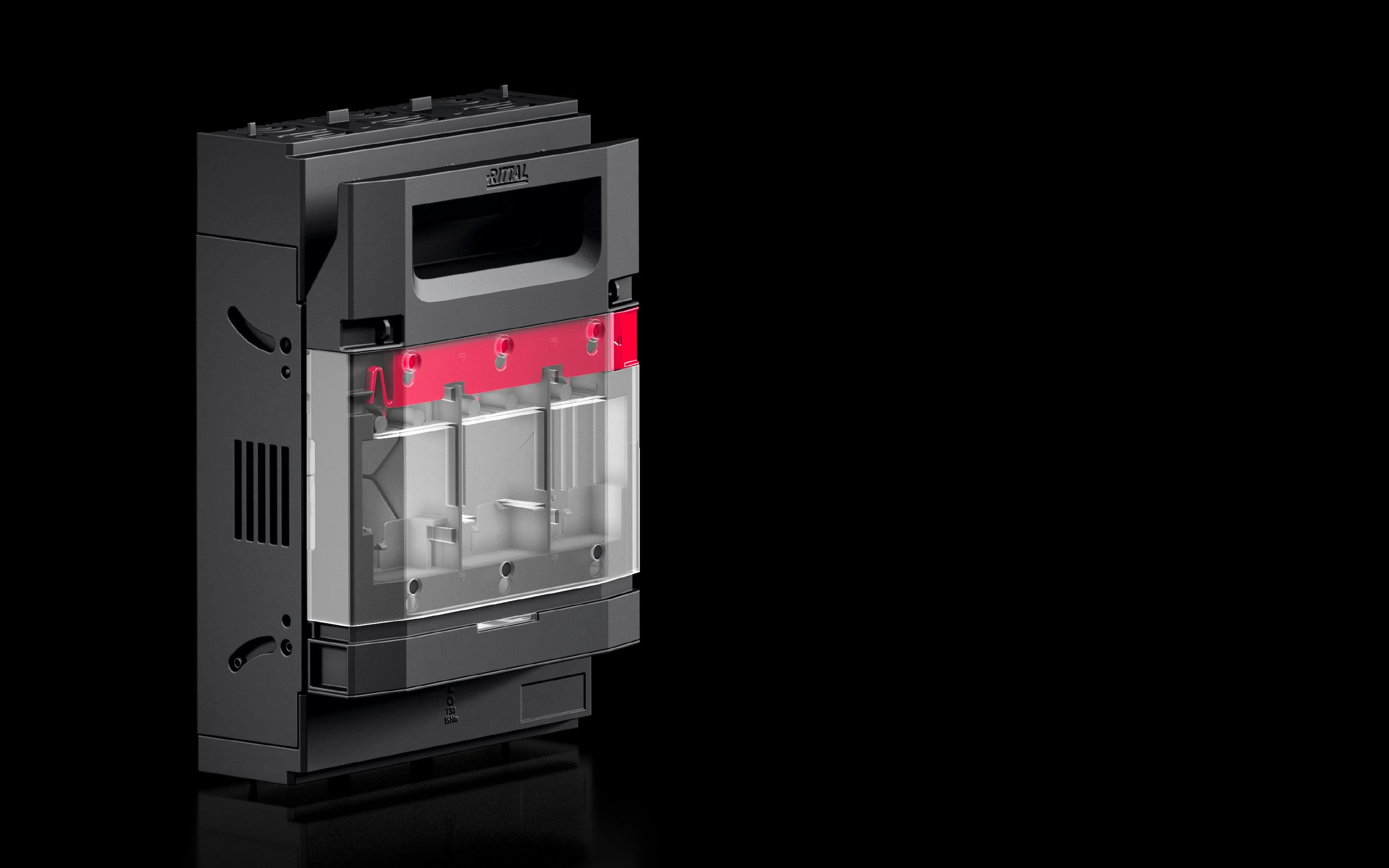

RITTAL RX 9362250 Fuse-Switch-Disconnector, Size 2, 400 A, 3-Pole, Box Terminal

Item: ED4MRUModel: RX 9362250

In Stock

Get it by Tuesday, Aug 25

Request a Quote

Payment

Delivery

Product Specifications:

Item	Fuse Switch Disconnector
Cable Outlet Type	Top, Bottom
Color	RAL 9005, RAL 35745
Connection Of Round Conductors, Fine Wire With Wire End Ferrule	35 sq. mm to 240 sq. mm
Connection Of Round Conductors, Fine Wire Without Wire End Ferrule	35 sq. mm to 240 sq. mm
Contamination Level	3
Copper Weight (per Piece)	1.75 Kg
Depth	5.3"
Fire Load	50.96 MJ/sq. m
For Bar Systems With Center To Center Spacing	60 mm
For Nh Size	2
Height	11 4/5"
Material	Polyamide (Pa 6) Fire Behavior Corresponding To UL 94 Contact Tracks: Electrolytic Copper, Silver-Plated
Max. Power Loss	98 W
Max. Rated Amps	400A
Max. Rated Operating Current	400A
No. Of Poles	3
Operating Temp. Range	-5°C to +35°C
Rated Operating Voltage	690V AC
Storage Temp.	-25°C to +70°C
Suitable For Busbar System	RiLineX', 'RiLine60
Suitable For Busbars	15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm
Type Of Connection (electrical)	Box Terminal
Width	8.21"
