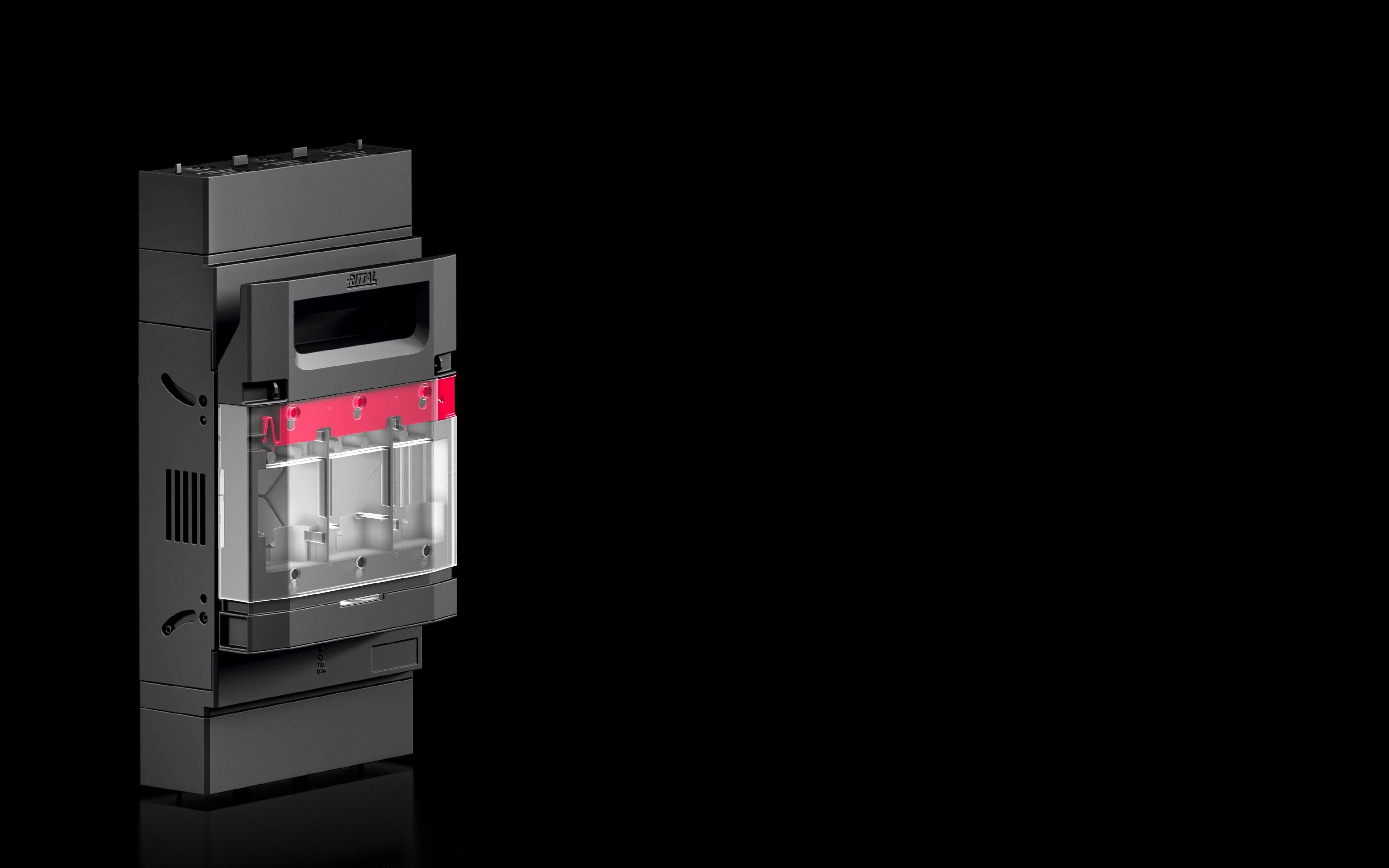

RITTAL RX 9362115 Fuse-Switch-Connector Size 1, 250 A, 3-Pole, M10 Screw, With Fuse Monitoring 800 V
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005, RAL 35745 |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 0.8 Kg |
| Depth | 4.59" |
| Fire Load | 36.19 MJ/sq. m |
| For Bar Systems With Center To Center Spacing | 60 mm |
| For Nh Size | 1 |
| Height | 13.7" |
| Material | Polyamide (Pa 6) Fire Behavior Corresponding To UL 94 Contact Tracks: Electrolytic Copper, Silver-Plated |
| Max. Heat Loss Per Fuse Insert | 23 kW |
| Max. Power Loss | 51 W |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +35°C |
| Rated Operating Voltage | 690V |
| Screw Size | M10 |
| Storage Temp. | -25°C to +70°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Width | 7.15" |
| With Electronic Fuse Monitoring | Yes |
Shipping Info:
| Ship weight (kg) | 2.7 |
| Ship height (cm) | 34.8 |
| Ship length (cm) | 11.66 |
| Ship width (cm) | 18.16 |
