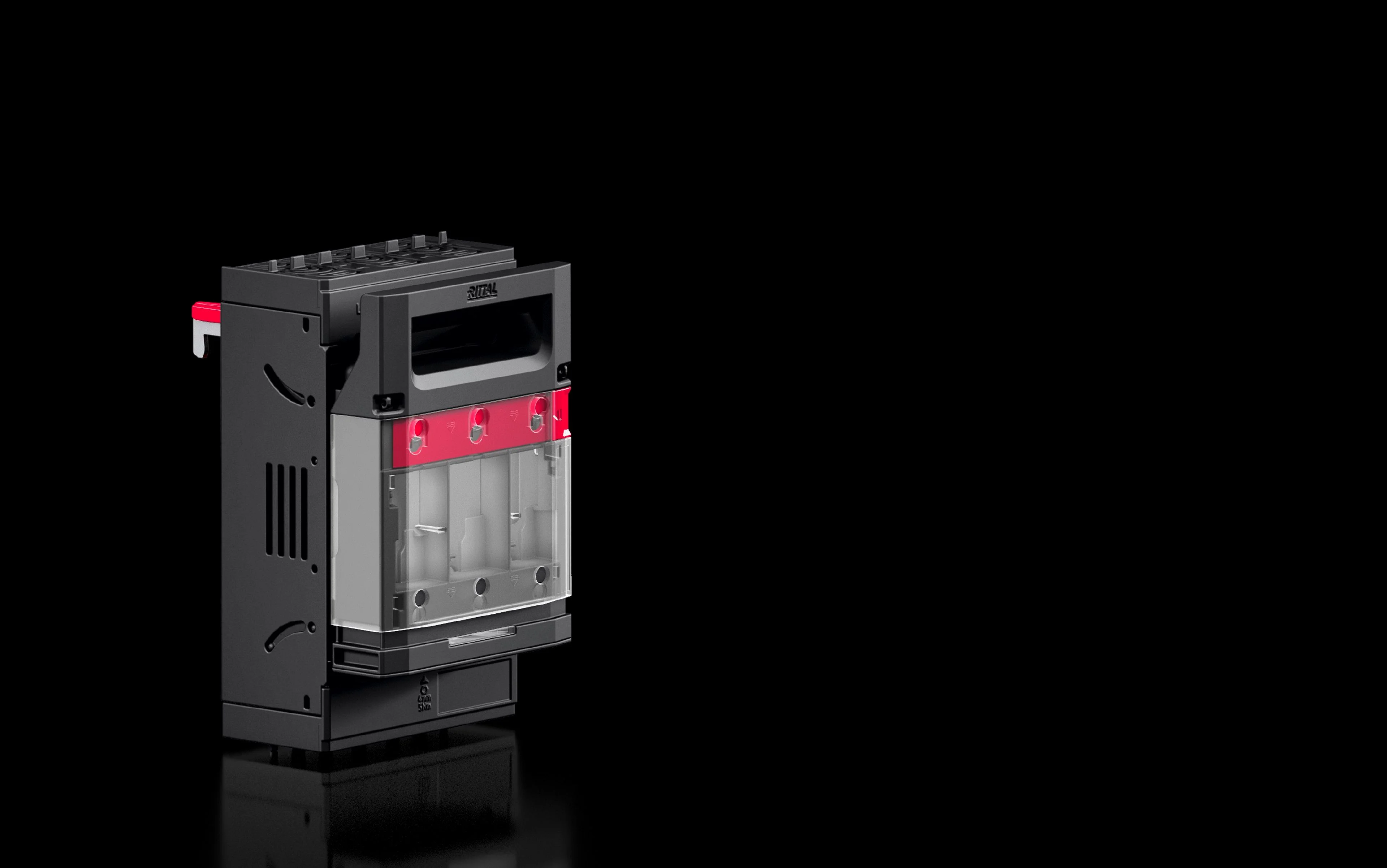

RITTAL RX 9362030 Fuse-Switch-Disconnector, Size 00, 160 A, 3-Pole, Box Terminal
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005, RAL 35745 |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 0.409 Kg |
| Depth | 4.11" |
| Fire Load | 14.2 MJ/sq. m |
| For Bar Systems With Center To Center Spacing | 60 mm |
| For Nh Size | 0 |
| Height | 7.65" |
| Material | Polyamide (Pa 6) Fire Behavior Corresponding To UL 94 Contact Tracks: Electrolytic Copper, Silver-Plated |
| Max. Heat Loss Per Fuse Insert | 12 W |
| Max. Power Loss | 22 W |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +35°C |
| Rated Insulation Voltage | 1000V |
| Rated Operating Voltage | 690V AC |
| Storage Temp. | -25°C to +70°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Type Of Connection (electrical) | Box Terminal |
| Width | 4.17" |
Shipping Info:
| Ship weight (kg) | 1.03 |
| Ship height (cm) | 19.43 |
| Ship length (cm) | 10.44 |
| Ship width (cm) | 10.59 |
