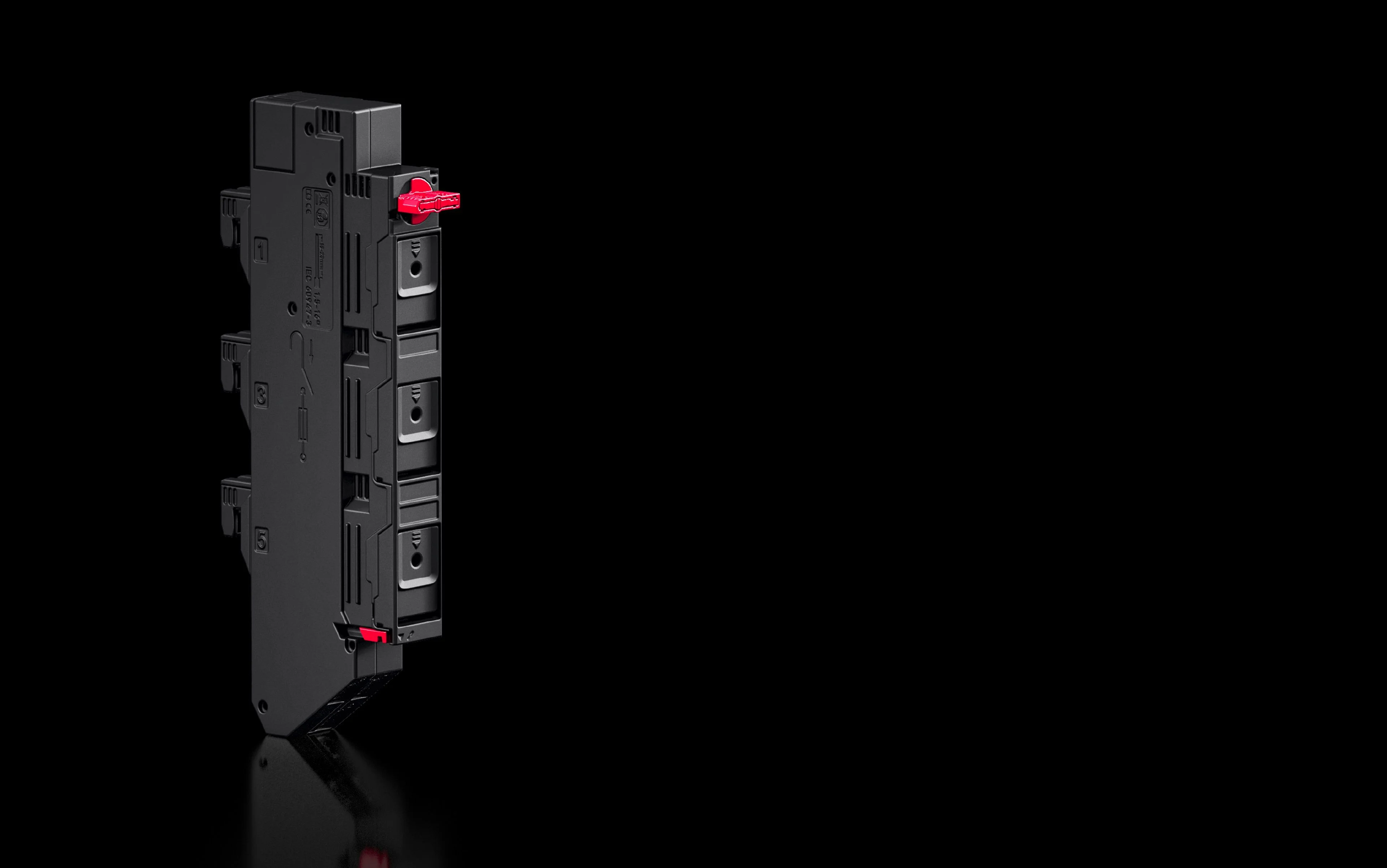

RITTAL RX 9360825 Fuse Switch Disconnector 63 A, 3-Pole, With Led, W 27 Mm (D-Switch)
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Cable Outlet | Bottom |
| Connection For Round Conductor | 16 sq. mm |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 0.105 Kg |
| Depth | 4.1" |
| Fuse Inserts | D 02-E 18 |
| General Color | RAL 35745, RAL 9005 |
| Grade | Grade PA6 |
| Height | 10 2/5" |
| Material | Polyamide |
| Max. Operating Air Humidity | 90% |
| Max. Power Loss | 5.5 W |
| Max. Rated Amps | 63A |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Insulation Voltage | 800V |
| Storage Temp. | -25°C to +75°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Type Of Connection (electrical) | Spring Terminal |
| Width | 1.06" |
Shipping Info:
| Ship weight (kg) | 1.77 |
| Ship height (cm) | 26.42 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 2.69 |
